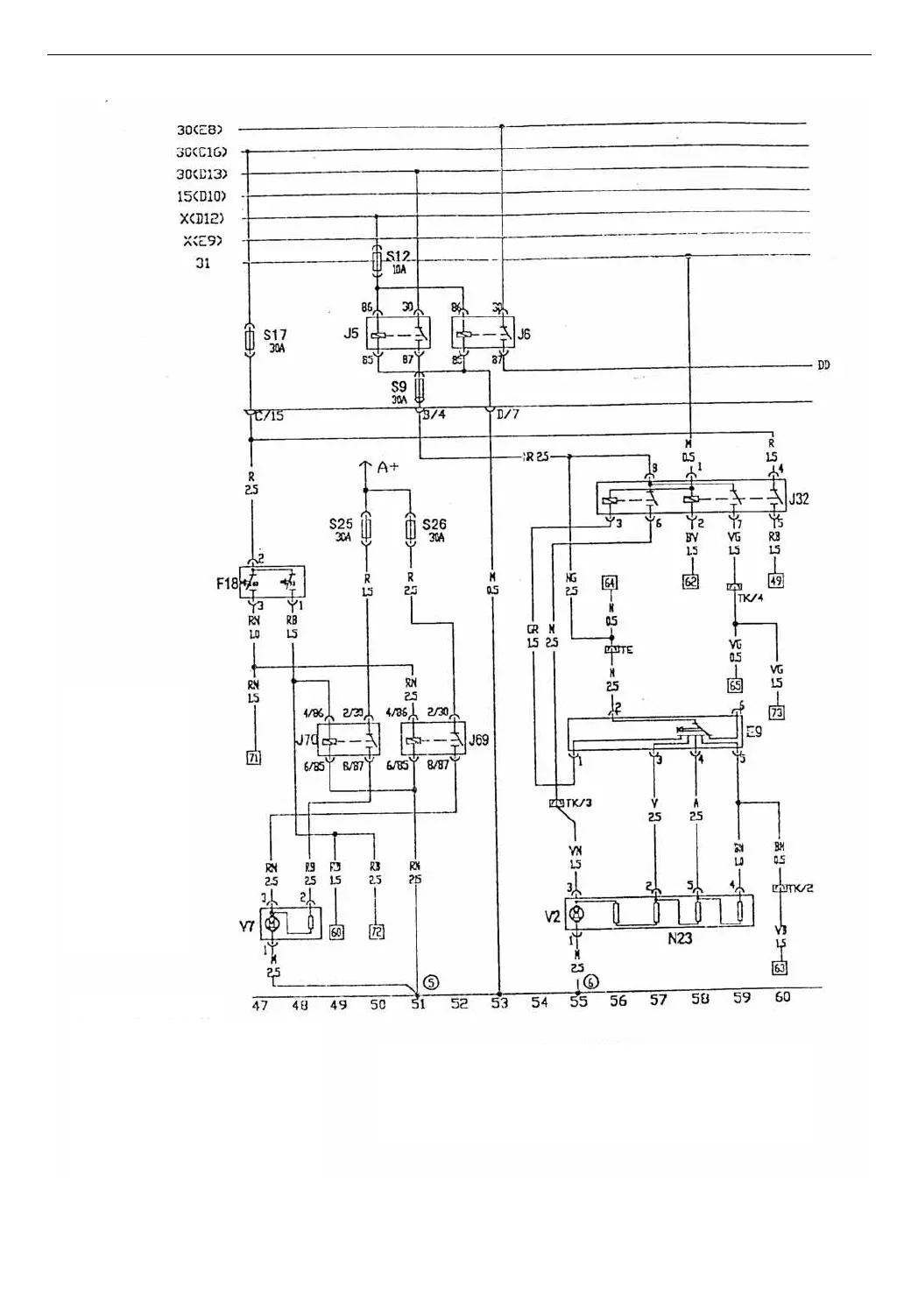

Chery A11 2003 - A;C Unit, Control Head, Cooling System

CIRCUIT
A/C Unit, Control Head, Cooling System
B=White
N
=Black
R=Red
M=Brown
V=Green
A=Blue
H=Grey
Z=Purple
G=Yellow
A+ battery positive
E9 blower switch
F18 thermo switch
N
23 blower in-line speed
regulator resistance
V2 blower
V7 fan motor
J32 A/C relay
J69 Cooling fan high speed relay
J70 Coolin
g
fan low s
p
eed rela
y
J5 A/C blower relay (in electrical box)
J6 Rear Window preheat relay
○
5 ground, in wiring harness in boot I
○
6 ground, on ground carrier beside central electrical box
3
