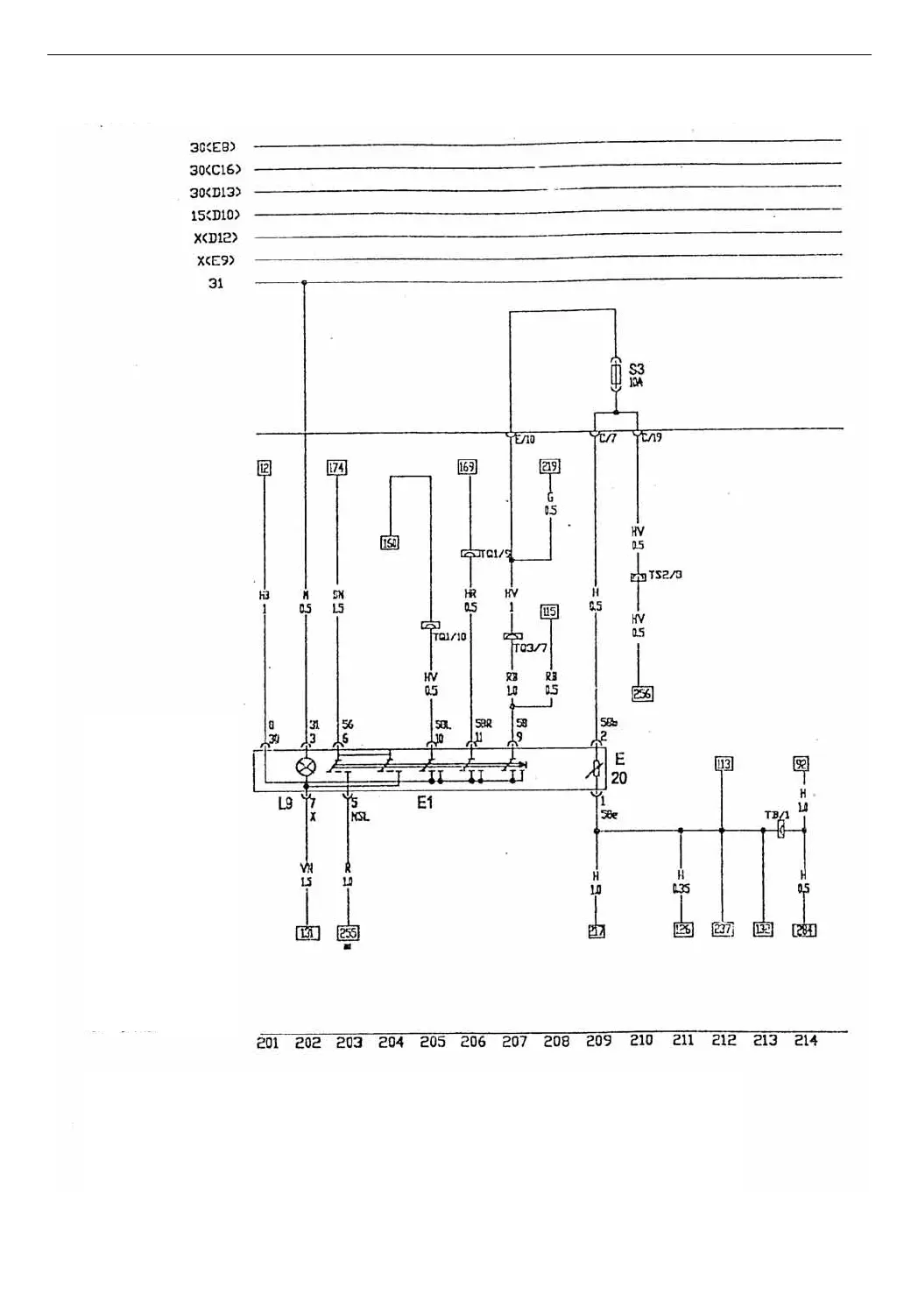

CIRCUIT
LIGHT SWITCH
B=WHITE
N
=BLAC
K
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
E1 Light Switch
E20 Panel indicator / instruments illumination light variable resistance
L9 Panel indicator
S3 Fuse 10A
14
