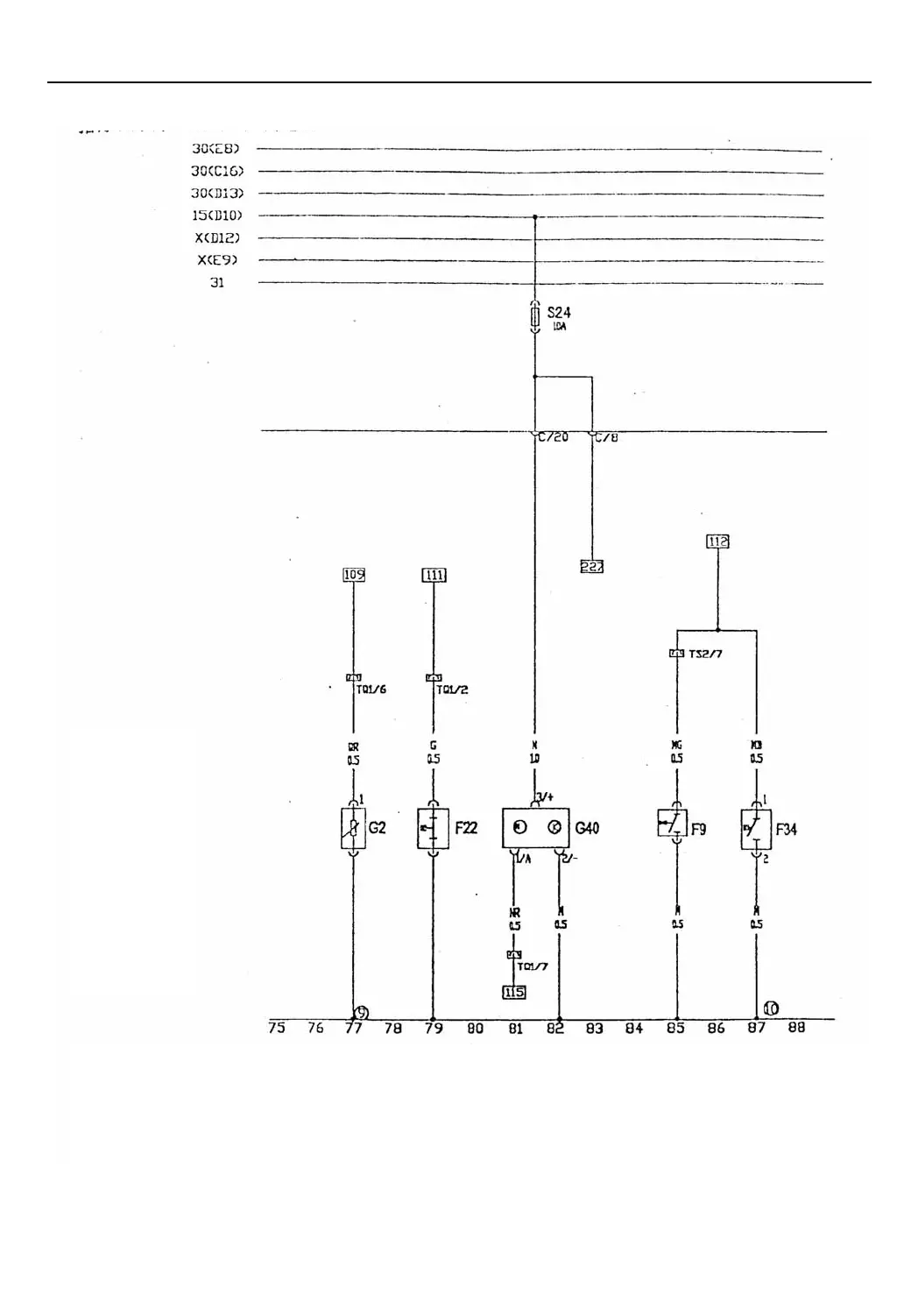

CIRCUIT
OIL PRESSURE SWITCH, COOLANT TEMPERATURE SENSOR, MANUAL BRAKE
INDICATOR SWITCH, ODOMETER SENSOR
B=WHITE
=BLAC
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
G2 Coolant temperature sensor
○
9 ground, on engine cylinder
F22 Oil pressure switch (low pressure)
○
10 ground connection, in headlight wiring harness
F9 Manual brake indicator switch TQ1 10 holes connector
F34 Brake fluid level warning switch TS2 10 holes match connector
G40 odometer sensor
