Disassembly and Assembly of Transmission

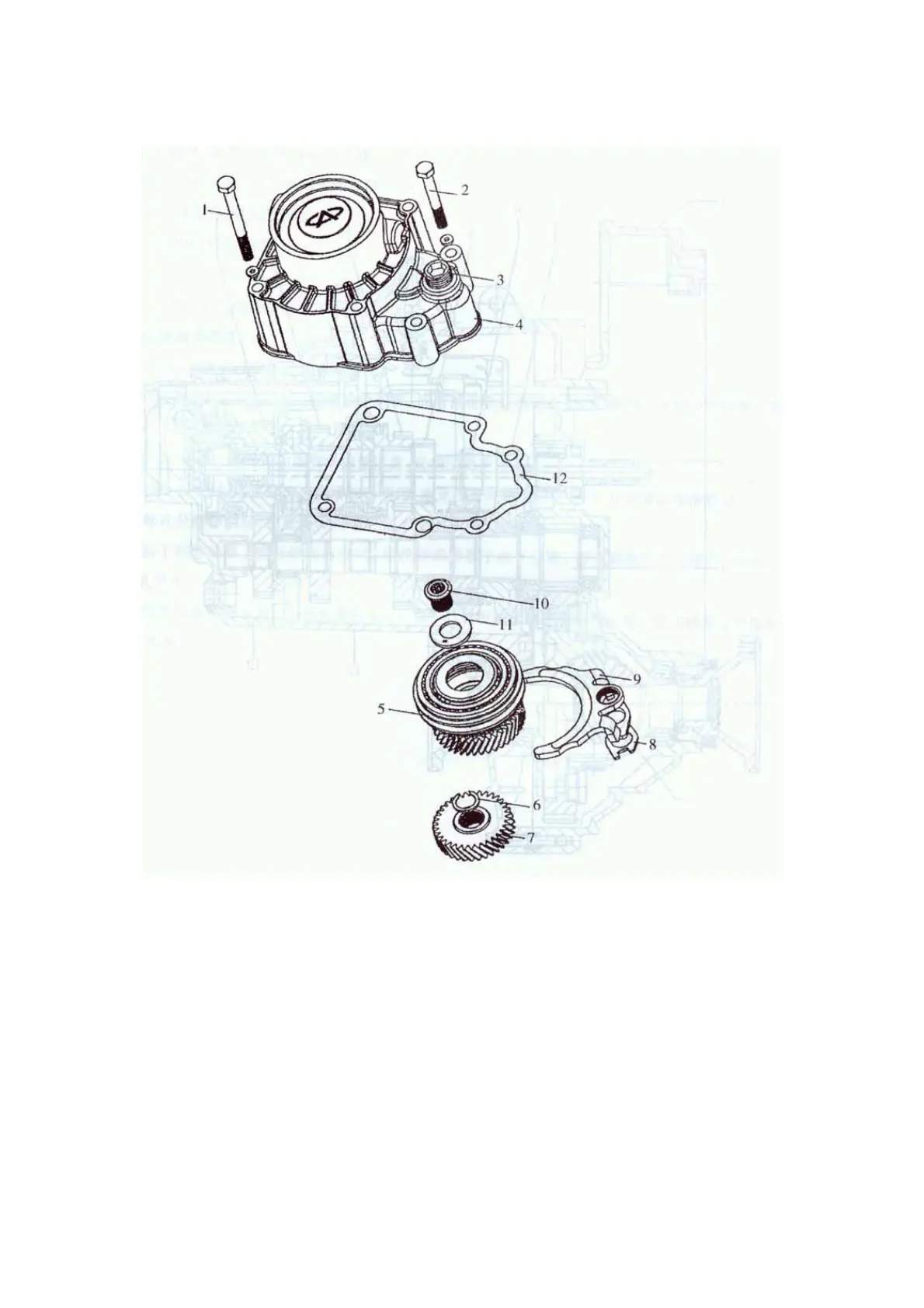

1.
Fastening screw CQ1500885 (4 pieces with torque at 25 Nm) 2. Fastening screw CQ1500865 (2 pieces with torque at 25 Nm)
3. Draining plug 4. Rear housing of transmission
5. Gear-5 synchronizer assembly 6. Gear-5 driven gear snap ring
7. Gear-5 driven gear 8. Gear-5 fork locking board
9. Gear-5 fork assembly 10. Gear-5 toothholder fastening turnbuckle
11. Disk gasket 12. Gasket
