SPI Electronic Injection (Marelli)
B=White
N
=Black
R=Red
M=Brown
V=Green
A=Blue
H=Grey
Z=Purple
G=Yellow
J=Orange
F=Pink

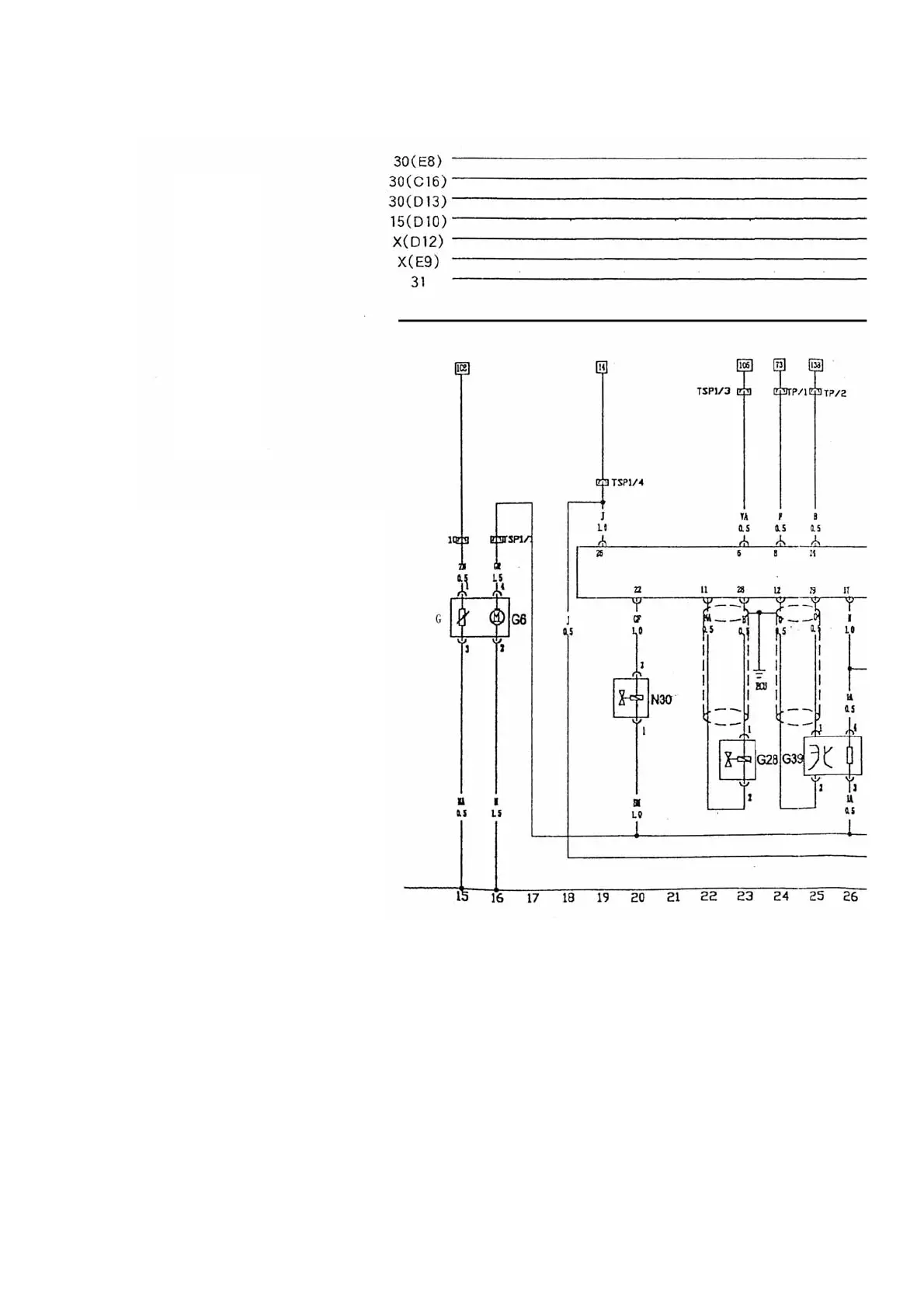

J200 SPI controller unit
G42 Air Intake Temperature Sensor
G62 Water Temperature Sensor
G69 Throttle Position Sensor
G19 Air Intake Pressure Sensor
N
30 Active Carbon Canister Solenoid
G28 Crankshaft Position Sensor
G39 Oxygen Sensor
G35 System Fuse
S36 Oil Pump Fuse
A+ Battery Positive
J176 ECU Relay
J17 Power Relay
N
1 Cylinder 1—4 Ignition Coil
N
2 Cylinder 2---3 Ignition Coil
Q Spark Plug
N
80 Fuel Injecto
r
G Fluid Level Sensor
G6 Fuel Pump
TK Diagnostic Socket
(4) Ground On Engine
Ground point
