Repair

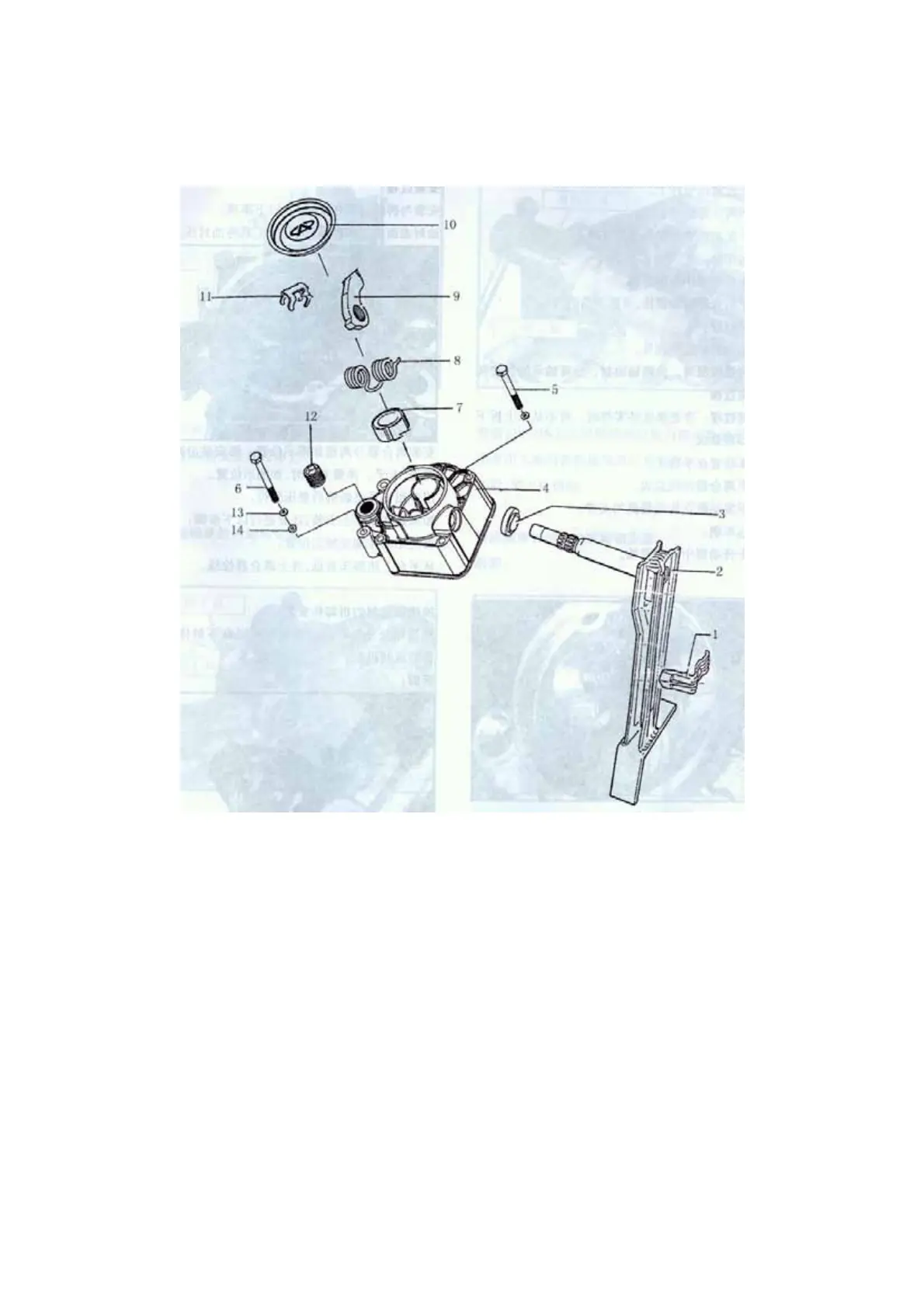

Repair of Rear Housing
1. Snap ring—separate arm
2. Separate arm assy.
3. Oil seal assy.—separate shaft
4. Rear housing—transmission
5. Fastening screw (CQ1500885)
6. Fastening screw of rear housing (CQ1500865)
7. Separate shaft of clutch
8. Release spring
9. Separate pawl of clutch
10. Rear cover
11. Fixing clip
12. Draining screw plug
13. Flap washer
14. Spring washer
