CAC Gasoline Engine Maintenance And Servicing Manual
66

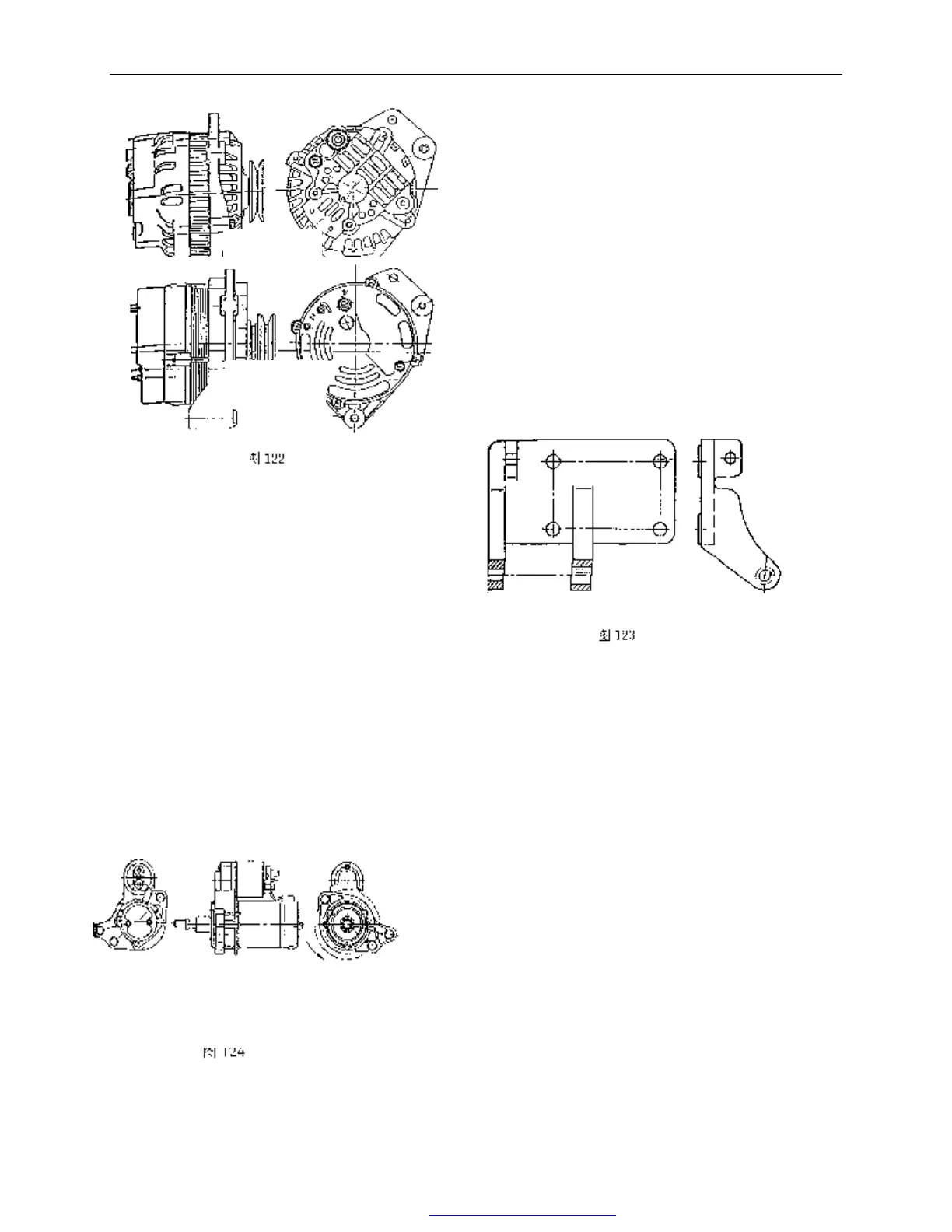

The JFZ1913—4 alternator for independent assembly.
The JFZ18D13 ZB alternator for independent assembly.
The
alternator bracket for independent assembly.
2. Starter.
Rated output: 0.95kW
Speed range: 1000-1800r/min
Voltage: 12V
Type: QDY1258
SD6RA78
——the flywheel gear ring for vehicle and the one for
independent engine assembly are different and also the starter
gear modulus are different ,, so different starters need to be
applied..
——The left
figure indicates SD6RA78.
——The
tightening torque for bolt installation is
40±4Nm.
Fig. 121
Fig. 122
Fig. 123
Fig. 124
