CAC Gasoline Engine Maintenance And Servicing Manual
69
——Loosen and remove two M6× 20 bolts.
——Remove the distributor.
——remove the distributor’s “O “seal.
Assembly:
——Insure that the engine is set correctly with No.1 Cylinder
at TDC.
——install new “O” seal.
——Rotate distributor to align the lug with the No. 1 cylinder
TDC mark on the distributor flange. install the distributor
inserting the lug into the camshaft groove.
——Rotate distributor to align the mark on distributor flange
with the mark on cylinder head.
——Tighten two bolts to 5.0—7.0Nm.
6. High tension ignition wire assembly:
The high tension ignition wire assembly is mounted on the
cylinder wire bracket which is installed on the valve cover ,
also cylinder wire and coil wire clips exist between the
distributor and cylinder wires bracket.

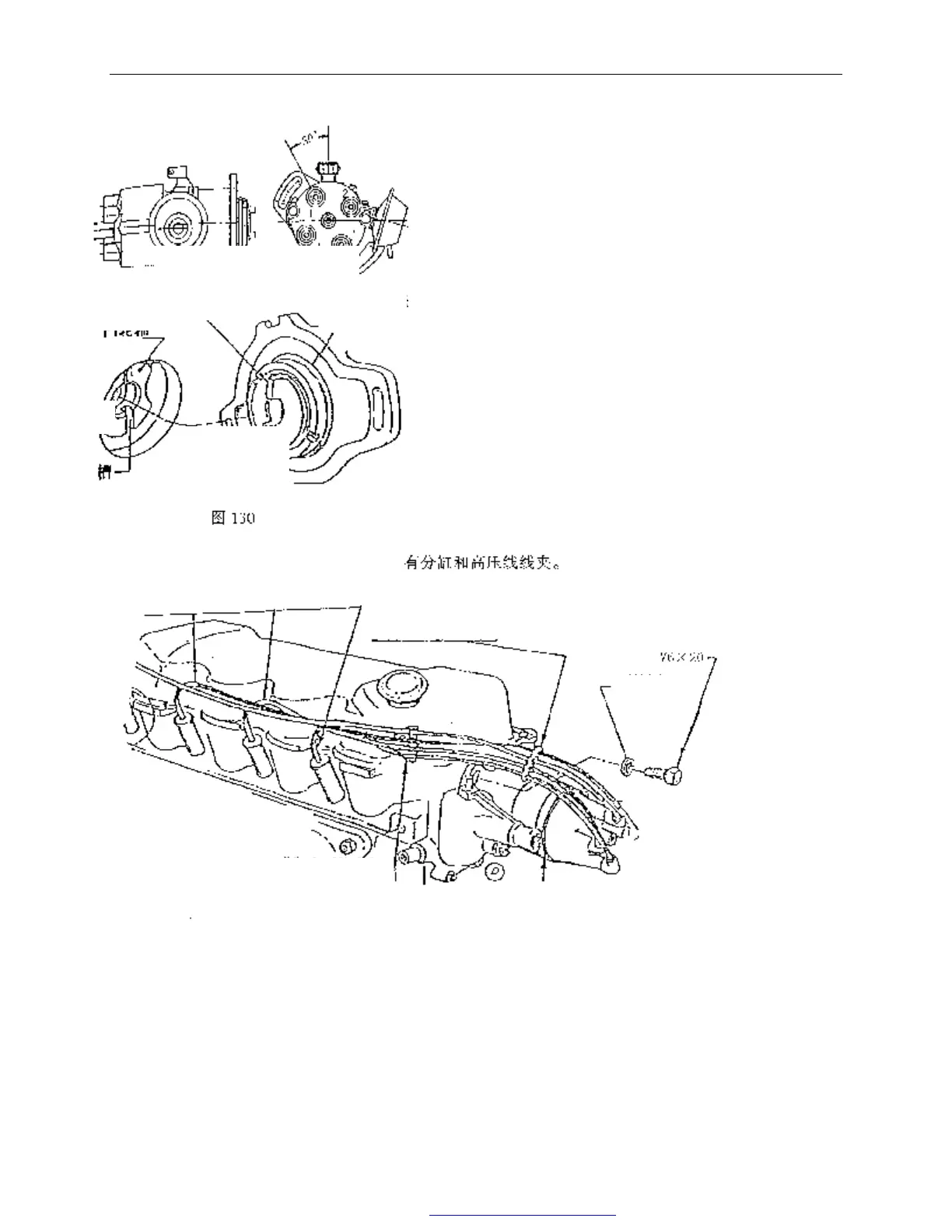

Fig. 129 distributor assembly
groove
camshaft
tongue
TDC mark
Fig. 130
Fig. 131
Slave cylinder and high pressure wiring harness
Flat washer
bolt
Slave cylinder and high pressure
