CAC Gasoline Engine Maintenance And Servicing Manual
105
tightening torque 0.5—0.6Nm
at ambient temperature, The resistance indicated by
digital multimeter should be 2.5—4.5Ω.
Note: Even though little lead exists in the fuel, the
sensor may fail soon. the function inspection is specified
every 45,000km and 90,000km.
The throttle valve cable adjustment
Adjust the throttle cable according to the following:
—— Loosen two lock nuts(2)，hexagonal lever(3) is retained in the protective sleeve
—— tighten or loosen hexagonal lever (3) to adjust the end position of protective boot (4) insuring the cable
(1) is not too loose or too tight when pedal is released.
—— tighten the two lock nuts (2) in the hexagonal lever (3)
—— depress accelerator pedal fully. Check for throttle valve operation while it is fully open.

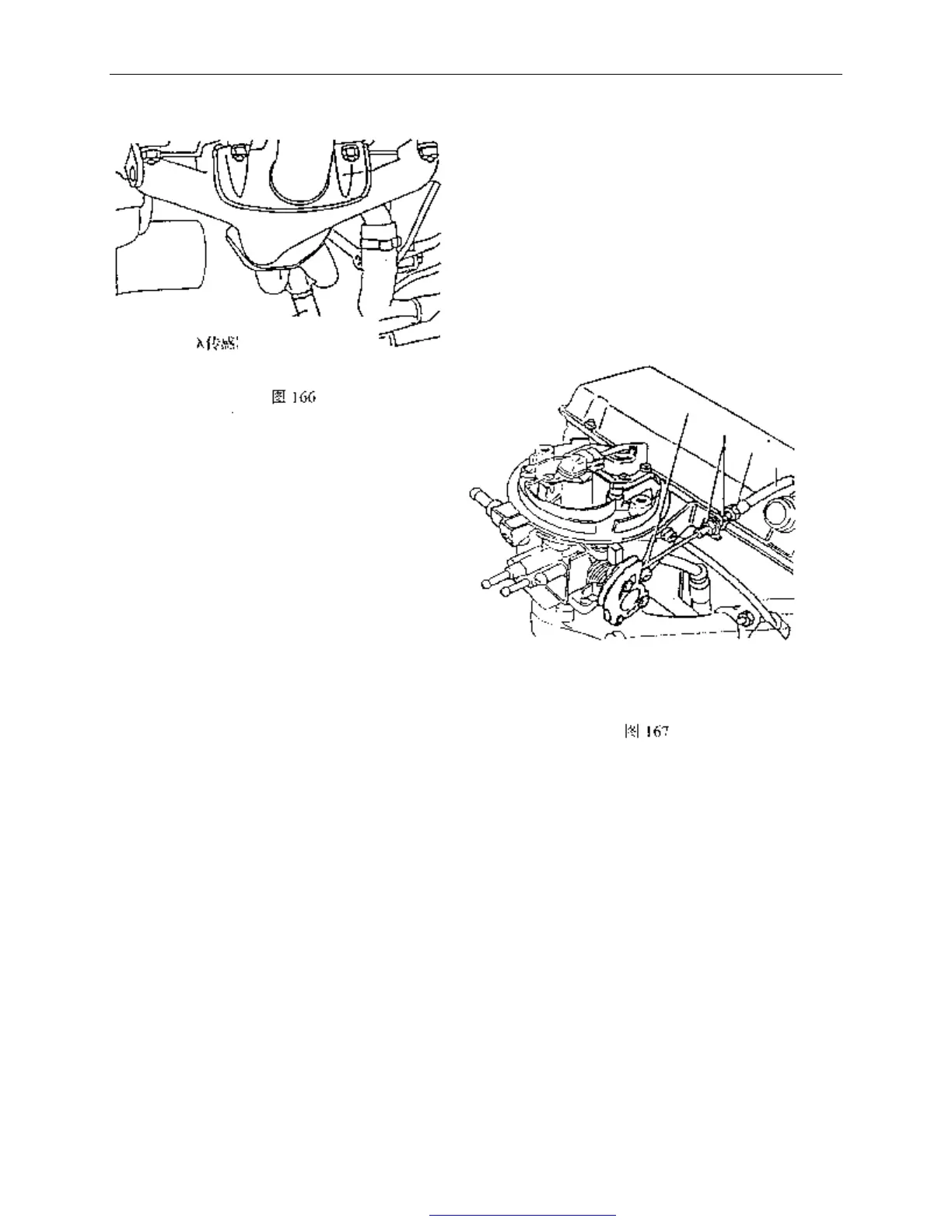

sensor
Fig. 166
