CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual

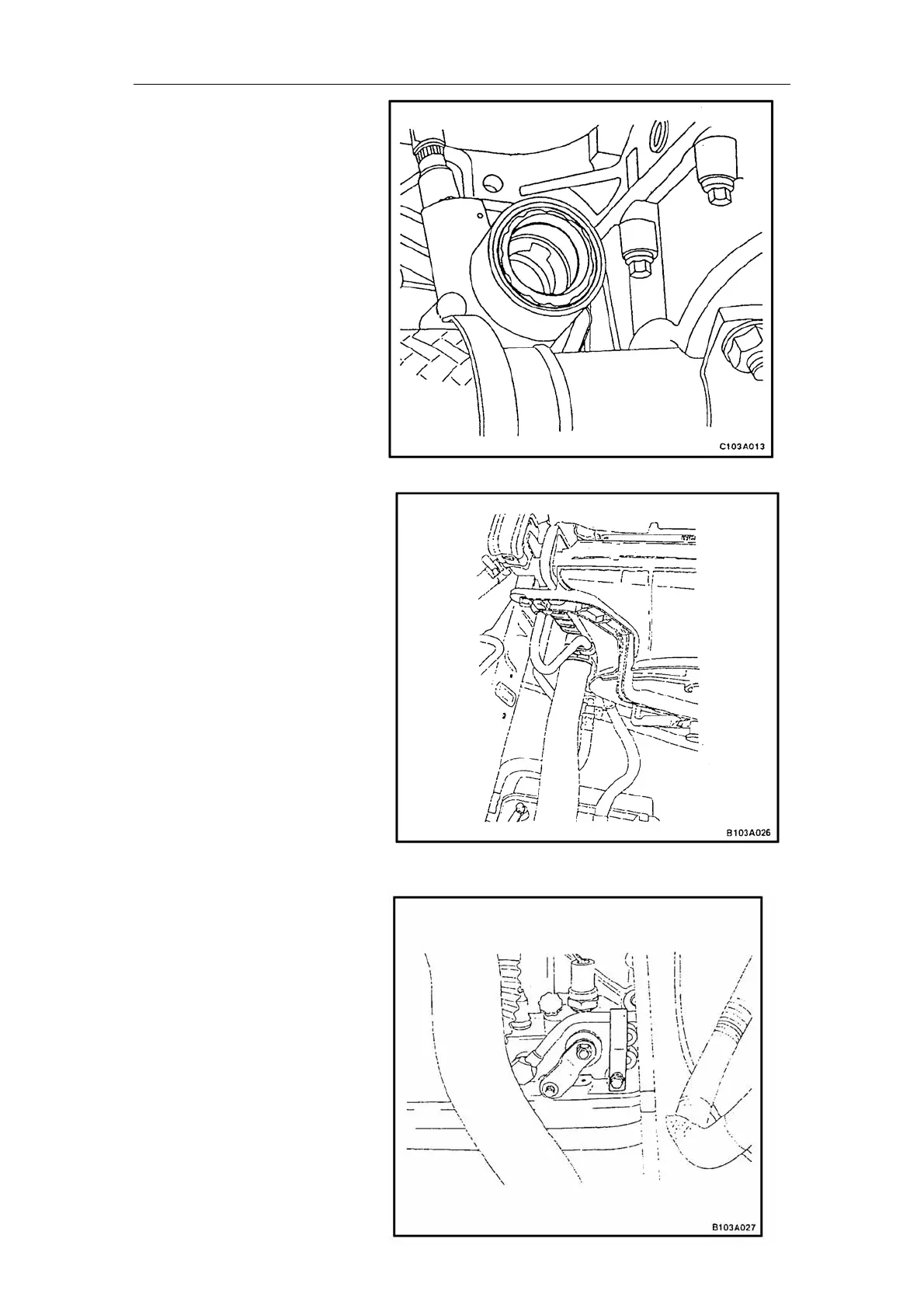

2. Right drive shaft’s oil sealing;
Put on left and right drive
shafts;
Install two front wheels;
.Lower the vehicle.
Oil cooling pipe
isassembly procedure:
Remove the battery;
Place a oil box under the
vehicle to collect the oil;
Remove the clip connecting the
cooling pipe with the
transmission.
3.
4.
5
D
1.
2.
3. Remove the clip connecting the
cooling pipe with the cooler.
4.
57
