CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual

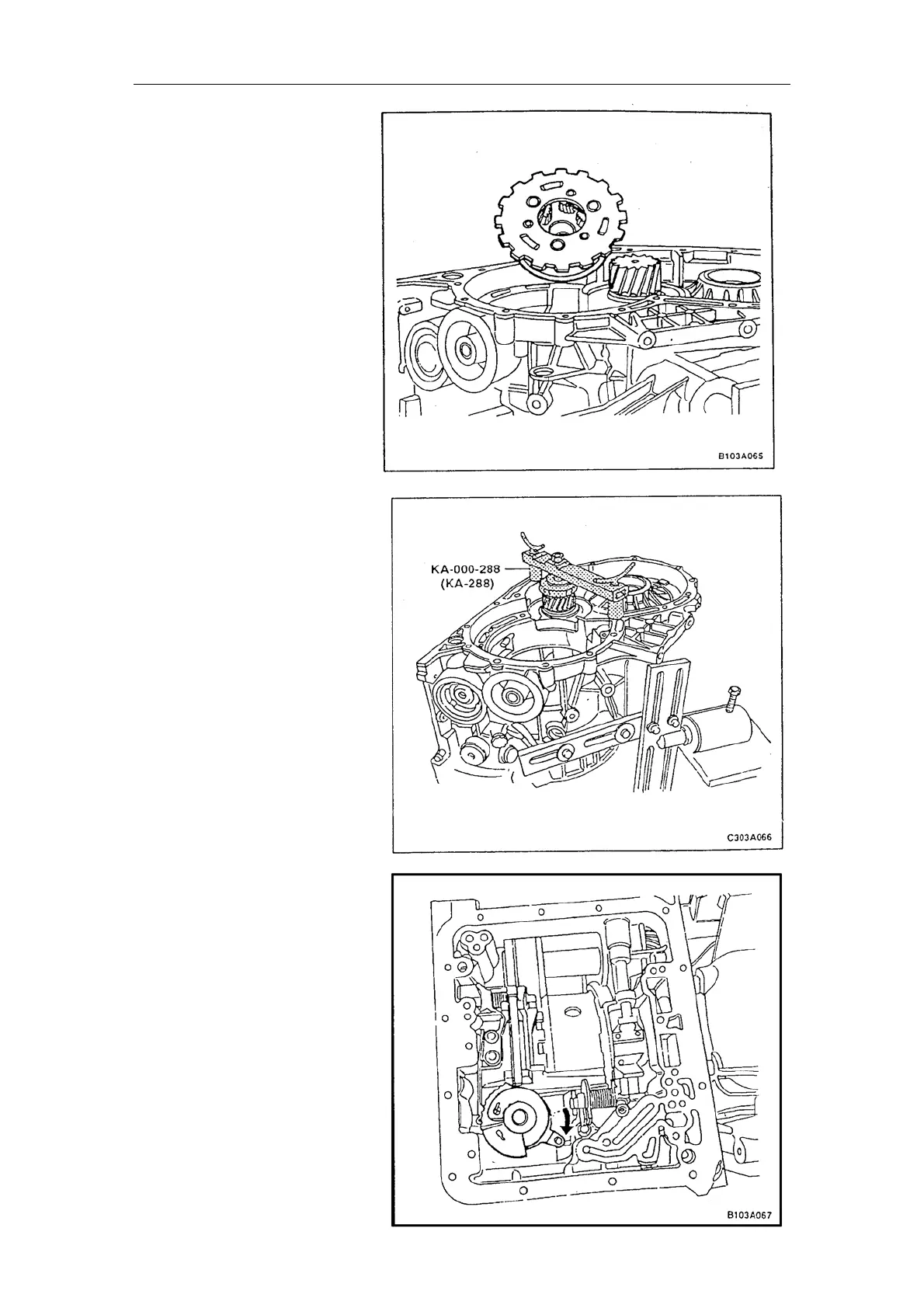

24. Take out the planetary gear
mechanism and needle
bearing.
. Fix the driven shaft with the
special tool of KA-000-288.
. Turn the transmission by 90
degree to the direction as
shown by the figure;
. Loosen the bolt connecting the
.
d
. Locate the shift shaft to the
parking position;
25
26
27
side cover with the housing
Take off the side cover an
gasket.
28
73
