CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual

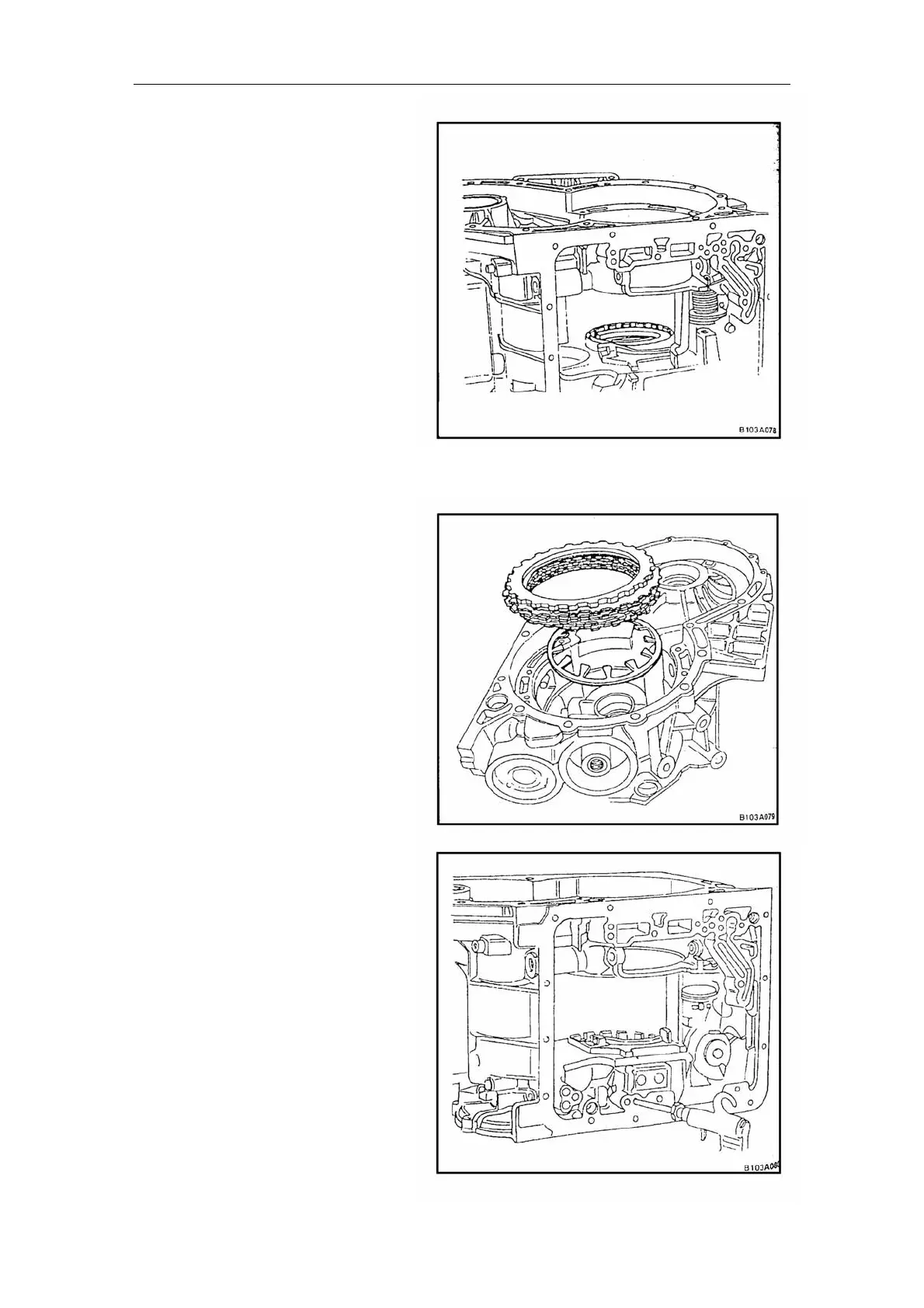

42. Turn the transmission by 90 degree,
as shown by the figure;
. Remove brake D’s snap ring;
.Take off the brake D assembly and
diaphragm spring;
se high-pressure gas to remove the
piston on brake D;
43
44
45.U
78
