CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual
Middle seat, brake C and oil
mp assembly
ecial tool: KA-000-914
aphragm spring lock unit
isassembly procedure:
automatic
2.
’ and oil pump from
the transmission;

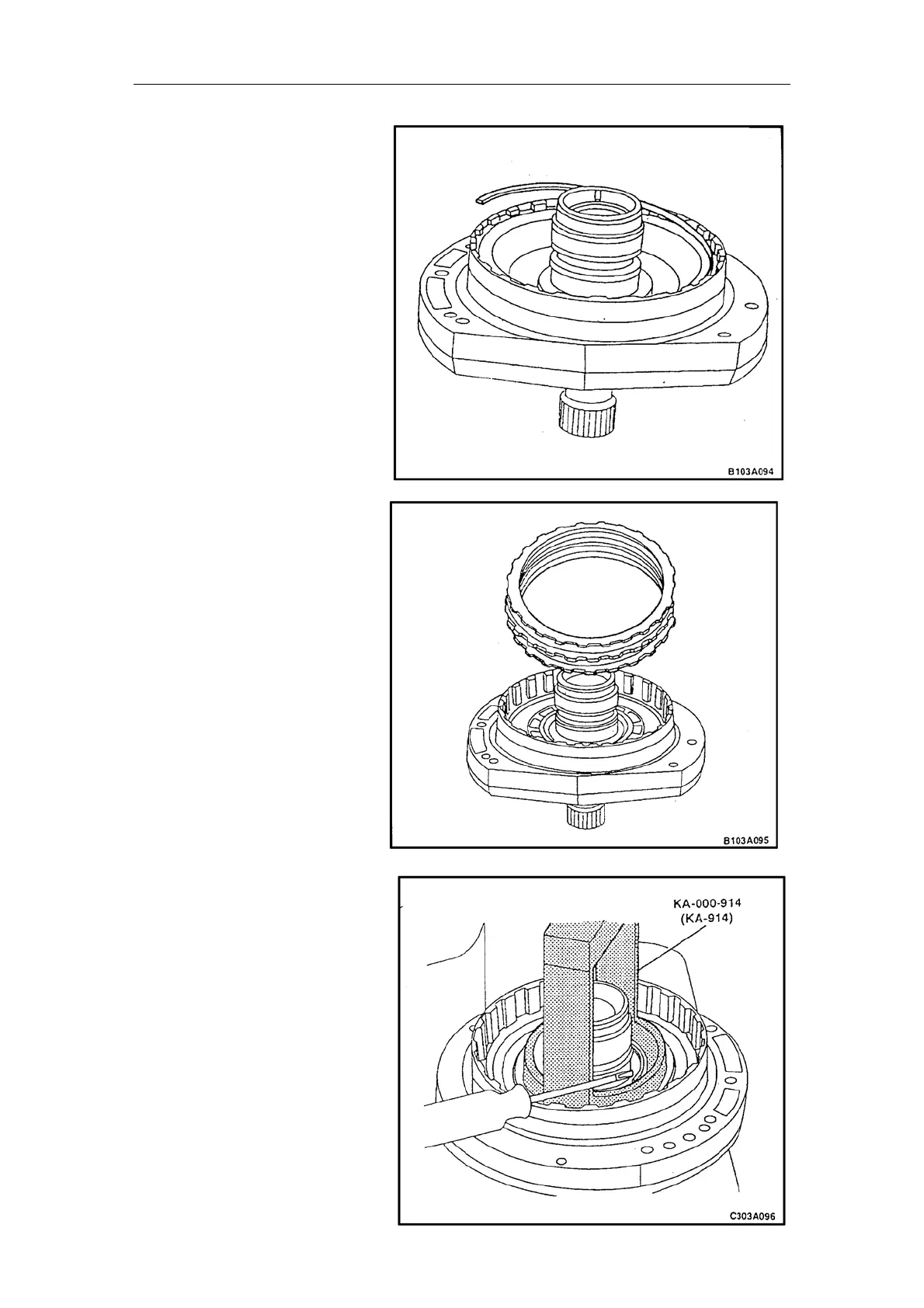

Remove the positioning snap
ring on brake C.
Take out brake C assembly;
Press down the diaphragm spring
with KA-000-914 of diaphragm
spring compressor. Then remove
pu
Sp
di
D
1. Remove the
transmission assembly from
the whole vehicle;
Remove the middle seat,
brake C
3.
4.
5.
the fixing snap ring by a
screwdriver.
