CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual

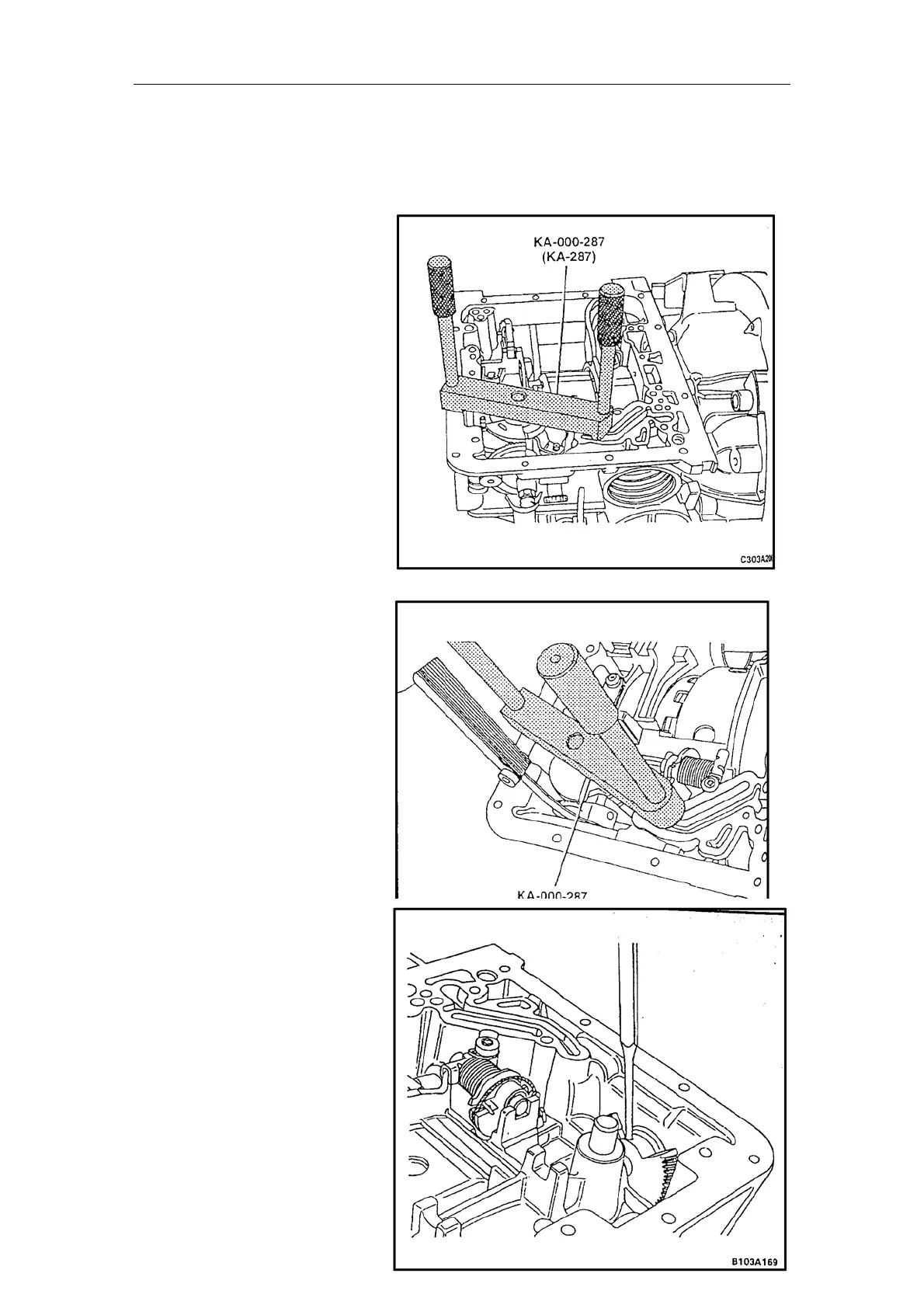

7. Engage the shift cam with the
parking cam closely. Use the
special tool of KA-000-287
(locator) to fix the parking
cam;
Check the gap between the shift
cam and house. Deduct the
reading by 0.10mm to get the
depth of the adjusting washer
required;
Remove the pawl spring and
brake disk. Push part of the
shift shaft out. Put on the
adjusting washer between the
shift cam and the house.
. Install the shift shaft for the
second time and put on the
resilient dowel pin;
8.
9.
10
122
