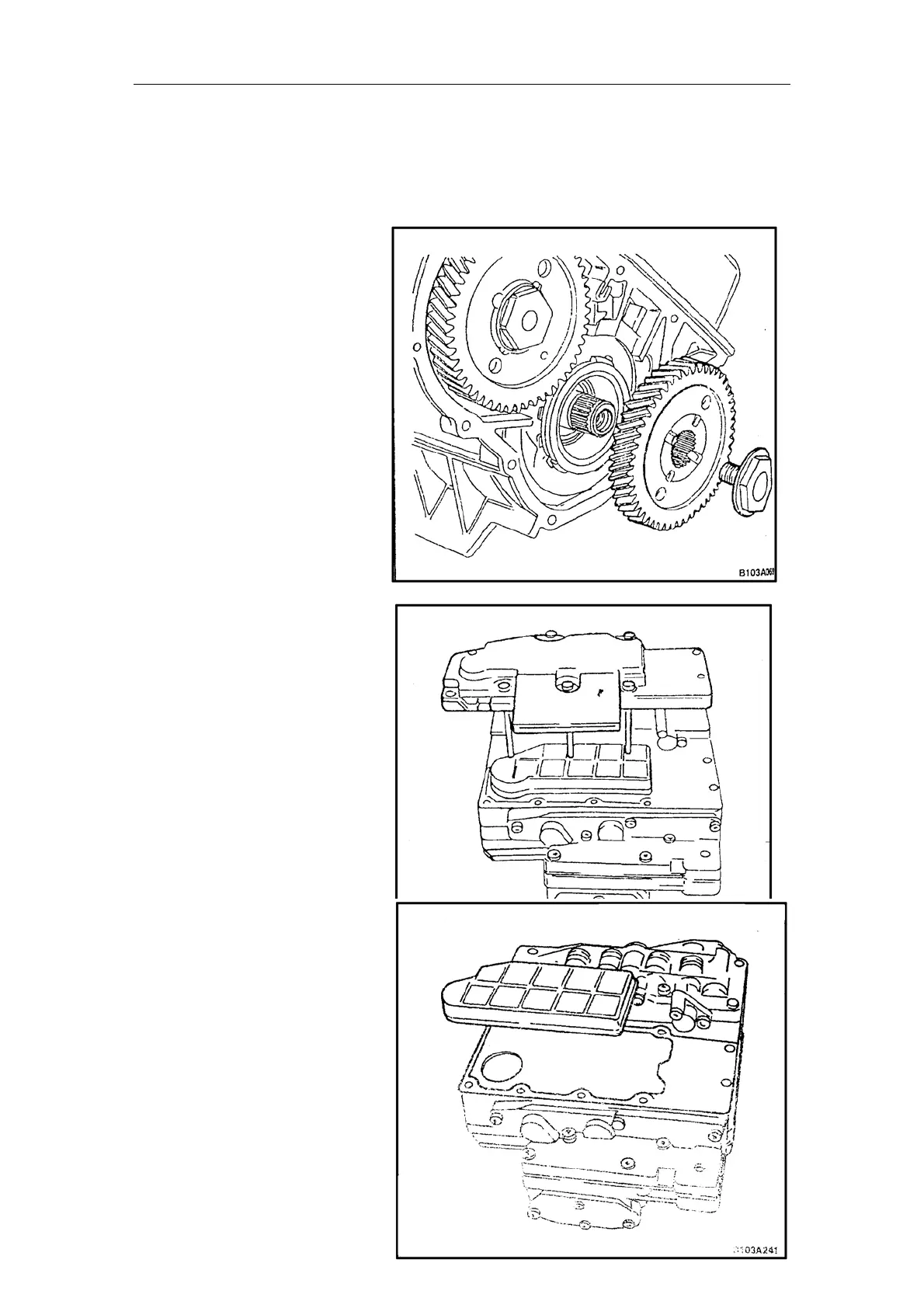

. Install the main back output
gear and fix it with the fixing
bolt. Knock the bolt’s flange
into the sunk pit on the gear;
. Adjust the output shaft’s gap;
. Install the side cover and
gasket;
. Install the control valve plate
18. n gasket and
the oil pan;
. Install the assemb
transmission assembly on the
vehicle.
ontrol valve plate assembly
isassembly procedure:
Remove the transmission
assembly from the vehicle;
Remove the valve plate from
the transmission;
e
Take out the oil feed filter screen
and gasket;
14
15
16
17
assembly;
Install the oil pa
19 led
C
D
1.
2.
3. Remove the back cover of th
oil feed filter screen;
4.
124
