CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual

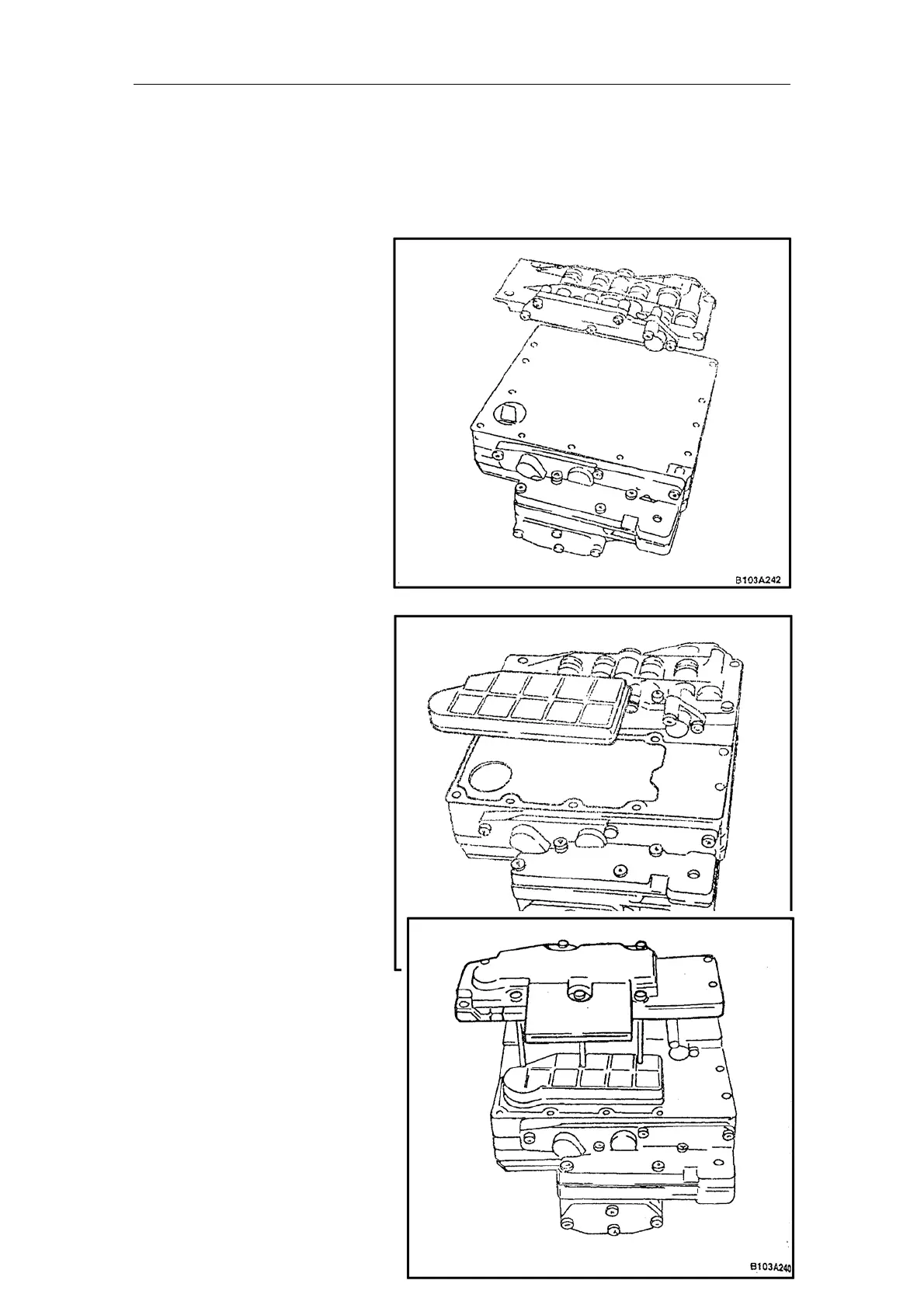

. Install the bottom valve board
and fix it with a bolt; tightening
torque: 8Nm
nstall oil feed filter screen and
gasket;
mission;
;
11
12. I
13. Install oil feed filter screen and
fix it with bolts; tightening
torque: 8Nm
14. Install the control valve plate
assembly on the trans
15. Install the assembled automatic
transmission on the vehicle
131
