Electronic Specification
ITEM CONDITION IDEL GOAL
Coil resistance Temp: 27 48±2.4Ω
Coil induction 1kHz sine wave input 38±6mH
.
●Testing method
a Ohmmeter Method
Remove step motor connector, measure resistance between 1A~1B and 2A~2B. Remove
ECU connector, measure resistance between A71~A8 and A5~A6.
b Hand Sensing Method
When ignition switch is turned on, short-time vibration should be felt.

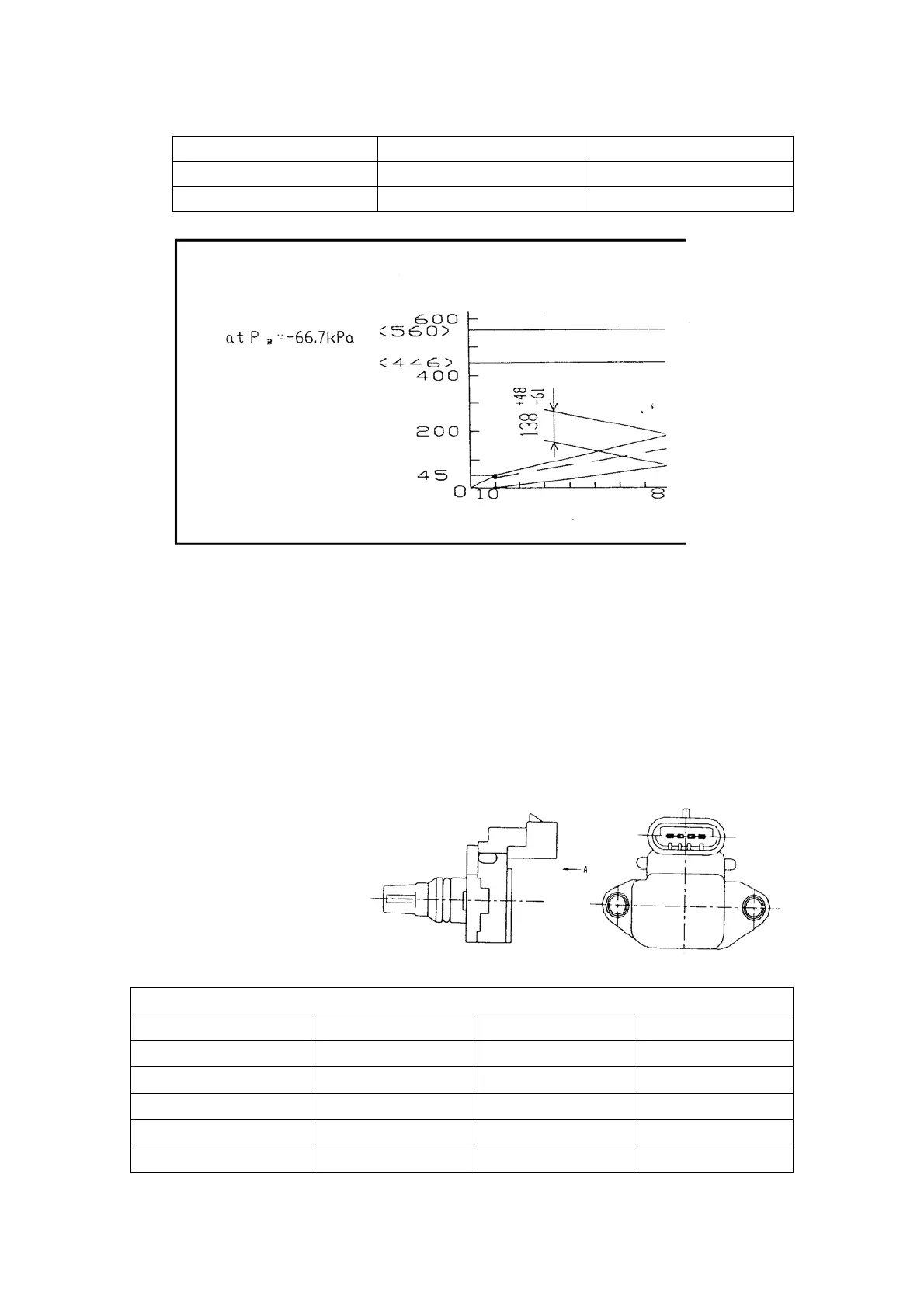

2.3.2 Air Intake Temperature (AIT) Pressure Sensor
AIT pressure sensor has 4 leads, votage supply wire (pin B22), pressure signal (pin B19),
temperature signal (pin B18), and ground wire (pin B23).
Steps
Air intake
Volume
TMAP Resistance-Temperature Specification
Temperature(℃)
R Specified
R Min..(Ω) R Max. (Ω)
-40 49932.9 43142.0 56723.7
-30 26628.4 23406.3 17396.9
-20 15701.2 14005.4 17396.9
-10 9538.8 8623.1 10454.5
0 5958.7 5452.2 6465.2
