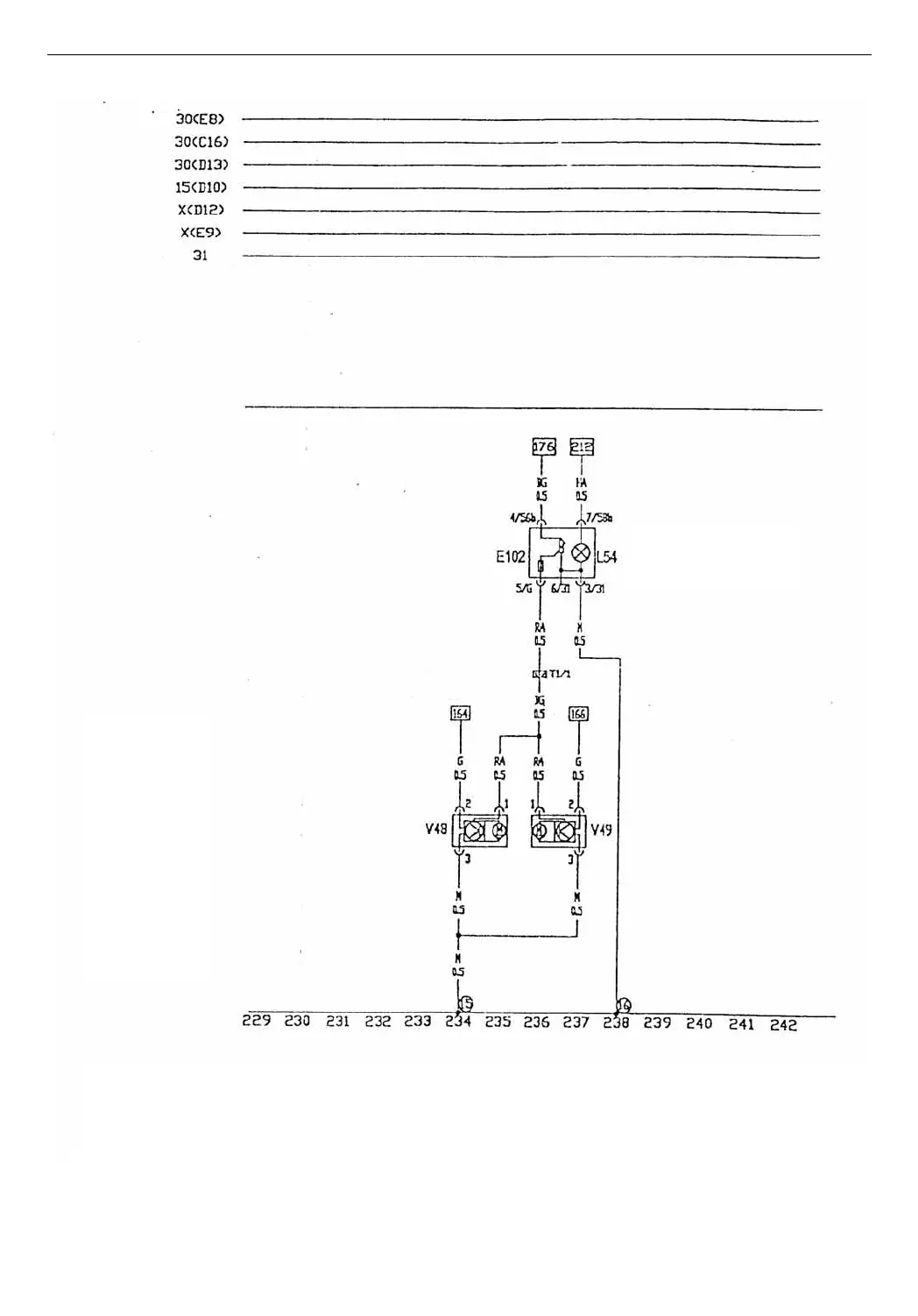

CIRCUIT
HEADLIGHT ADJUSTMENT
Light Adjustment
Illumination Light
B=WHITE
N
=BLAC
K
R=RED
M=BROWN
V=GREEN
A=BLUE
H=GREY
Z=PURPLE
G=YELLOW
○
16
Ground, Located Beside Central Electrical Box
○
15
Gr
ound, at headlight
T1 Single
Hole
Connector
E102 Headlight
Height
Adjustment
Switch
L54 Light
Adjustment
Illumination
Light
V48 Left
Front
Headlight
Adjustment
Motor
V49 Right
Front
Headlight
Adjustment
Motor
62
64
Table of Contents
Table of Contents
10
Battery, Alternator, Starter Motor, Ignition Switch
11
MPI EI(Electronic Injection) (MARELLI)
14
A/C Unit, Control Head, Cooling System
16
Sensor
18
Radio and 6 Speakers
19
IP (Instrument Panel) and MFA
20
Front Fog Light, Cigar Lighter, A/C Panel Indicator
21
Rear Window Heating System, Dual Pitch Horn, Compressor Magnetic Clutch
22
Wiper, Horn Button, Washer
23
Headlight, Front Position Light, Light Relay
24
Turn Light, Parking Light Switch, Emergency Warning Relay
25
Taillight, Sidelight, Brakelight
26
Light Switch
27
Backlight, Rear Fog Light
28
Central Locking
31
Power Mirror
32
Abs
33
Power Glass Lifter Control Unit
34
Power Glass Lifter Control Switch
35
Table of Contents
45
MPI EI(Electronic Injection) (MARELLI)
48
A/C Unit, Control Head, Cooling System
50
Sensor
52
Radio and 6 Speakers
53
IP (Instrument Panel) and MFA
54
Front Fog Light, Cigar Lighter, A/C Panel Indicator
55
Rear Window Heating System, Dual Pitch Horn, Compressor Magnetic Clutch
56
Wiper, Horn Button, Washer
57
Headlight, Front Position Light, Light Relay
58
Turn Light, Parking Light Switch, Emergency Warning Relay
59
Taillight, Sidelight, Brakelight
60
Light Switch
61
Backlight, Rear Fog Light
62
Central Locking
65
Power Mirror
66
Abs
67
Power Glass Lifter Control Unit
68
Power Glass Lifter Control Switch
69
Int Ro Duct IO N
146
Engine Configuration View and Sectional View
148
Genera
149
Operation Theory
150
Crankshaft, Crankshaft Thrust Washer, Bearing Bushing and Main Bearing Capremoval and I N S T a L L a T I O
153
Main Engine Technical Indexes and Operation Parameters
156
Engine Structural Features
158
Engine Service
160
Engine Removal and Assembly Procedure
162
Positioning No.1 Cylinder Top Dead Center (Compression)
162
Crankshaft Pulley Removal and Installation
163
Upper and Lower Timing Gear Cover Assemblies Removal and Installation
163
Valve Cover and Seal Gasket Removal and Installation
164
Timing Belt Removal, Installation and Adjustment
165
Tension Pulley, Crankshaft Gear and Camshaft Gear Removal, Check and Installation22 [7]、Camshaft Oil Seal Removal and Installation
168
Valve Mechanism and Cylinder Head Removal, Check and Installation
169
Piston and Connecting Rod Assembly Removal and Installation
178
Flywheel Assembly and Rear Oil Seal Bracket Assembly Removal and Installation
181
Oil Baffle Assembly Removal and Installation
186
Engine Oiling System
187
Engine Cooling System
194
Engine Air Intake and Exhaust System
198
Engine Crankcase Ventilation System
203
Engine Fuel Supply System
207
Carburetor Engine Malfunction , Cause and Correction
212
Cac480Mengine Single-Point Electric Control Injection System
219
Wir Ing Diagram
240
Syst Em Service
242
Malfunction, Cause and Correction
247
--Automatic Transmission (A/T) Gear····················································23
663
MPI ELECTRONIC INJECTION (EJ)(Motorola)
665
A/C Unit, Control Head, Cooling System
667
Radio and 6 Speakers
670
Instrument Panel (IP) and MFA
671
Clutch
673
Rear Window Heating System, Dual Tone Horn, Compressor Magnetic
673
Wiper, Horn Button, Washer
674
Headlight, Front Position Light, Light Relay
675
Turn Light, Parking Light Switch, Emergency Warning
676
Taillight, Side Light, Brake
677
Light Switch, Gear Position Illumination Light
678
Rear Fog Lamp
679
Adjustment
680
Lamp, Door Touch Switch
681
Central Locking
682
Mirror
683
Abs
684
Power Window Glass Lifter Control Unit
685
Power Window Glass Lifter Control Switch
686
Automatic Transmission (A/T) Gear
687
Table of Contents
689
Fault Diagnostic Flow Chart
692
Fault Diagnostic Precaution
693
Operating Method
694
Scan Tool Operating Method and Function Introduction
694
Checking ABS Warning Light
696
Clearing Fault Code
696
Reading Condition Information
696
Retrieving Fault Code
696
Quick Fault Repairing Index
698
ABS ECU Socket
699
Electric Circuit
700
Fault with Code Diagnostic Chart
701
Fault Without Code Diagnostic Chart
708
ABS System Check
715
ABS Operation Check
717
Checking Wheel Speed Sensor Output Voltage
717
Removing 3MK 20 HECU Assembly
718
Removing and Installing
718
Removing and Installing Precaution
718
Spare Parts Supplying Method
718
Reinstalling ABS Assembly
719
Replacing ECU
719
ECU Programming
720
