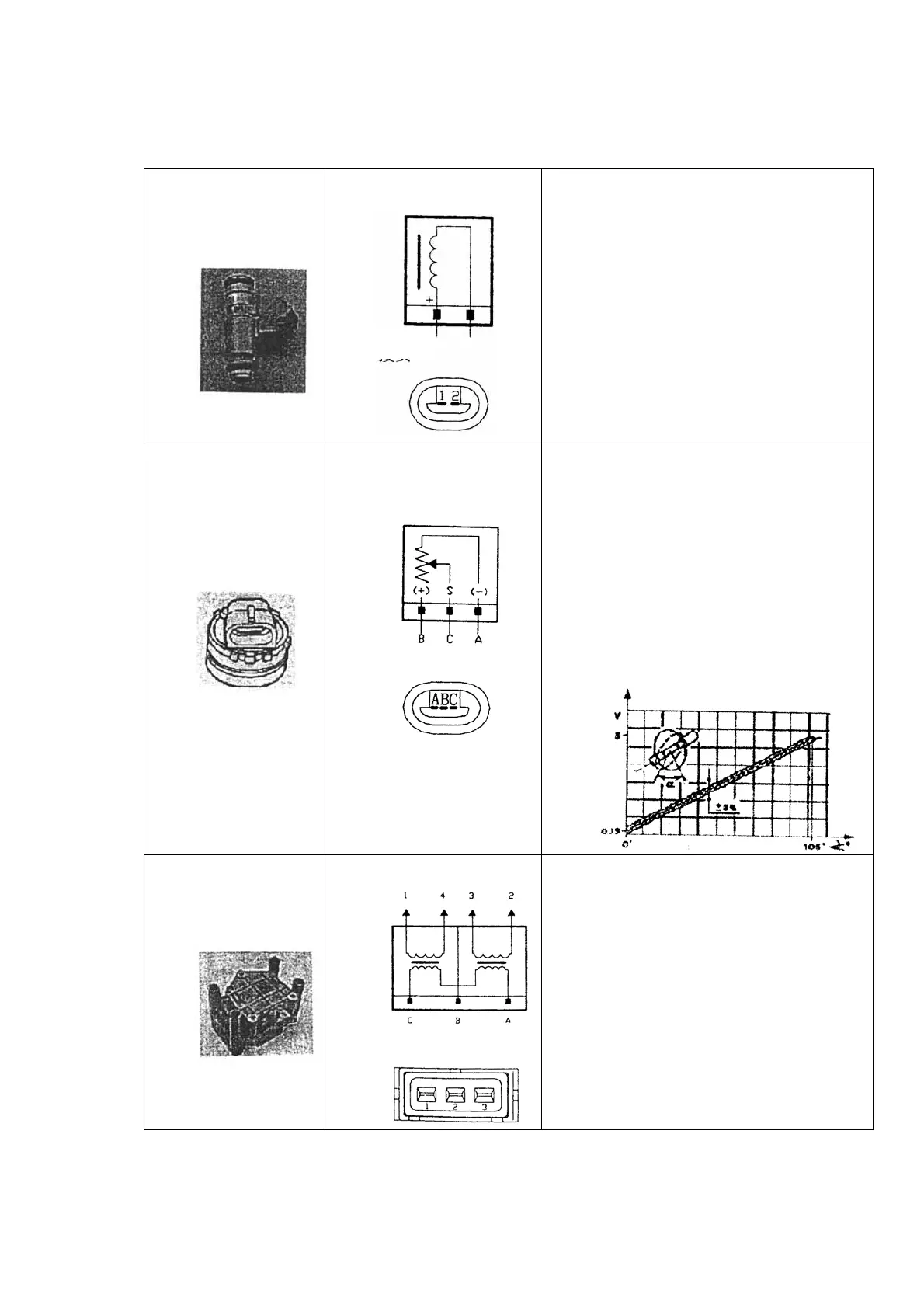

Appendix 2：Electrical Components Specification
Part ： Electrical
fuel injector
Code：IWP116
Internal expanded view
Specification：
Fuel injector shape, single hole
Operating temperature：-30℃～+110℃
Nominal resistance：13.8～15.2Ω10%(at
20℃)
voltage：12V
fuel injection pressure：3.5bar
Part ： Throttle
valve position
sensor
(irreplaceable)
code：IPF2C
Internal expanded view
A=Negative
B=Power supply (+5V)
C=signal
Specification：
Effective electric power angle：90°±2
Mechanical angle：105°±4°
Full mechanical travel：110°±8°
Temperature operating range：-30℃～
+125℃
Resistance between A and B =1200Ω
20%(at 23℃)
Part：Electric fuel
injector
Code：BQE02
Internal expanded view Specification：
Primary coil resistance (A-B or C-B)
0.4Ω±10%(at 23°±5°)
HTtap secondary coil resistance (1—4
cylinder or 2—3 cylinder)；
4900Ω10%(at 23°±5°)
Connector
Connect
Connect
