A11-2002 CIRCUIT MANUAL
1

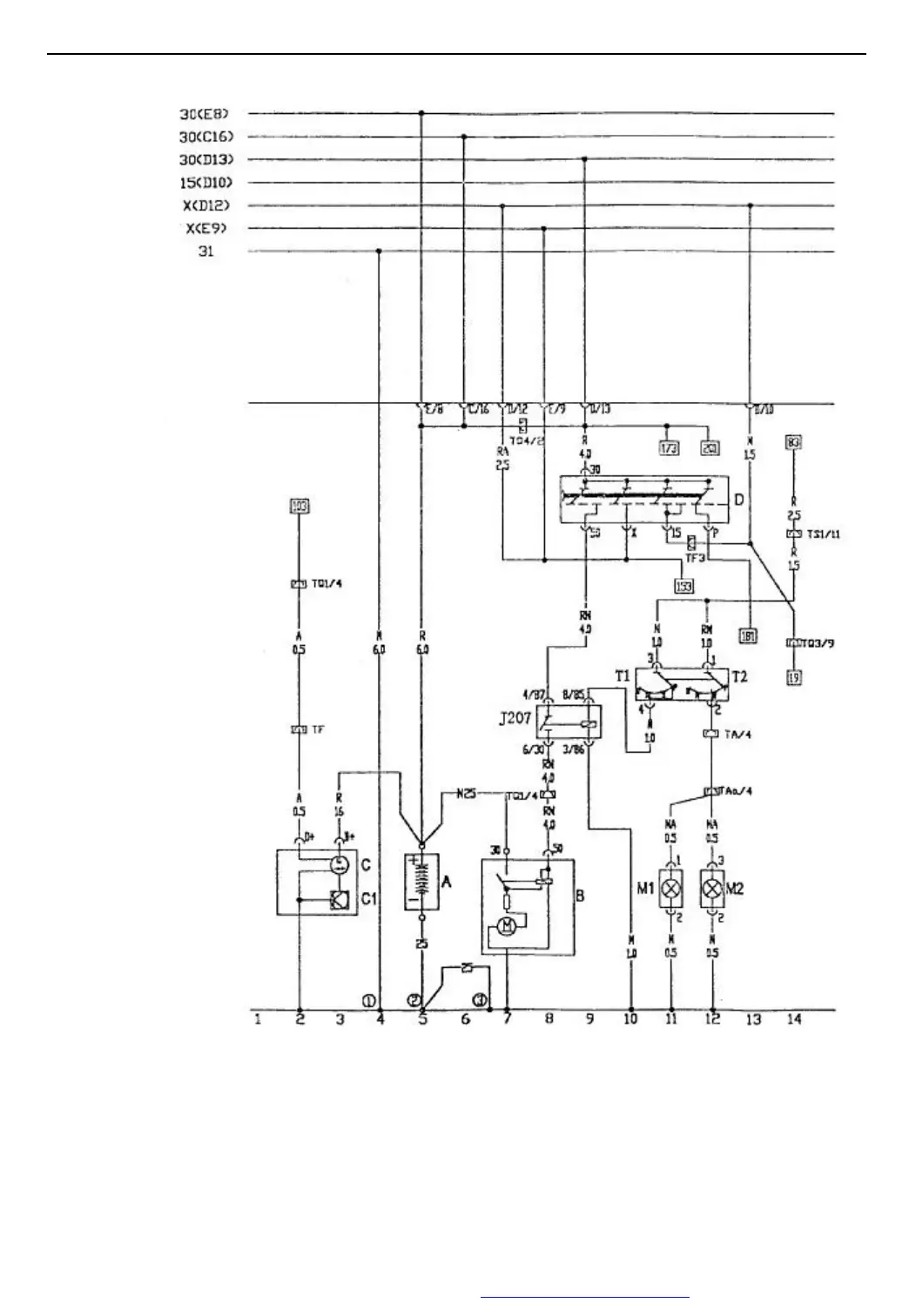

BATTERY，ALTERNATOR，A/T START SYSTEM，IGNITION SWITCH，BACK LIGHT
B=White
N=Black
R=Red
M=Brown
V=Green
A=Blue
H=Grey
Z=Purple
G=Yellow
A Battery T2 Back Light Switch
B Starter Motor M1 Left Back Light
C Alternator M2 Right Back Light
C1 Voltage Regulator (1) Ground, on ground carrier beside central electrical box
D Ignition Switch (2) Body ground, near battery
J207 A/T Start Relay (3) Engine ground, beside transmission
T1 On Switch
TQ4 2 holes match connector
