A11-2002 CIRCUIT MANUAL
5

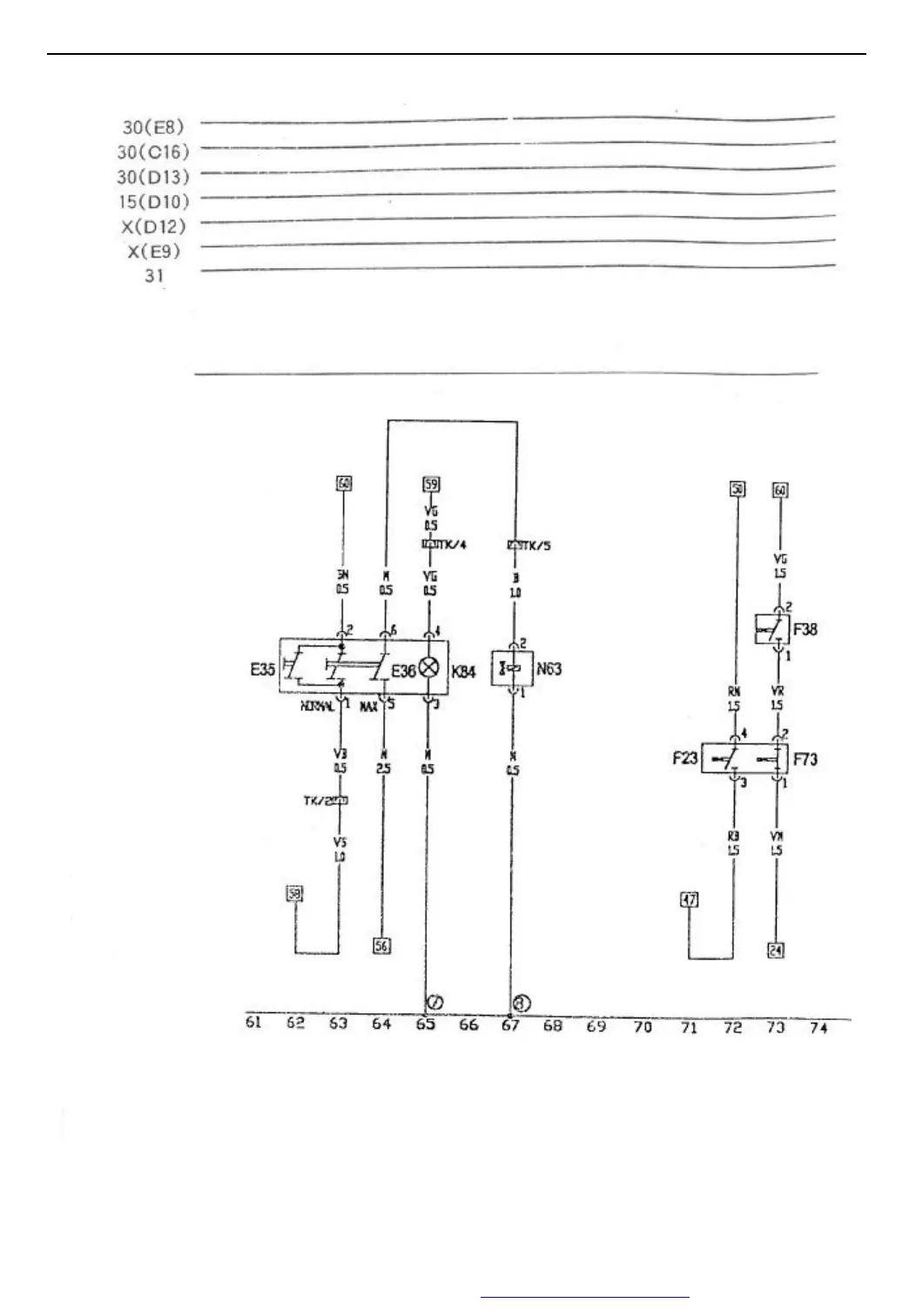

A/C UNIT SWITCH, INTERIOR CIRCULATION SOLENOID, HIGH & LOW PRESSURE SWITCH
B=White
N=Black
R=Red
M=Brown
V=Green
A=Blue
H=Grey
Z=Purple
G=Yellow
E35 A/C unit switch F23 High pressure switch
E36 Interior circulation switch F73 Low pressure switch
K84 A/C operating illumination light (7)(8) Main circuit ground
N63 Interior circulation solenoid TK 5 holes conn
ector
F38 Outside temperature switch
