Maintenance Manual for Chery·Windcloud．．．．．．．．．．．．．．．．．．．．．．．．．．Sunroof

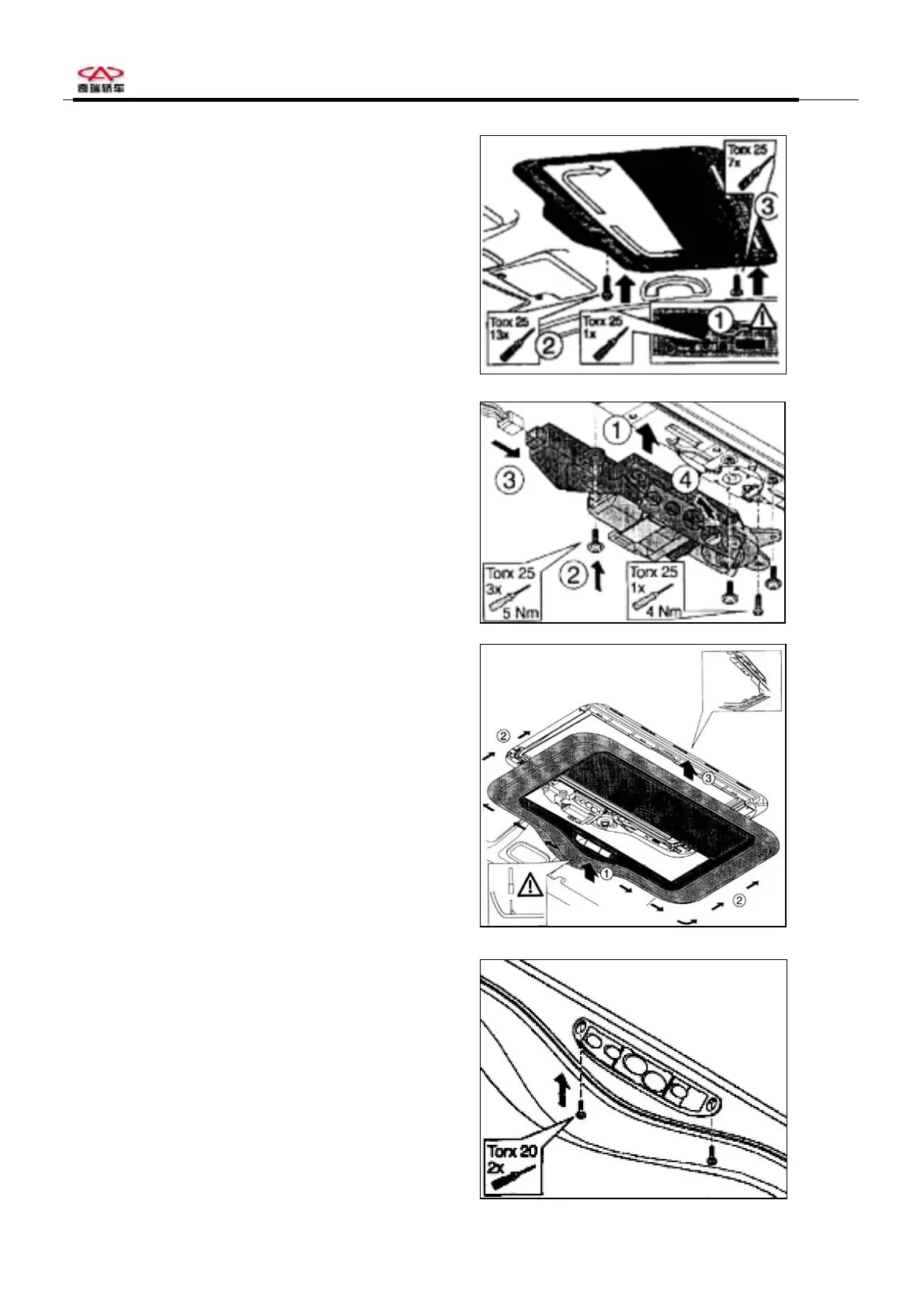

4.2.13 Tighten all fixing bolts in the reverse order in step
8: the one in middle part of front end, and then
black ones on both sides. Pay attention to the
engagement between motor driving shaft and gear.
Finally tighten the silver bolts from the middle of
rear part to both sides.
4.2.14 Install motor and SCU in the reverse order in step
6.
4.2.15 Fix interior decorative frame (push it up in the
direction shown in the figure with clip aligned
with clip slot). Add an under-laying strip if
necessary.
4.2.16 Tighten fixing bolts of interior decorative frame.
