Chery SQR372 Service Manual

SQR7080 Service Manual 372 Engine Mechanical System
Chery Automobile Co., Ltd
12
Chapter 3 Camshaft Service

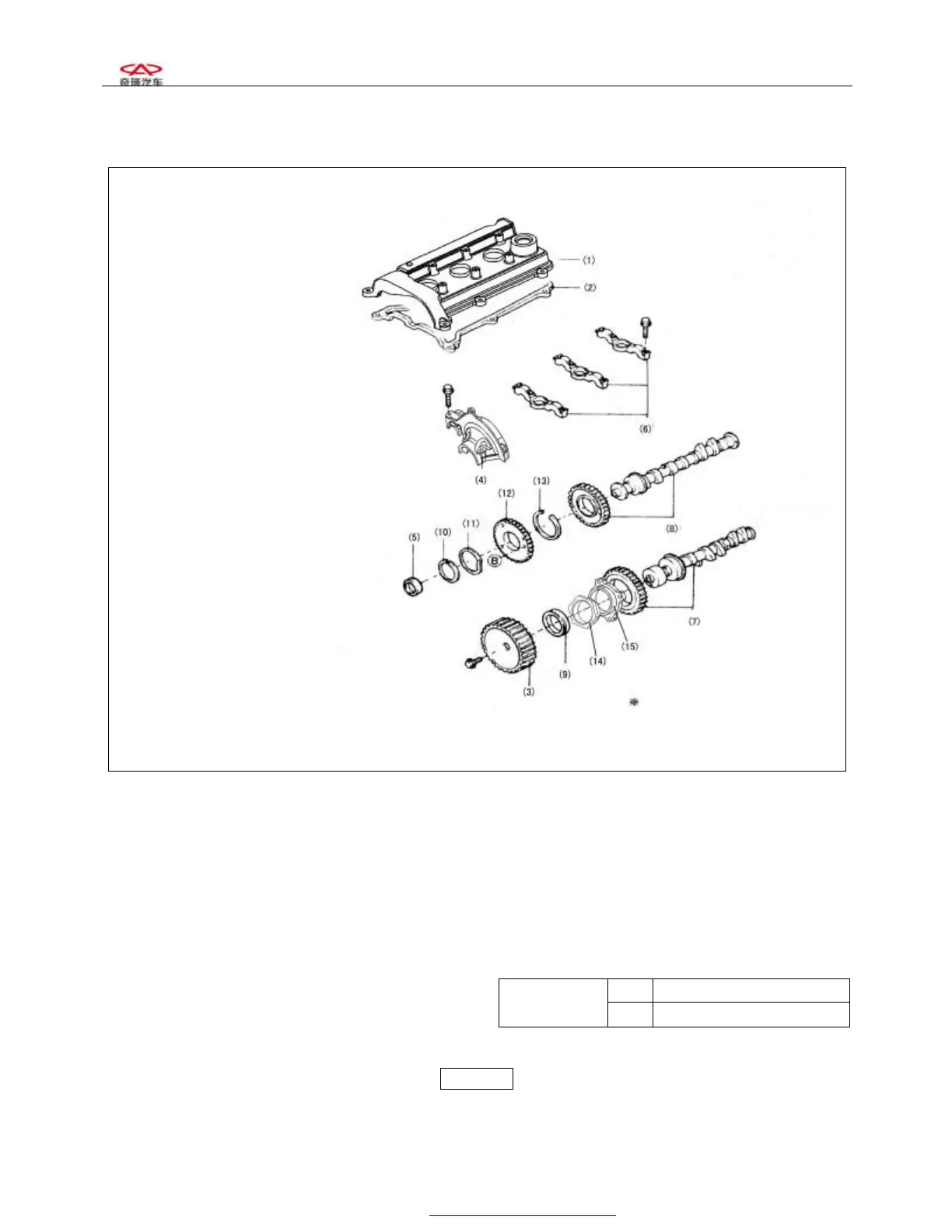

3-1.Diagram ( Removal and installation order for timing belt)
3-2 Removal
Remove cylinder ①
head cover assembly
Remove the valve chamber cover cap bolt
from two sides to the centre symmetrically.
Remove ② valve chamber cover gasket
2 Routine check of valve
valve clearance standard：
IN 0.18±0.05
Valve
clearance
EX 0.25±0.05
3 Dismount the camshaft clockwise gear
Attention· You must prevent the camshaft from rotating.
(1) Valve cage cover
(2) Valve cage cover
gasket
(3) Camshaft timing
pulley
(4) Camshaft cover
(5) Circular plug
(6) Camshaft bearing
cap
(7) Exhaust camshaft,
(8) Intake camshaft,
(9) Oil seal
(10) Spring retainer
(11) Wave washer
(12) Intake camshaft
sub-gear
(13) Snap ring
(14) Lock nut
(15) Flange
Non-reusable part
PDF 文件使用 "pdfFactory Pro" 试用版本创建 ÿ www.fineprint.com.cn

Chery SQR372 Specifications

General

Engine Code	SQR372
Displacement	812 cc
Fuel System	Multi-point fuel injection
Fuel Type	Gasoline
Number of cylinders	3
Valvetrain	DOHC
Compression Ratio	9.5:1
Torque	70 Nm at 3500-4000 rpm
Engine Type	Inline-3
