SQR7080 Service Manual 372 Engine Mechanical System
Chery Automobile Co., Ltd
5. Water pump

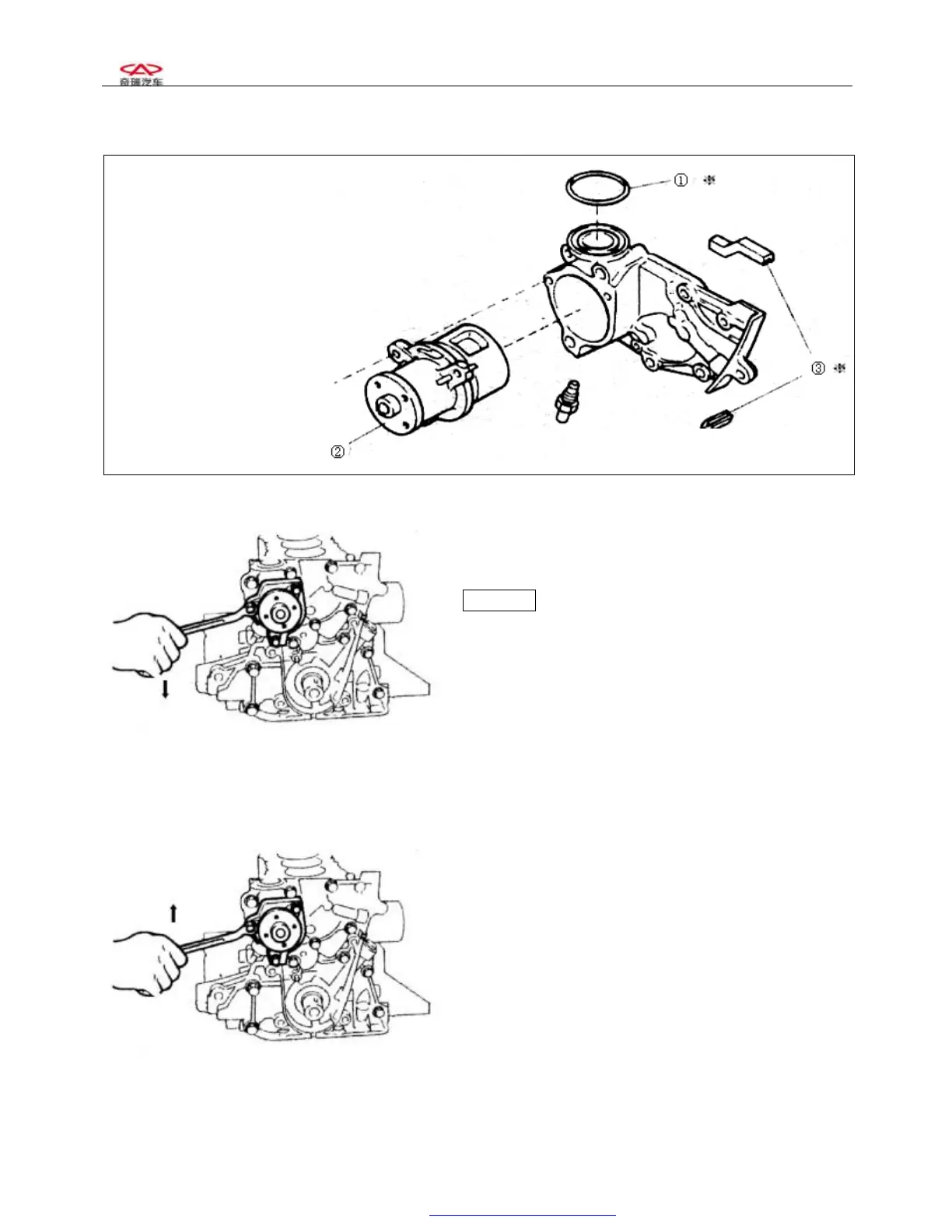

5-1 Configuration diagram (the dismounting and assembling of the cylinder body should be done in the
following procedures)
1“O” ring, non-reusable
2 Oil pump body
3 Weather seal
5-2 Dismounting
1. Dismounting and removal of O-shaped ring
Attention These rings are not reusable.
2. Removing the three bolts and dismount the water
pump principal body.
3 Removal of the dustproof sealing stripe
5-3 Clearing
1 .Clearing of the mating surface of the water pump
5-4 Routine checks
1 .Check to see if there are any deformation or
damages
2.Use a hand wrench to see if the turning is OK, and if
it is smoothly lubricated?
5-5 Installation
1 Install the dustproof sealing stripes
2 Install the water pump principal body
Tighten with a torque of 25±1.5N.m
2 Install the new O-rings
Non-reusable part
