SQR7080 Service Manual 372 Engine Mechanical System

Chery Automobile Co., Ltd

6-3 Clearing

1.For the mating surfaces of the oil bottom case, oil

pump and oil seal stands,

2. For the mating surfaces of the rear oil seal stand and

oil pump

scraper and chipping chisel or some other tools may be

used to clear the used ones.

Attention Do not drop the residues into the cylinder

body.

6-4 Disintegration and assembling of oil pump

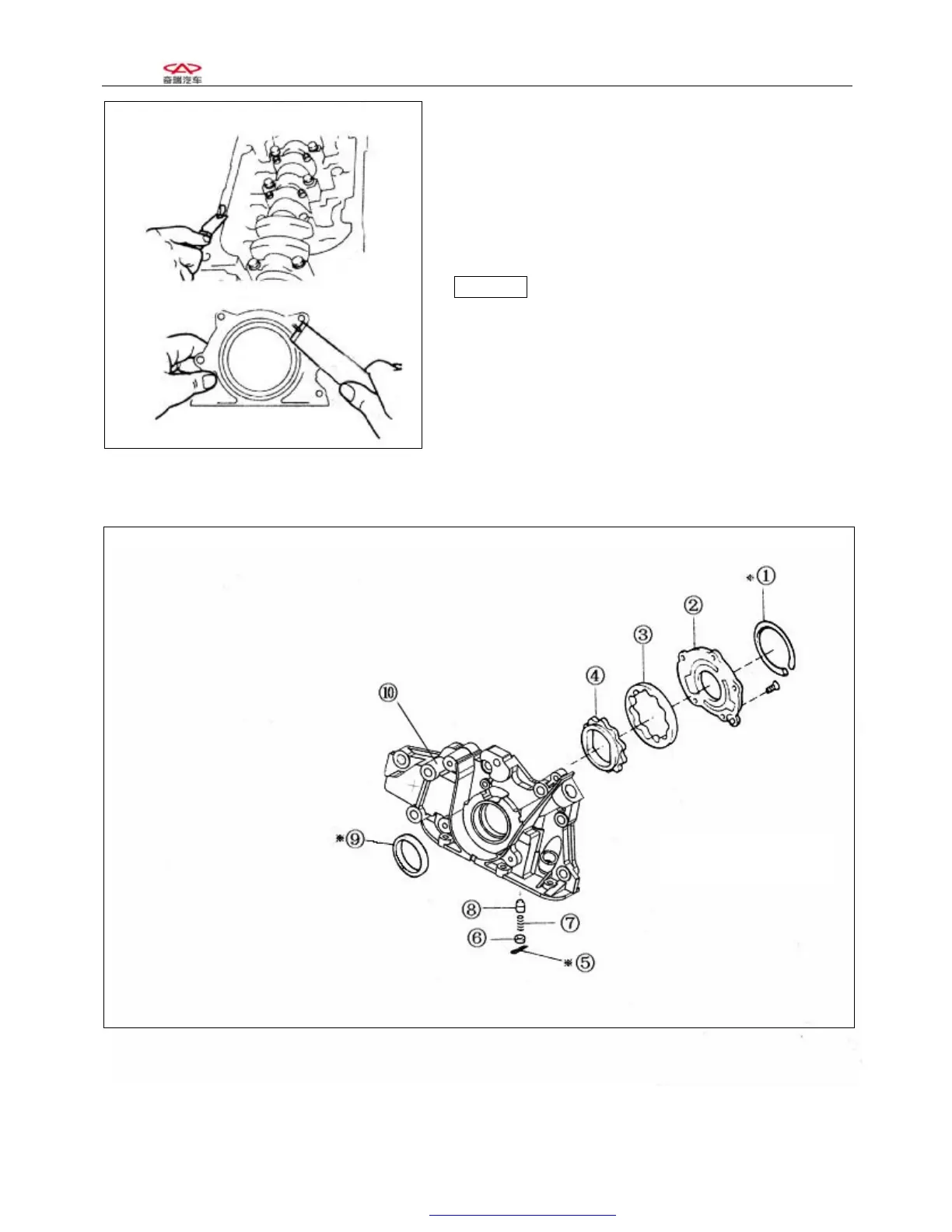

6-4-1 Configuration diagram

1 Weather seal

2 Oil pump cover plate

3 Driven rotor

4 Drive rotor

5 Split pin

6 Relief valve spring seat

7 Relief valve spring

8 Relief valve

9 Crankshaft front oil sealing

10 Oil pump body

※：Non-reusable part
