SQR7080 Service Manual 372 Engine Mechanical System
29
Chery Automobile Co., Ltd

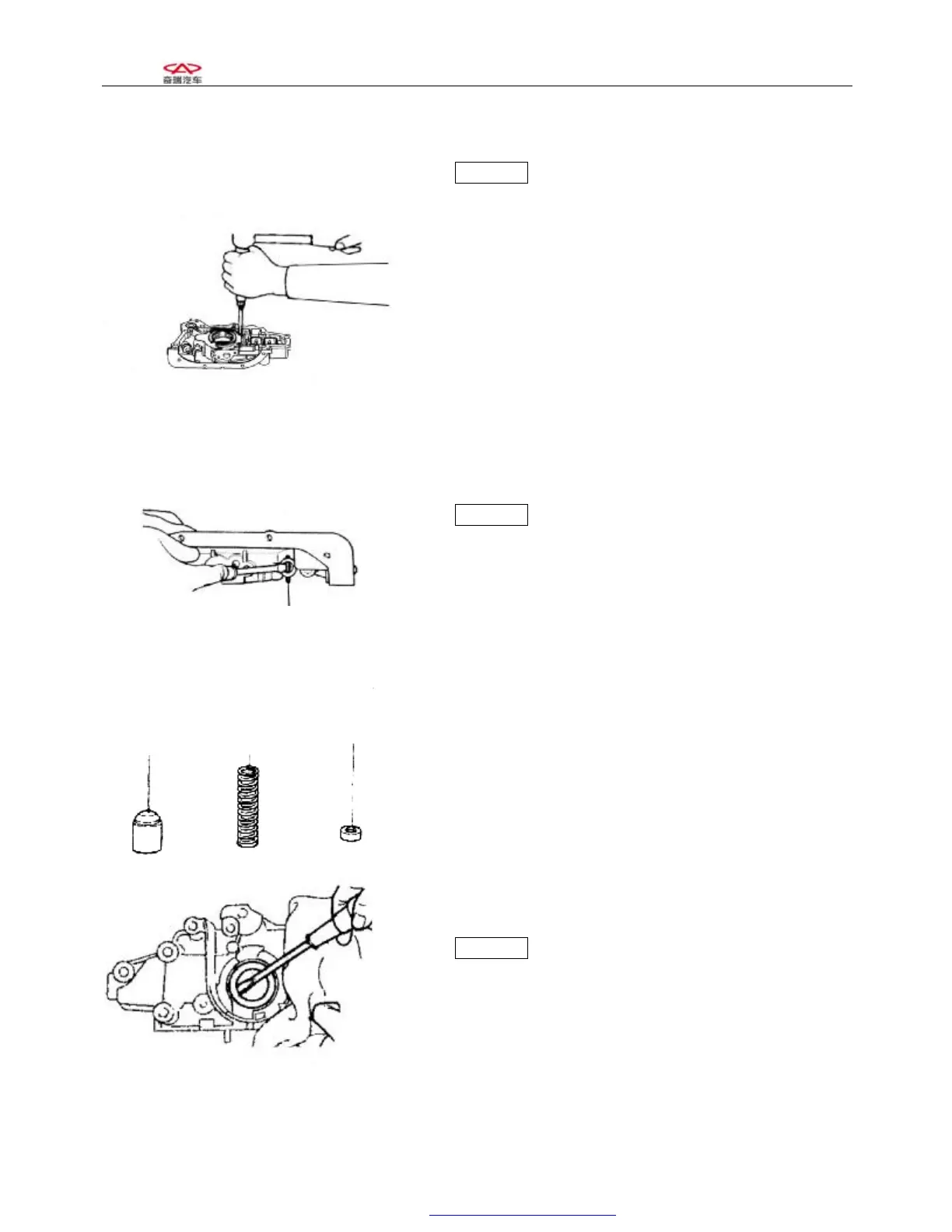

6-4-2 Disintegration
1．Weather seal
Attention The weather seal are not reusable.
2 Remove the oil pump cover
Attention: The bolt is assembled with glue, loosen it with
screw driver according to the illustrations
3 Remove the driven and drive rotor of the oil pump
4．Take off the split pin
Attention The split pins are not reusable.
Attention: Pay attention not to make the spring and spring
seat sending forth and dropping suddenly, while taking
off the open pins.
5．Removal of the oil pump pressure relief valve spring
stand, spiral spring, oil pump pressure relief valve
6． Removal of the front oil seal of the crankshaft
Attention The removed oil seals are not reusable.
滑块
卸压阀弹簧
卸压阀
valve
Spring seat
slider
pressure
relief valve
