7. Crankshaft connecting rod mechanism

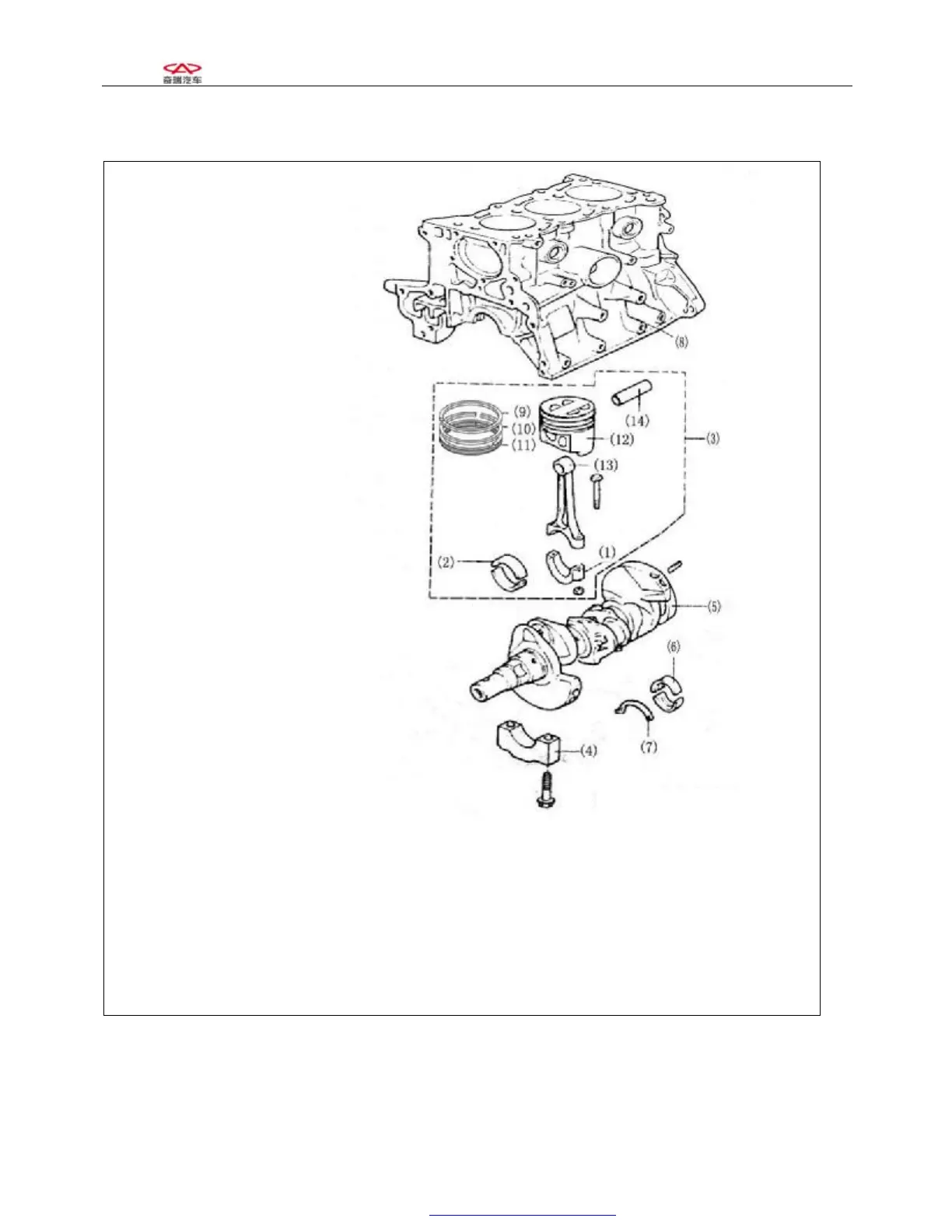

7-1 Configuration diagram (Dismount and assemble the oil pump in the follow sequence)
(1) Connecting rod cover
(2) Connecting rod bearing bush
(3) Piston and connecting rod assembly
(4) Main bearing cover
(5) Crankshaft
(6) Crankshaft bush
(7) Thrust washer
(8) Cylinder block
(9) No.1 compression ring
(10) No.2 compression ring
(11) Oil ring
(12) Piston
(13) Connecting rod
(14) Piston pin
Non-reusable part
