SQR7080 Service Manual 372 Engine Mechanical System
33
Chery Automobile Co., Ltd

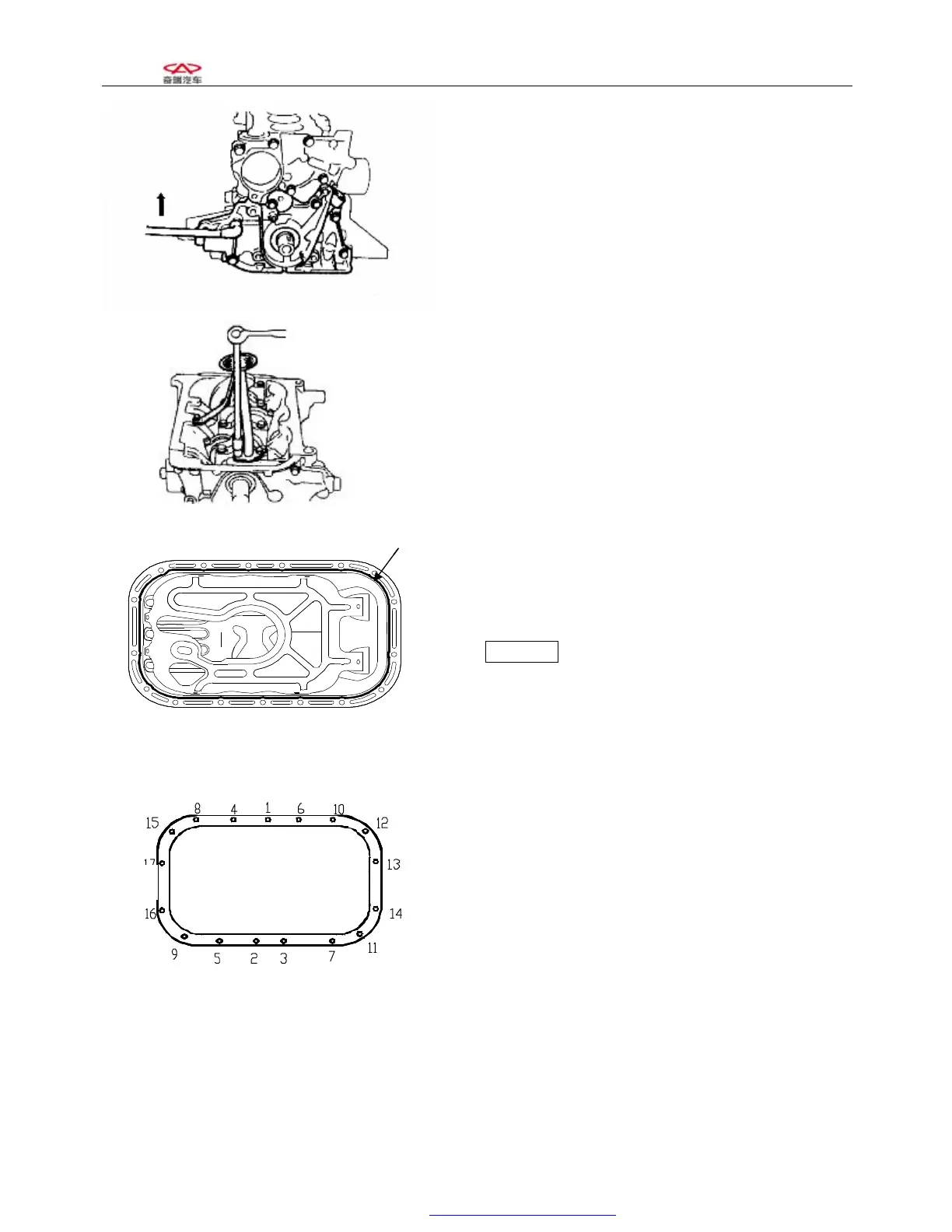

2. Assembling of new oil pump washer, oil pump
assembly
[Torque] 20±1.5N.m
3. Installation of new lubricating oil collecting and
filtering device, oil pump collecting and filtering
device
[Torque] 6±1N.m
4.Assembling of oil pan
(1) Clear the mating surface with the cylinder
body
(2) Apply sealing silica before assembling
[Grease] Letai 5699
Attention
·The liquid cushion with silica line diameter of
ф3-4mm, without any broken section
·Make the assembly in 15 minutes after the
application of silica
(3). Tighten in the sequence shown in the right
figure with the torque of 6±1N.m from the centre to
the two sides
Rear
front
