Chery SQR372 - 6-6 Assembling of oil sealing stands

SQR7080 Service Manual 372 Engine Mechanical System
32
Chery Automobile Co., Ltd
-5-2 Disintegration

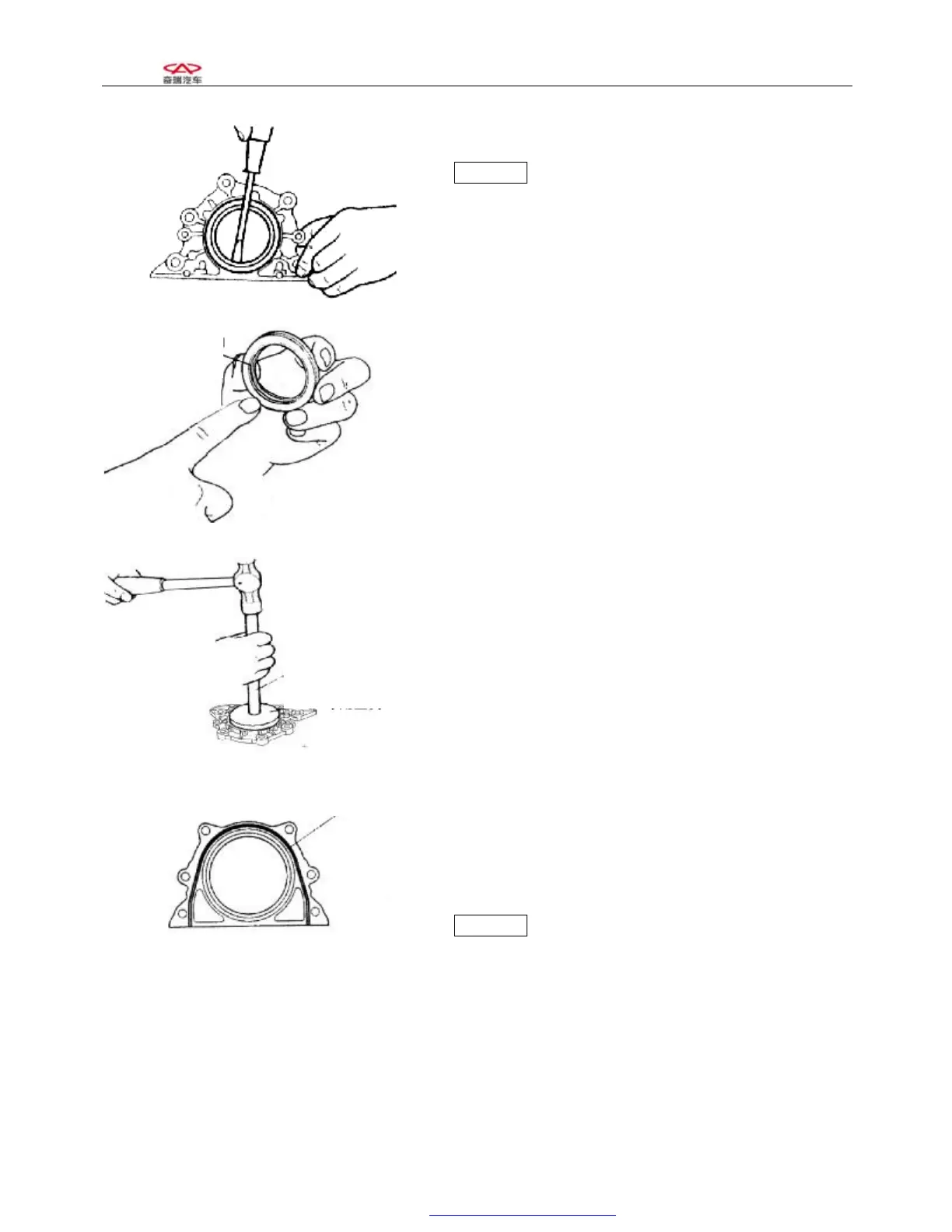

1. Use a flat screwdriver to remove the rear oil seal.
Attention The oil seals are not reusable.
6-5-3 Checks
Check to see if the tears and wears of the lip section of
the oil seals are within the normal conditions, and if
there are any damages in outer appearance.
6-5-4 Assembling
Smear lubricating oil on the new oil seal lip section.
2. Install the oil seal shown as the right figure.
6-6 Assembling
1. Assembling of the oil sealing stands
(1) Smear oil sealing silica on the oil sealing
stands shown as the right figure.
[Grease] Letai 5699
Attention The liquid sealing silica is to be smeared to
the mating section of the oil seal stands and cylinder
body surface, with a width of 3—4mm.
[Torque] 25±1.5N.m
Oil sealing
lip
