SQR7080 Service Manual 372 Engine Mechanical System

Chery Automobile Co., Ltd

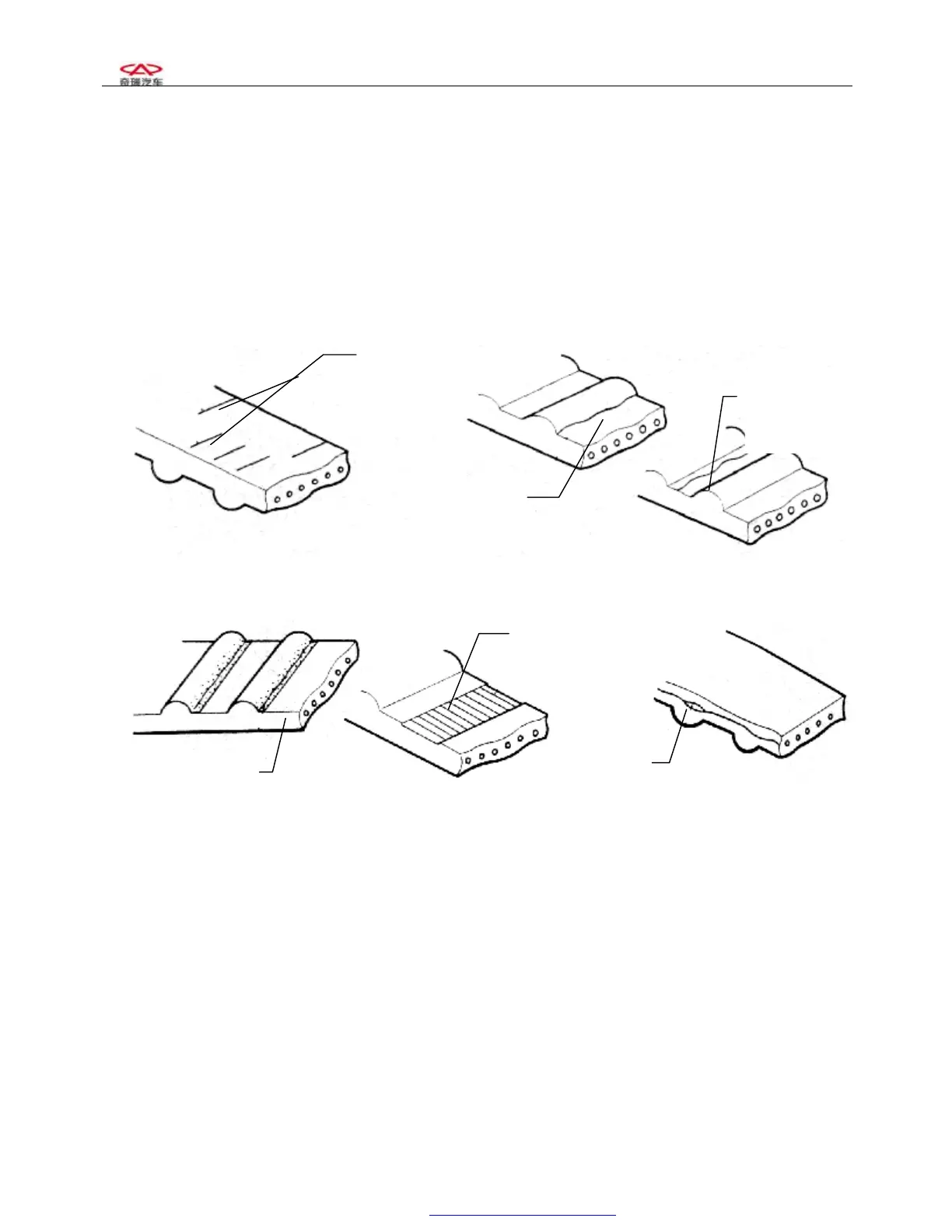

3 Make careful and detailed checks on the timing belt. Replace with new parts if any of the

conditions shown in the figure occurs.

3.1Cracks on the back side rubber;

3.2Cracks of teeth roots, cracks clearing off the fabric lining layer;

3.3Tears and wears of fabric lining layer, missing rear teeth, broken teeth, etc.

3.4 Abnormal tears and wears on belt sides

Chap

Tears and

wears

Abnormal

tears and wears

MIS

Drop-off

of belt core
