2. Assembling of the oil pump pressure relief valve and
split pins
Attention The split pins are not reusable.
3. The marks of the exterior and interior gears of the
lubricating oil pump should be on the visible side when
being assembled into the pump body.
4 The new weather seal should be put inside the oil pump
cover groove.

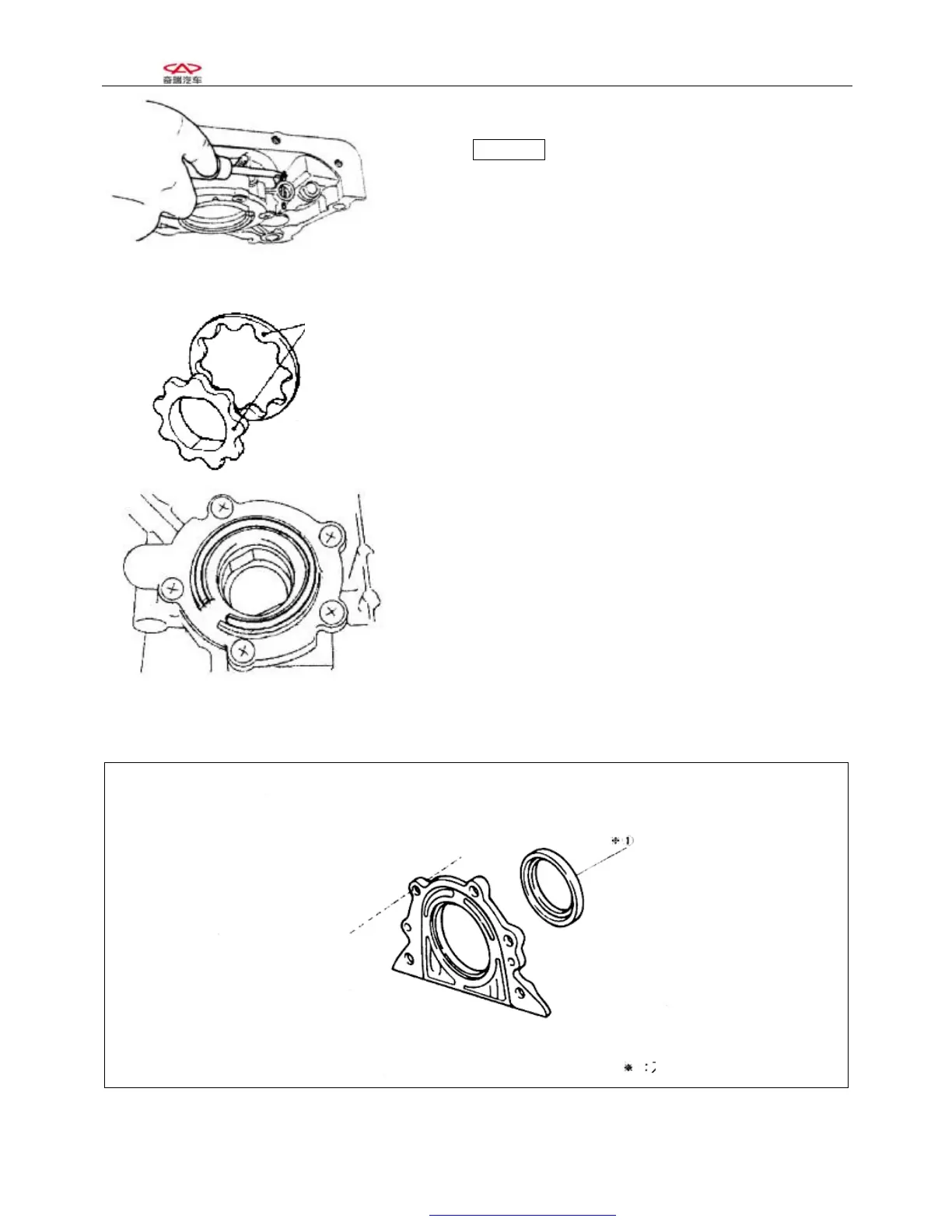

6-5 Disintegratin and assembling of oil seal
6-5-1 Configuration diagram
标识
Non-reusable part
Mark
