SQR7080 Service Manual 372 Engine Mechanical System
Chery Automobile Co., Ltd
SST

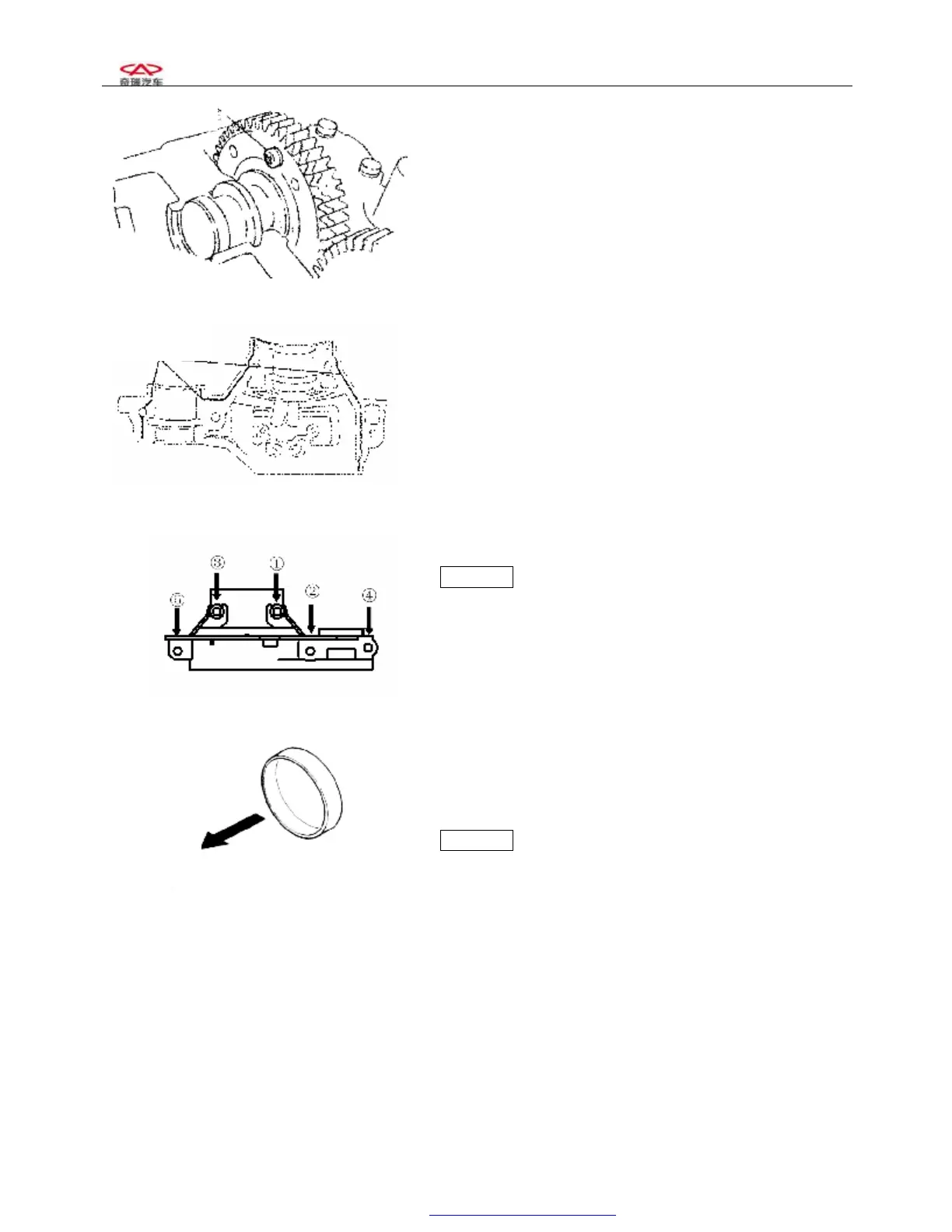

5 installation of camshaft head cap
Smear the fluid sealant on the camshaft head cap section
(with oil groove) shown as the right figure.
Tighten the bolts according to the sequences shown as
the right figure with the specified torques.
6 After smearing oil in the plug cap hole and assembling
surface of the plug, use SST to press the plug lid
Attention· Install the plug lid shown as the right
illustration.
Keep unbiased with cylinder head end surface after
pressing.
outside
7 Smear engine oil on the oil seal installation port of
cylinder head, camshaft oil seal edge of blade and
outside ring, use M10 bolt (length 50-60 mm) and SST
press the cylinder, lower 1mm than the end surface of
the cylinder4 head.
Attention ·Under the condition of use the oil seal
repeatedly, press here with engine oil adhesive agent
- The oil seal should not be pressed inclining to one side.
8 Installation of the timing gear of camshaft
After smearing the fluid sealant, use SST to prevent
rotating, tighten the timing gear bolt of camshaft
according to regulated torque of 100±5N.m.
Sealing line
