Headlamp Aiming
The headlamp aiming system has
been preset at the factory.
If the vehicle is damaged in an
accident, the aim of the headlamps
may be affected and adjustment
may be necessary.
It is recommended that a dealer
adjust the headlamps. To re-aim
the headlamps yourself, use the
following procedure.
The vehicle should be properly
prepared as follows:
.
The vehicle should be placed so
the headlamps are 7.6 m (25 ft)
from a light‐colored wall.
.
The vehicle must have all four
tires on a level surface which is
level all the way to the wall.
.
The vehicle should be placed so
it is perpendicular to the wall or
other flat surface.
.
The vehicle should not have any
snow, ice, or mud on it.
.
The vehicle should be fully
assembled and all other work
stopped while headlamp aiming
is being performed.
.
The vehicle should be normally
loaded with a full tank of fuel and
one person or 75 kg (160 lbs)
sitting on the driver seat.
.
Tires should be properly inflated.
Headlamp aiming is done with the
vehicle's low-beam headlamps.
The high-beam headlamps will be
correctly aimed if the low-beam
headlamps are aimed properly.
To adjust the vertical aim:
1. Open the hood. See Hood on
page 10‑9 for more information.

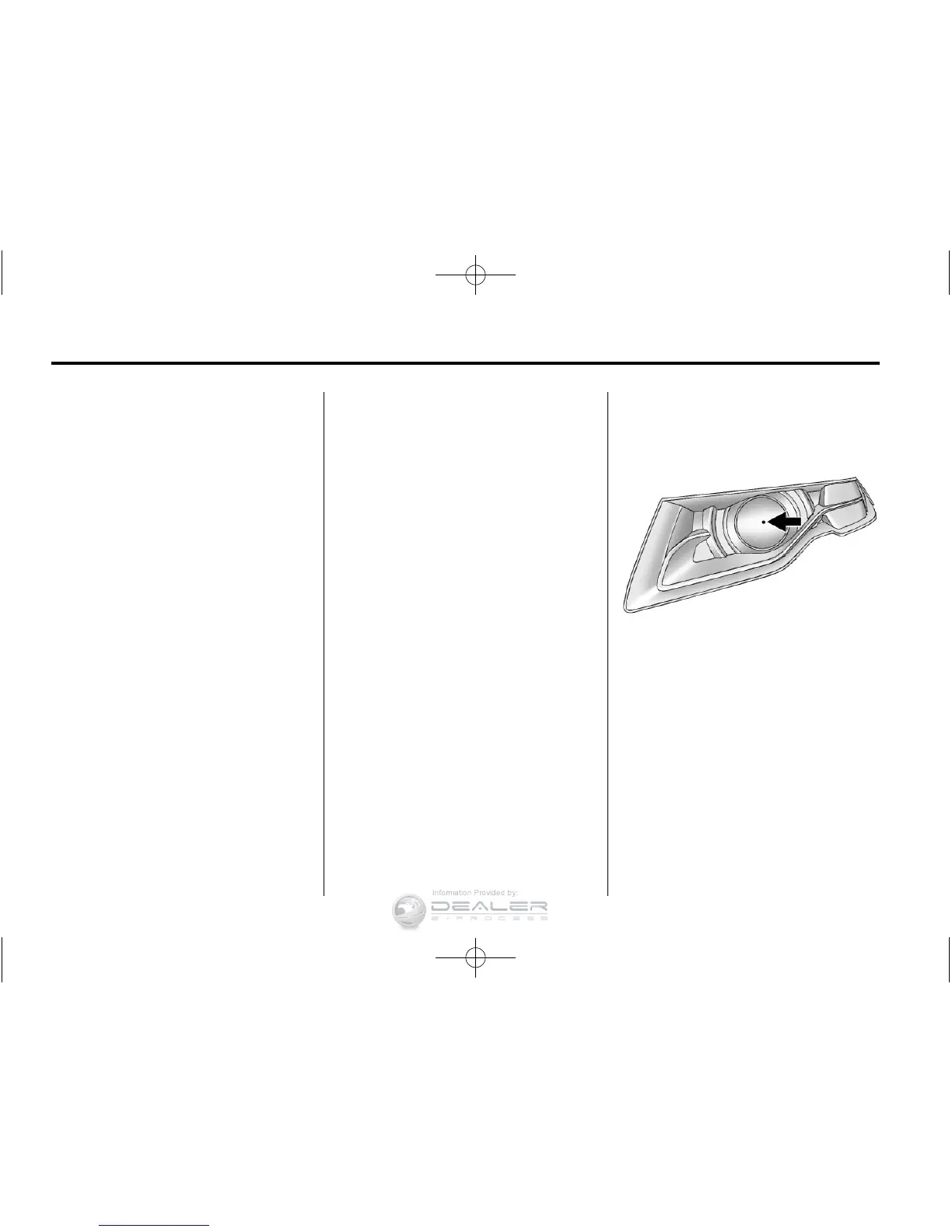

2. Locate the aim dot on the lens of
the low‐beam headlamp.
3. Measure the distance from the
ground to the aim dot on the
low‐beam headlamp. Record
the distance.
