10-42 Vehicle Care
Instrument Panel Fuse
Block (Left Side)
The instrument panel fuse block
is on the driver side end of the
instrument panel. To access the
fuses, open the fuse panel door
by pulling out.
To reinstall the door, insert the
bottom tab first, then push the
door back into its original location.

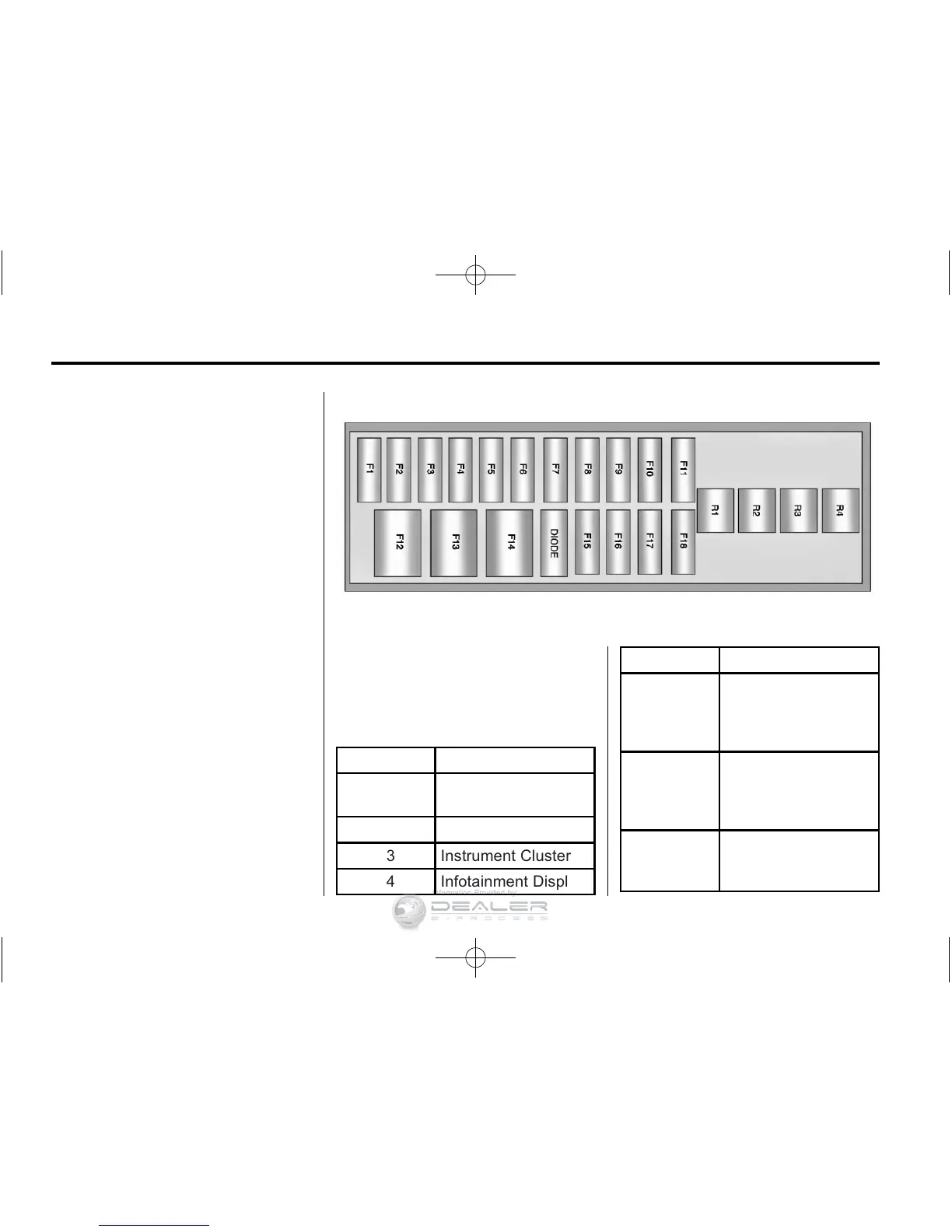

Instrument Panel Fuse Block
A fuse puller is located in the engine
compartment fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Fuses Usage
F1
Power Outlet – Top
of IP Storage Bin
F2 Radio
F3 Instrument Cluster
F4 Infotainment Display
Fuses Usage
F5
Heating, Ventilation
& Air Conditioning/
Integrated Center
Stack Switches
F6
Airbag (Sensing
Diagnostic Module/
Passenger Sensing
Module)
F7
Data Link
Connector 1/Data
Link Connector 2
