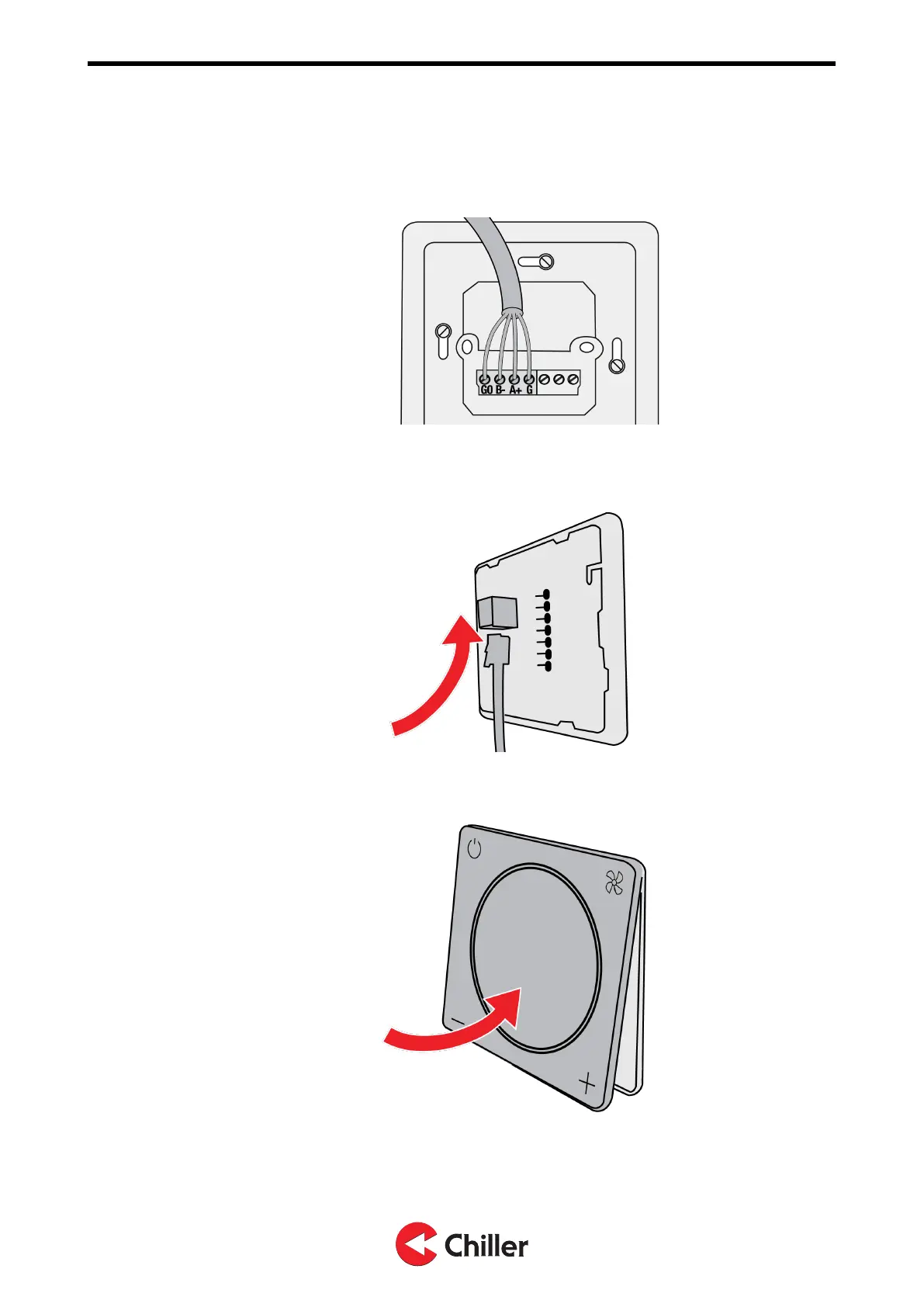

5. Connect the cables to the controller.
a. Option 1: Connect wiring to the bottom plate using a standard
communications cable.
b. Option 2: Connect the cable directly to the controller using a premade
RJ-9 quick connector.
6. Attach the controller's display.
Copyright © 2021. All rights reserved.
18 (37)
N03104128 Rev. A VariPro Room controller – Installation and Operation Manual
