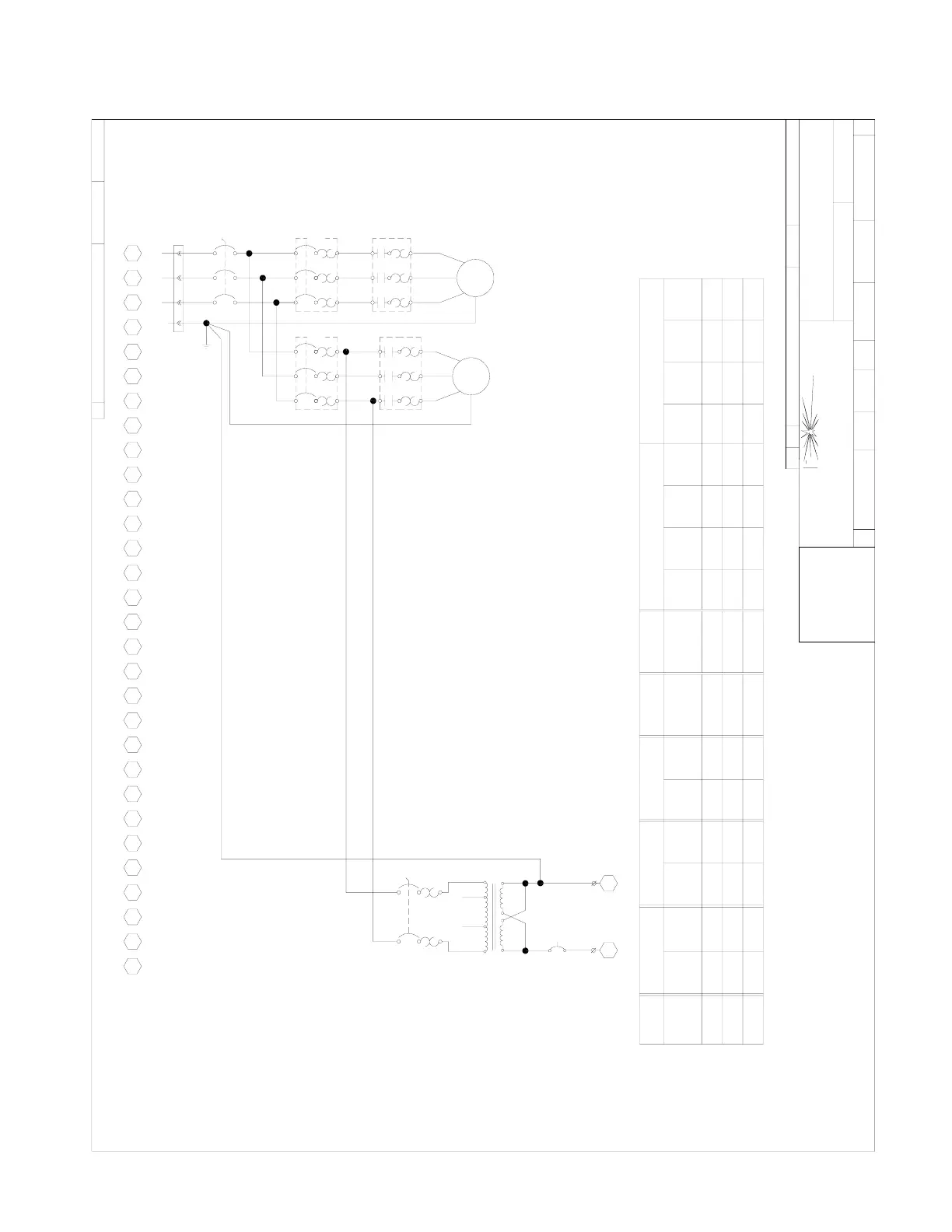

ChipBLASTER STANDARD UNIT D30-80-1 - POWER SCHEMATIC CE

ChipBLASTER Inc
44
20.0. ELECTRICAL DRAWINGS (POWER SCHEMATIC CE):
20.0
H4
1 TX
H1
H2
H3
X4
X2
X3
X1
SEE CHART
3 CB
200
SEE CHART
4 CB
100
200
COM
LINE CONNECTIONS:
380 VAC L1 TO H1, L3 TO H2
400 VAC L1 TO H1, L3 TO H3
415 VAC L1 TO H1, L3 TO H4
115 VAC
380 VAC 3 Ø 50 HZ
Chip
THIS PRINT IS THE PROPERTY OF ChipBLASTER. THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM ChipBLASTER.
Tolerances
0.0005
0.01
0.005
1/32
BREAK ALL SHARP EDGES
(NONACCUMULATIVE)
X.XX
REMOVE ALL BURRS &
X.X
BLASTER
X.XXXX X.XXX
Chip
UNIT:SIZE:
C
QTY.
CUSTOMER:
APPROVED BY:
FAX: (814)724-6287
PHONE: (814)724-6278
BLASTER
www.chipblaster.com
DRAWN BY: DATE:
TITLE:
IT.
DRAWING NUMBER:
OF
SHEET: REV:
MAT'L:
PART No.
REV
DESCRIPTION
DATE
SCALE:
NOTES
DESCRIPTION
13605 S. MOSIERTOWN ROAD
MEADVILLE, PA 16335
USA
NAME
POWER WIRING D16, D30 CE APPROVED
R.B.
16 MAY 06
D-001-CE
1A 3 A
NTS
129
126
127
128
125
124
2L3
2L1
1 CB
D16
CHART
MODEL
D30
16 A16 A
380 VAC 3 Ø 50 HZ
2 CB
16 A 16 A
2L1
2L3
2L2
1L3
123
122
121
120
117
118
119
116
115
110
114
113
112
111
109
108
107
106
SEE CHART
L1
L2
PE
L3
380 VAC
3 Ø
50 HZ
101
105
104
102
103
100
1L2
22
3
L3
3
2CB
1L2
1L1
SEE CHART
1L3
1L3
L1
11
L2
1 DS
1CB
1L1
1L2
1L1
FRAME
SIZE
120 VAC 1 Ø
50 HZ
4 A
3 CB
380 VAC 3 Ø 50 HZ
4 A
4A
250VA (CE)
4 CB 1 TX
VA
4A
250VA (CE)
3T3
184T5
FRAME
SIZE
HP
1MTR
MAIN PUMP
213T
7.5
16.5 A
380 VAC
FLA
HP
9.5 A 1
1 MTR
1T2
MAIN PUMP
SEE CHART
3 MTR
MR 3
3T2
3T1
1T3
RETURN PUMP
SEE CHART
MR 1
1T1
1.4 A
RETURN PUMP
3MTR
380 VAC
FLA
1.4 A
PE
200 VAC
3 Ø 50 HZ
20 A 25 A
200 VAC
3 Ø 50 HZ
16 A 16 A
200 VAC
3 Ø 50 HZ
5 A 5 A
200 VAC
3 Ø 50 HZ
200 VAC
3 Ø 50 HZ
2.7 A 2.7 A
13 A 13 A
