ChipBLASTER STANDARD UNIT D30-80-1 - 22.2. CONTROL PANEL - FRONT

ChipBLASTER Inc
61
22.0. MECHANICAL ASSEMBLY (Cont.):

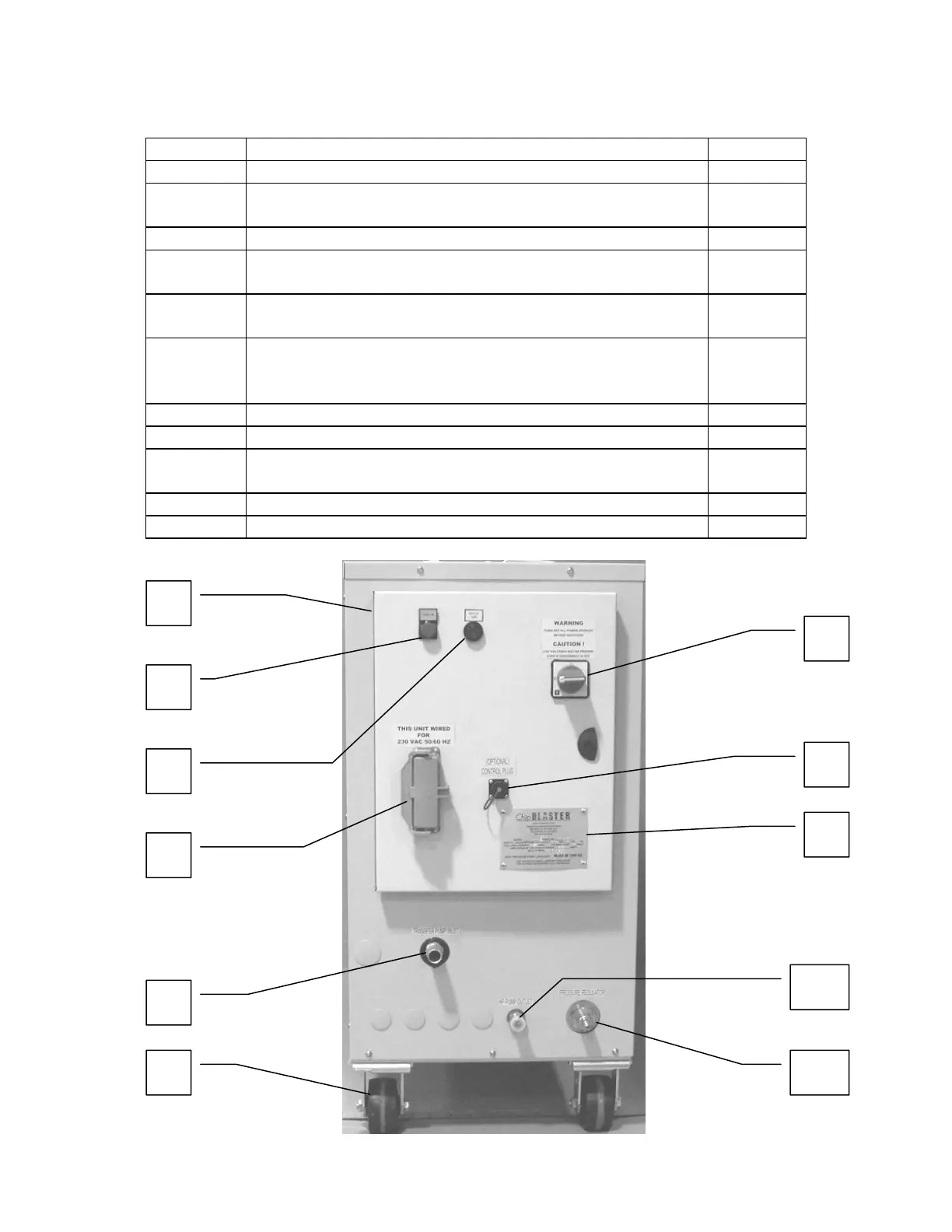

22.2. CONTROL PANEL - FRONT
ITEM No. DESCRIPTION PART No.
1 CONTROL ENCLOSURE 6075
2 POWER ON INDICATOR LIGHT 5753
+ 5997
3 DIRTY FILTER ALARM HORN 2650
4 12 PIN P & C INTERFACE RECEPTACLE 5808
+ 5809
5 ChipBLASTER DATA NAMEPLATE – STD
ChipBLASTER DATA NAMEPLATE – CE
661
762
6 OPTIONAL 9 PIN CONTROL INTERFACE
RECEPTACLE
5146
+ 5149
+ 5150
7 DISCONNECT SWITCH 6077
8 RETURN (TRANSFER) PUMP INLET (HOSE BARB) 6022
9 CASTER – RIGID
CASTER - SWIVELING
9069
9070
10 RELIEF VALVE (REGULATOR) 4546
11 HIGH PRESSURE OUTLET 4214
3
6
5
22.2
1
2
4
7
11
10
8
9
