ChipBLASTER STANDARD UNIT D30-80-1 - 22.7. FILTER ASSEMBLY

ChipBLASTER Inc
66
22.0 MECHANICAL ASSEMBLY (Cont.):

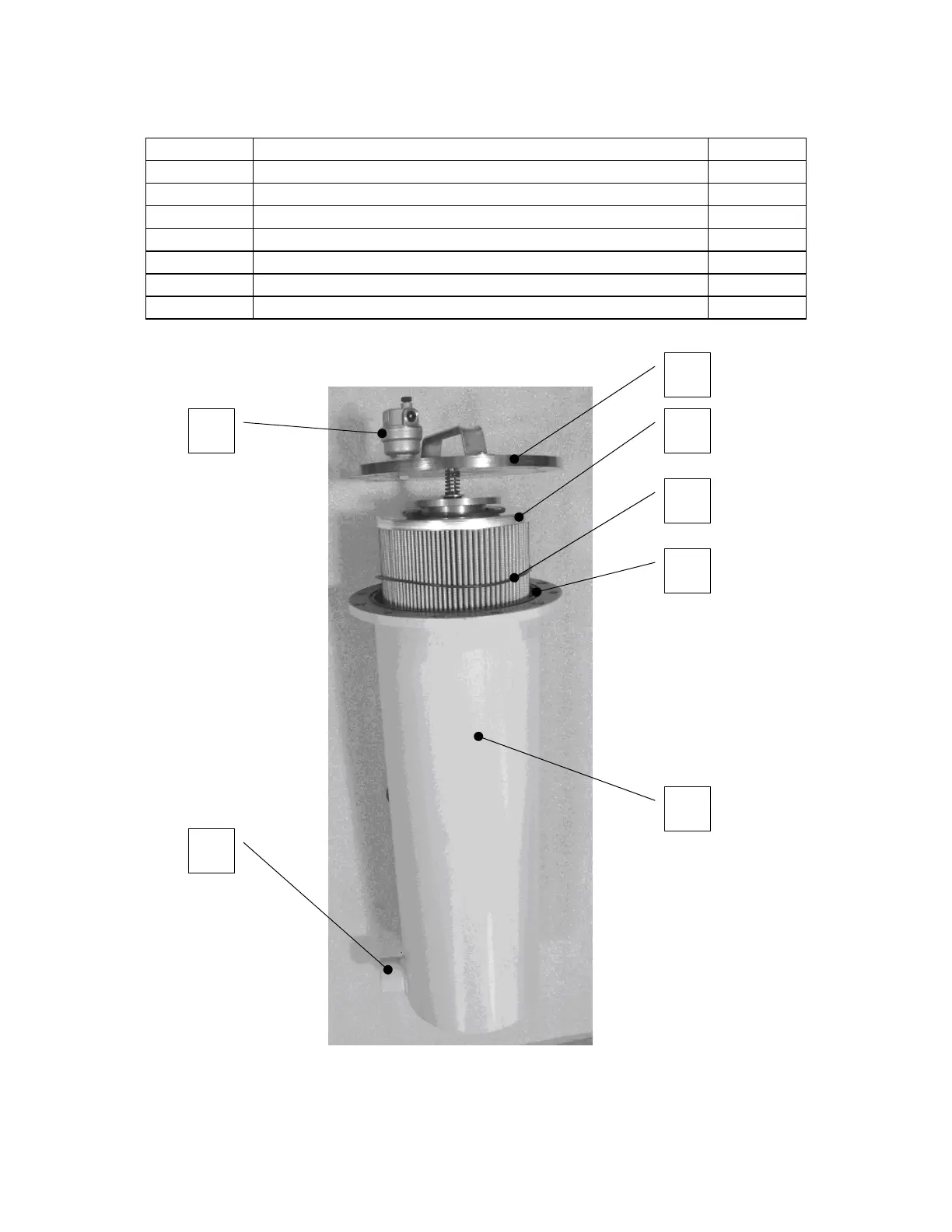

22.7. FILTER ASSEMBLY:
ITEM No. DESCRIPTION PART No.
1 FILTER LID WITH HOLD DOWN ASSEMBLY 3208A
2 FILTER CARTRIDGE (10 µM) 3015-10
3 O-RING SEAL (DISPLACED FROM GROOVE) 572
4 O-RING GROOVE N/A
5 FILTER HOUSING 3207
6 FILTER INLET N/A
7 VENT VALVE (INCL W/ LID ASSY) 5543
22.7
1
2
3
4
5
6
7
