ChipBLASTER STANDARD UNIT D30-80-1 - 22.3. CONTROL PANEL - INSIDE ENCLOSURE

ChipBLASTER Inc
62
22.0. MECHANICAL ASSEMBLY (Cont.):

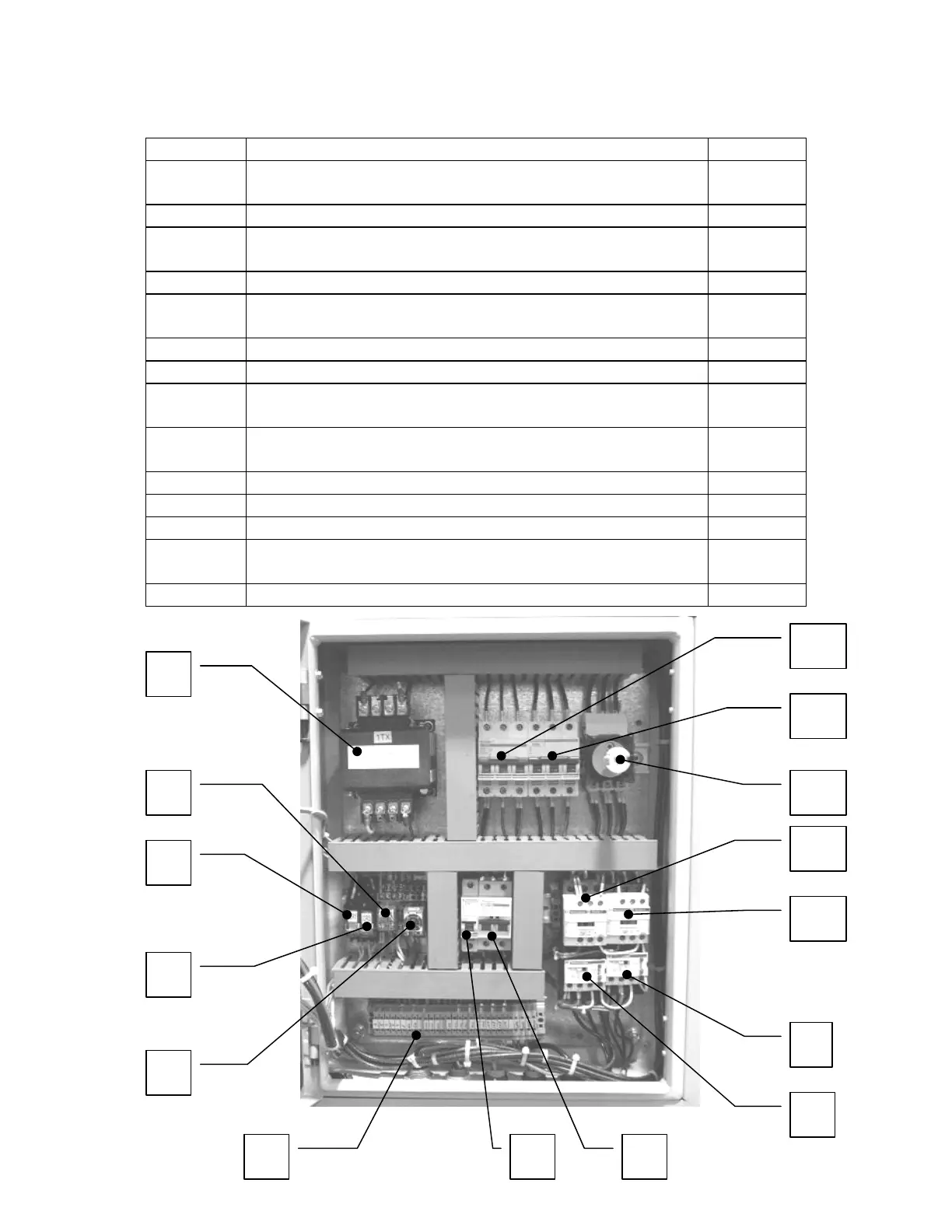

22.3. CONTROL PANEL – INSIDE ENCLOSURE
ITEM No. DESCRIPTION PART No.
1 TRANSFORMER 250VA (STD)
TRANSFORMER 250VA (CE)
6076
5911
2 ES RELAY 5706-CSA
3 CONTROL RELAY CR1 & CR3 (120VAC)
CONTROL RELAY CR1 & CR3 (24VDC)
5909
5910
4 TIMER 1TM 5545
5 TERMINAL BLOCK 5205
+ 5206
6 CIRCUIT BREAKER 4CB 5402
7 CIRCUIT BREAKER 3CB 5466
8 OVERLOAD MR1 230V
OVERLOAD MR1 460V
5020
5017
9 OVERLOAD MR3 230V
OVERLOAD MR3 460V
4991
4992
10 CONTACTOR MR3 4990
11 CONTACTOR MR1 5015
12 DISCONNECT 1DC 6077
13 CIRCUIT BREAKER 1CB 230V
CIRCUIT BREAKER 1CB 460V
6084
5492
14 CIRCUIT BREAKER 2CB 5492
22.3
1
2
3
3
4
5 6 7
8
9
10
11
12
13
14
