22.0. MECHANICAL ASSEMBLY (Cont.):

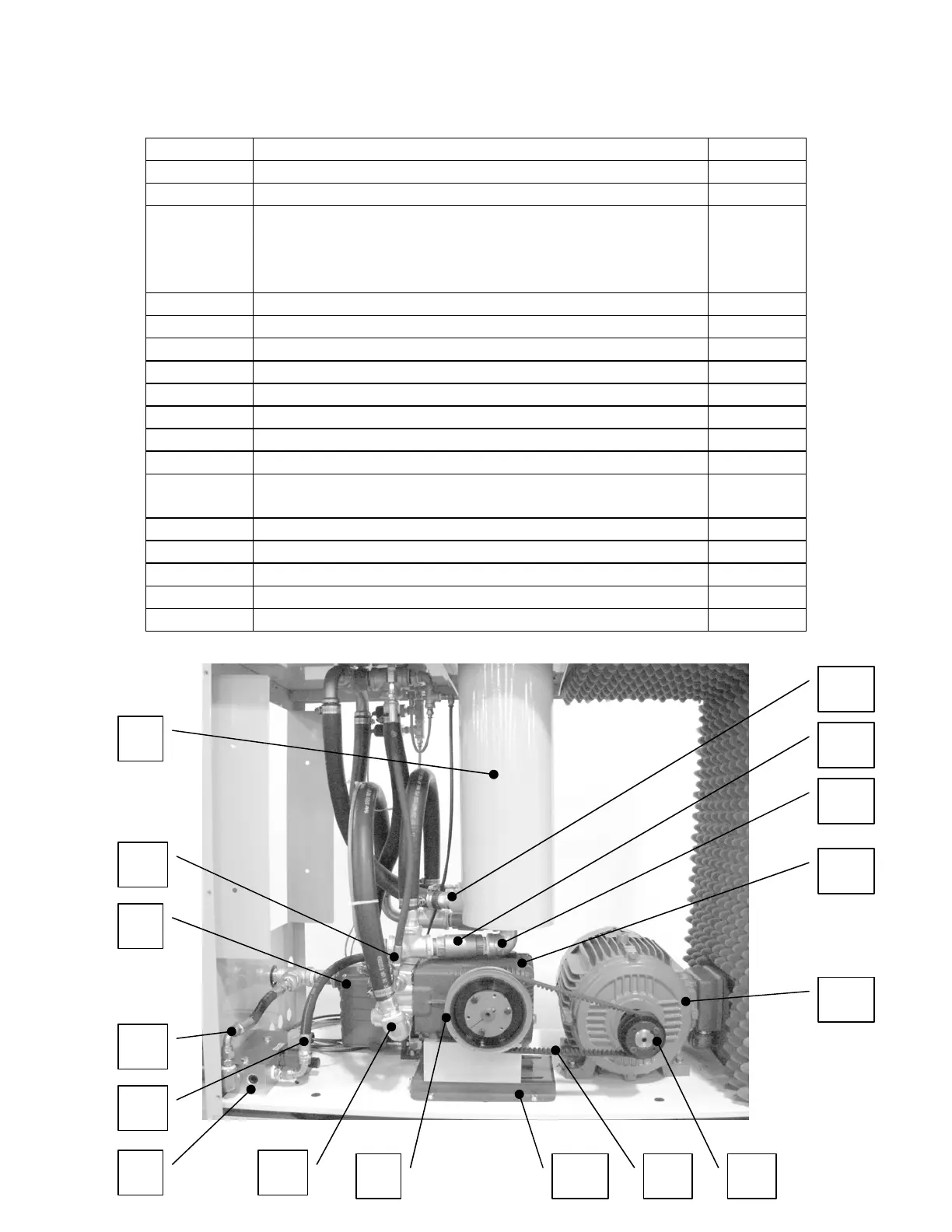

22.5. SUB PLATE ELEVATION – RIGHT SIDE
ITEM No. DESCRIPTION PART No.
1 FILTER HOUSING 3207
2 HIGH PRESSURE GAUGE FEED HOSE N/A
3 TRANSFER PUMP 60Hz – WATER
TRANSFER PUMP 60Hz – OIL
TRANSFER PUMP 50Hz – WATER
TRANSFER PUMP 50Hz – OIL
2072A
4251A
2073A
4250A
4 MANIFOLD DUMP LINE N/A
5 HP PUMP OUTLET/MANIFOLD FEED HOSE N/A
6 MANIFOLD BLOCK 8308
7 HP PUMP INLET N/A
8 PUMP PULLEY (56T) 2544
9 HP PUMP MOUNTING RAIL 8286
10 HP PUMP SLIDE BASE 2618
11 TIMING (DRIVE) BELT 2556
12 DRIVE PULLEY - STD [60HZ] (28T)
DRIVE PULLEY - CE CERTIFIED [50HZ] (32T)
2944
2595
13 MAIN PUMP MOTOR 2007
14 HIGH PRESSURE PUMP 2119
15 FILTER OUTLET N/A
16 CHECK VALVE 9527
17 FILTER INLET N/A
1
3
8 11 12
13
14
6
10
7
4
2
5
15
17
16
