22.0. MECHANICAL ASSEMBLY (Cont.):

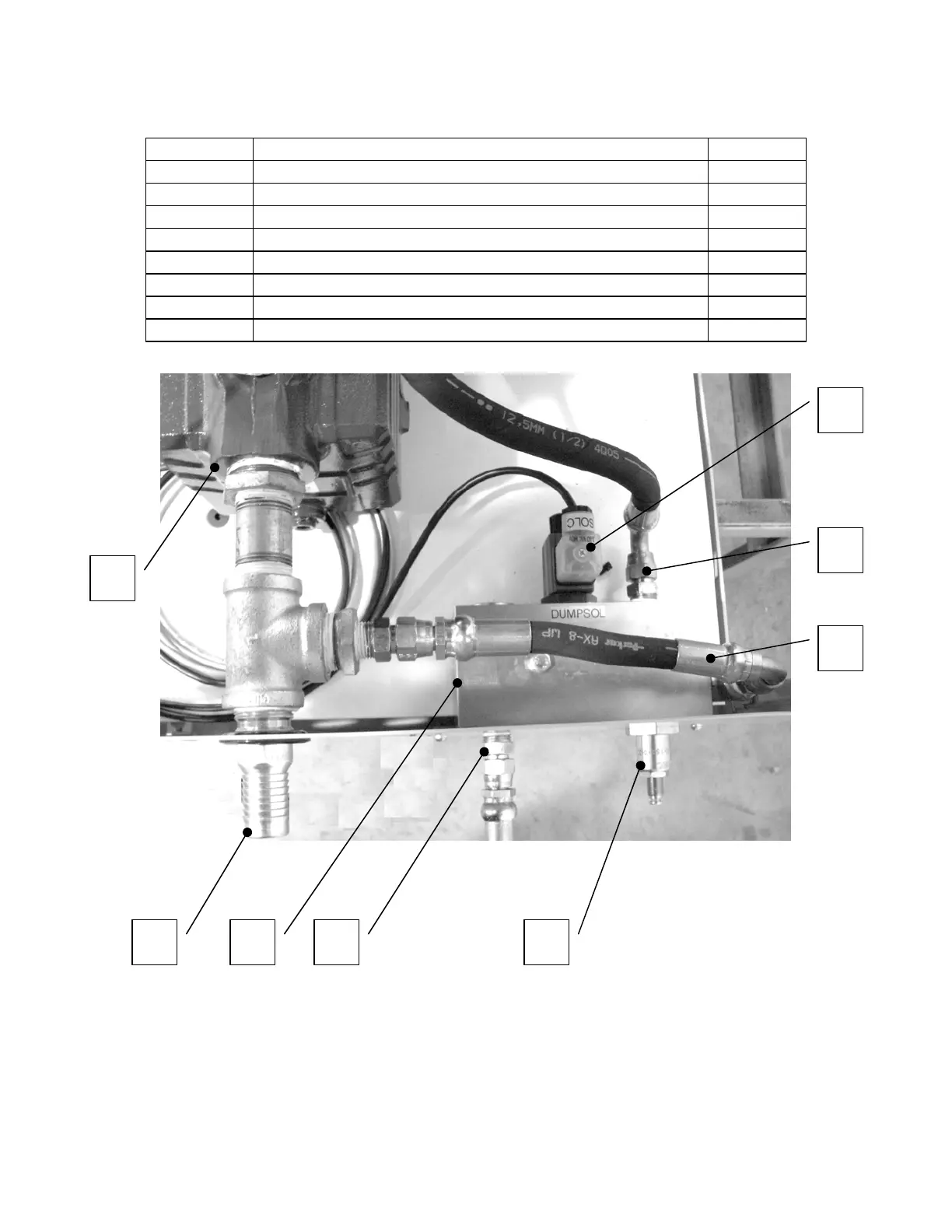

22.6. MANIFOLD BLOCK ASSEMBLY (PLAN VIEW)
ITEM No. DESCRIPTION PART No.
1 RETURN (TRANSFER) PUMP 3510
2 RETURN (TRANSFER) PUMP INLET (HOSE BARB) 6022
3 MANIFOLD BLOCK 8308
4 HIGH PRESSURE COOLANT OUTLET N/A
5 RELIEF VALVE (REGULATOR) 4546
6 DUMP LINE N/A
7 HIGH PRESSURE COOLANT MANIFOLD INLET N/A
8 SOLENOID (DUMP) VALVE “C” N.O. 4002
8
4 5
1
7
22.6
6
2 3
