22.0. MECHANICAL ASSEMBLY (Cont.):

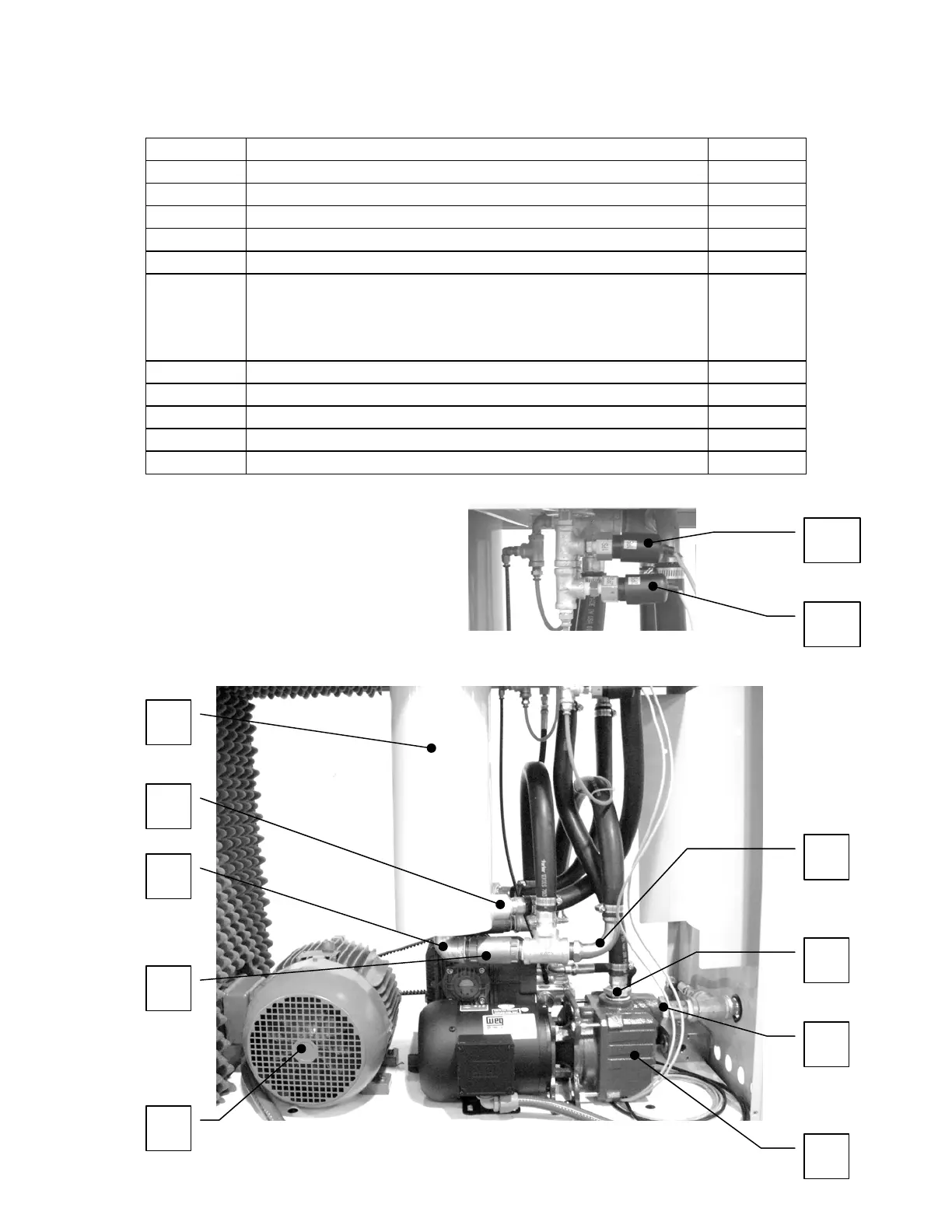

22.4. SUB PLATE ELEVATION – LEFT SIDE
ITEM No. DESCRIPTION PART No.
1 FILTER HOUSING 3207
2 FILTER INLET N/A
3 FILTER OUTLET N/A
4 CHECK VALVE 9527
5 MAIN PUMP MOTOR 2007
6
TRANSFER PUMP 60Hz – WATER
TRANSFER PUMP 60Hz – OIL
TRANSFER PUMP 50Hz – WATER
TRANSFER PUMP 50Hz – OIL
2072A
4251A
2073A
4250A
7 RETURN (TRANSFER) PUMP INLET N/A
8 RETURN (TRANSFER) PUMP OUTLET N/A
9 HP PUMP FEED LINE N/A
10 PRESSURE SWITCH 2PS (FACTORY SET @ 15 PSI) 9682
11 PRESSURE SWITCH 1PS (*RESET TO 10 PSI) *9682
1
5
22.4
7
6
8
2
3
4
10
11
}
9
