Christ Alpha 2-4 LSCplus - Layout and Mode of Operation; Functional and Operating Elements

Freeze-dryer Alpha 1-4 LSCplus
Freeze-dryer Alpha 2-4 LSCplus
2 Layout and mode of operation
Version 01/2011, Rev. 2.3 of 03/07/2017 • sb
11 / 131
Translation of the original operating manual

2 Layout and mode of operation

2.1 Layout of the freeze-dryer

2.1.1 Functional and operating elements
1 Ice condenser
chamber with an
internal ice condenser
2 User interface (see
chapter 6.5.1 - "User
interface")
3 Mains power switch

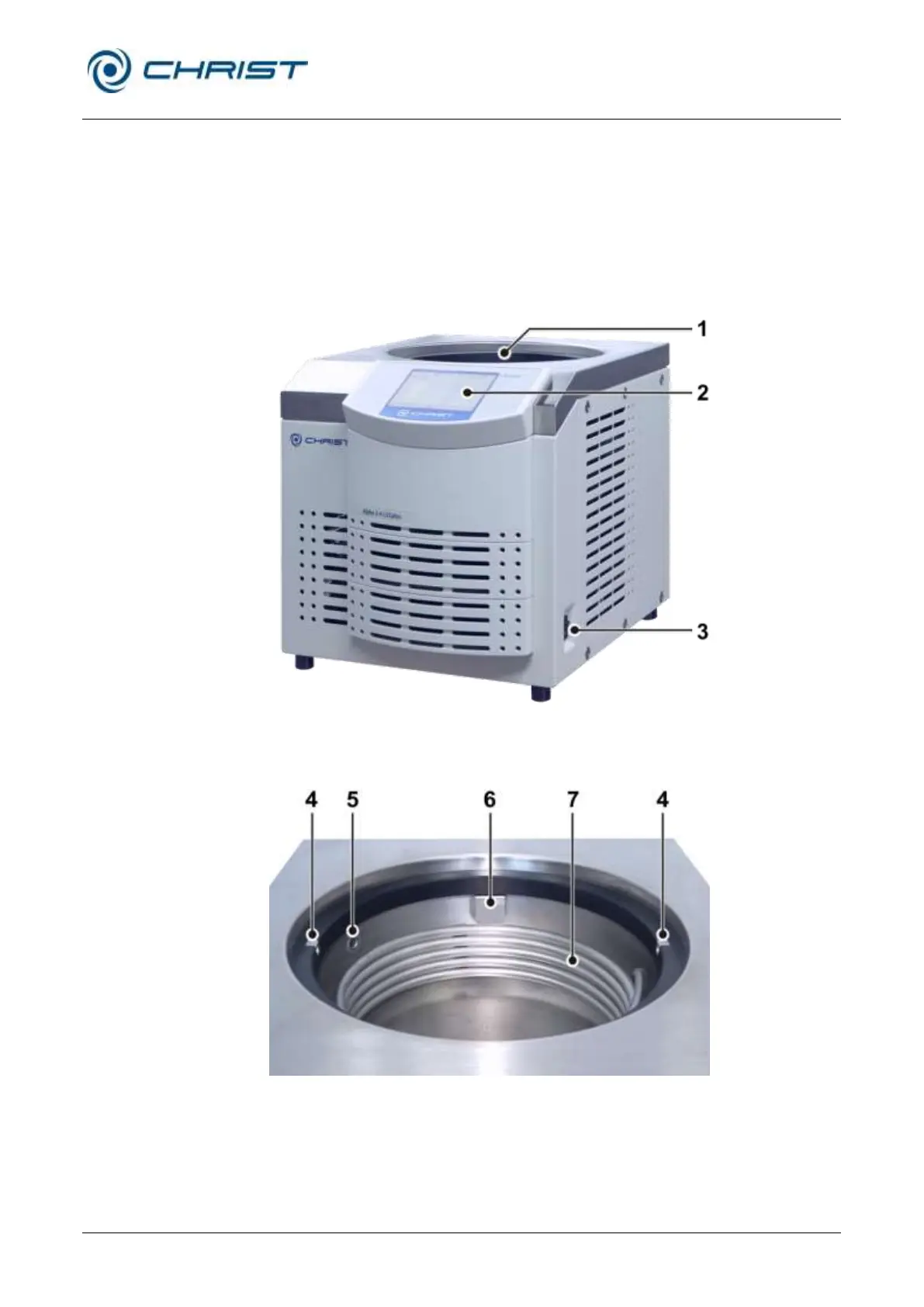

Fig. 1: Total view of the freeze-dryer
4 Contact piece
5 Vacuum sensor
6 Pipe connection of the
vacuum pump (behind
the cover plate)
7 Ice condenser
Fig. 2: Ice condenser chamber
