Freeze-dryer Alpha 1-4 LSCplus
Freeze-dryer Alpha 2-4 LSCplus
Version 01/2011, Rev. 2.3 of 03/07/2017 • sb
Translation of the original operating manual
6.5 LSCplus control system
The control system LSCplus (Lyo Screen Control plus) was specifically
developed for the control of freeze-drying processes. The clear user
interface enables the intuitive operation of the unit.

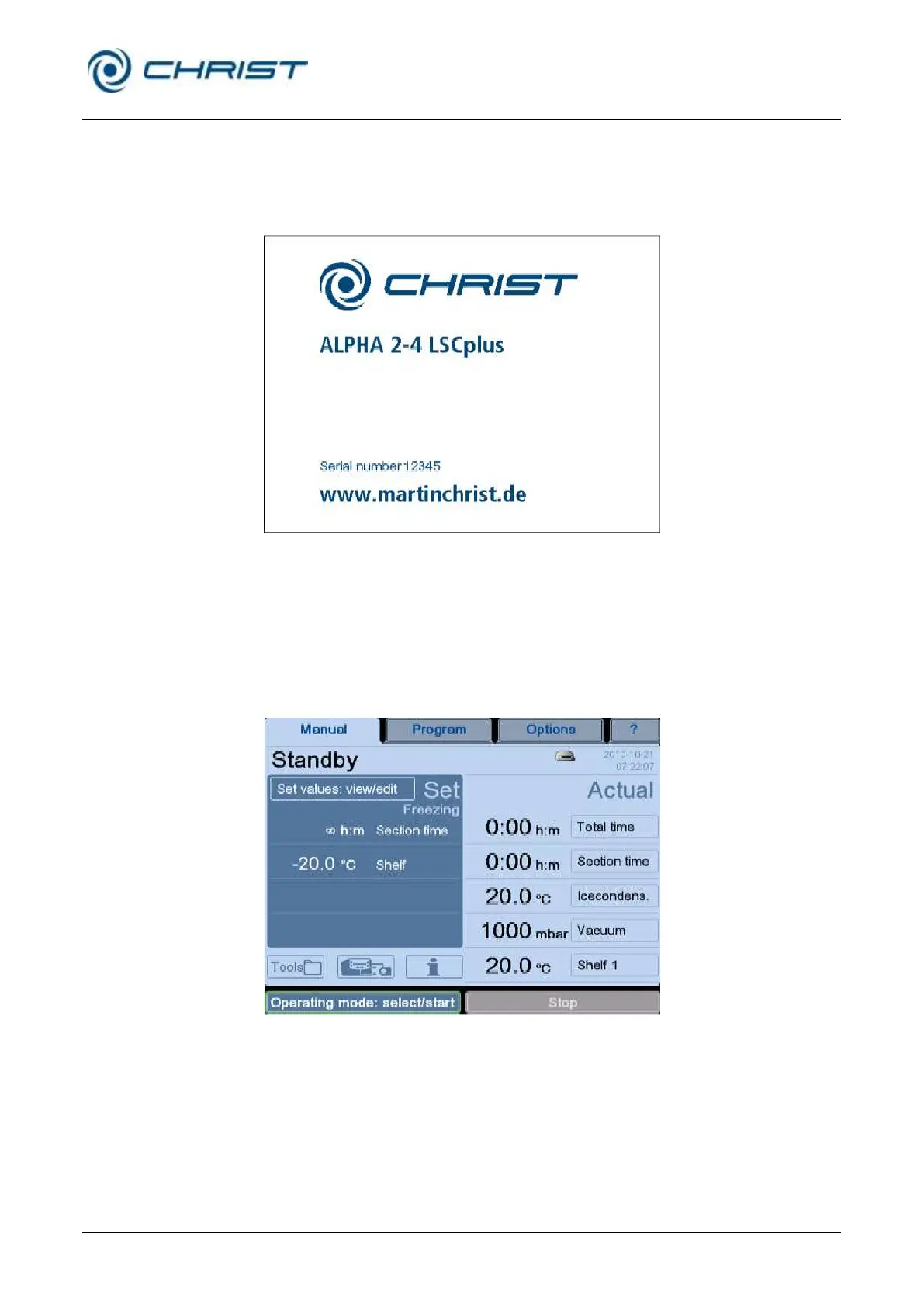

Fig. 20: Start screen of the LSCplus control unit (example)
6.5.1 User interface
The system is operated via a touch panel, i.e. by touching the buttons on
the display. Every button is marked by a frame. Pressing the button
activates the associated function. Depending on the function, a dialog box
opens, a value can be changed, or a transaction can be confirmed.
Fig. 21: Buttons are marked by a frame
