Christ Alpha 2-4 LSCplus - Name Plate

Freeze-dryer Alpha 1-4 LSCplus
Freeze-dryer Alpha 2-4 LSCplus
2 Layout and mode of operation
Version 01/2011, Rev. 2.3 of 03/07/2017 • sb
13 / 131
Translation of the original operating manual
11 Vacuum connection
12 Name plate (see
chapter 2.1.2 - "Name
plate")
13 Heat exchanger of the
refrigeration unit
14 Data interface
15 Electrical connection of
the vacuum sensor
16 Connection of the
vacuum sensor
17 Option: USB port
18 Power supply of the
vacuum pump
19 Power supply of the
pressure control valve
20 Mains fuse
21 Mains cable
22 Equipotential bonding
screw

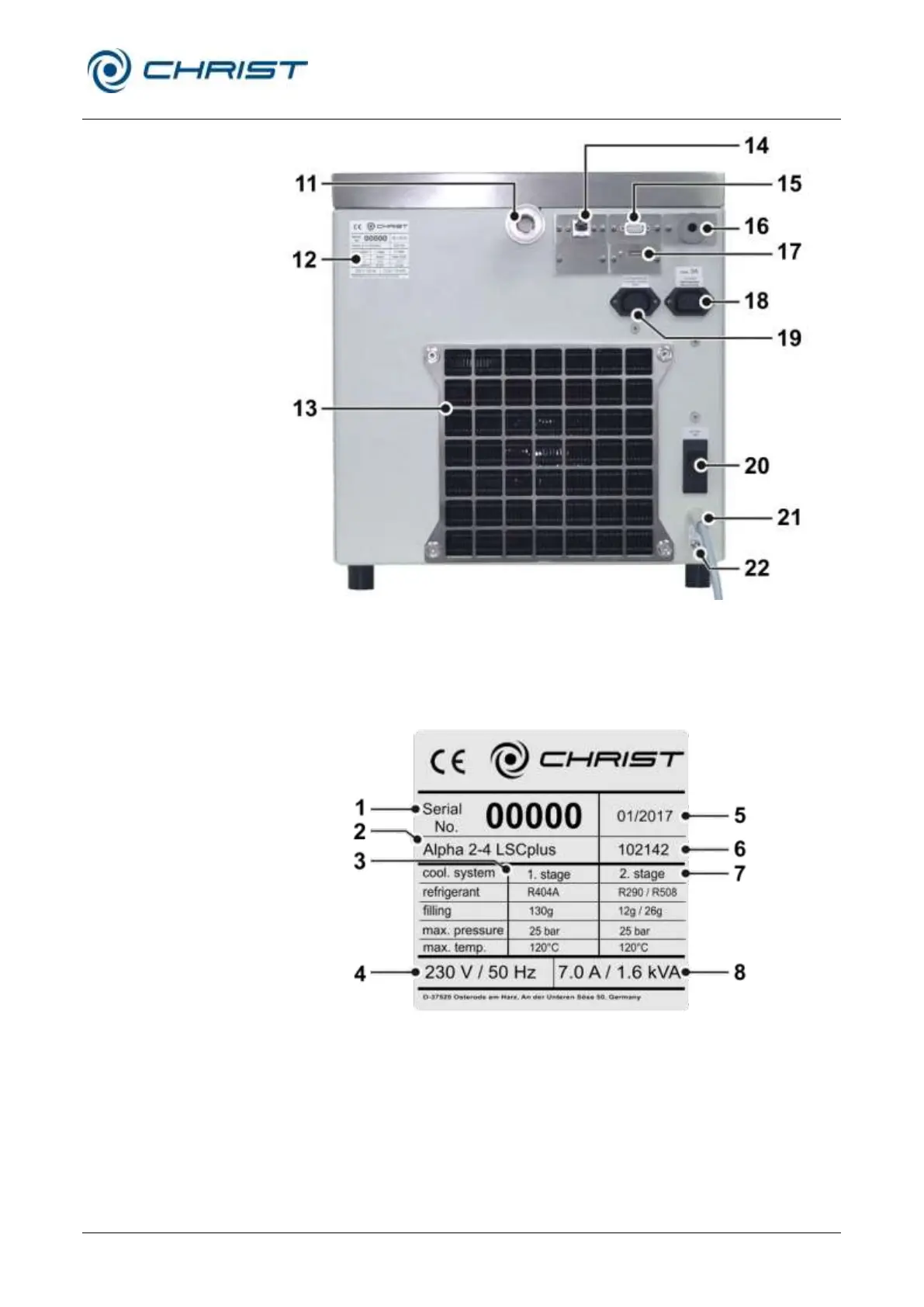

Fig. 5: Rear view of the freeze-dryer

2.1.2 Name plate
1 Serial number
2 Type
3 Refrigerant data of
the 1
st
stage
4 Nominal voltage
5 Year of manufacture
(month/year)
6 Part number
7 Refrigerant data of
the 2
nd
stage
8 Rated current /
apparent power
Fig. 6: Example of a name plate (here: Alpha 2-4 LSCplus)
