5.5 Vacuum sensor
Please refer to the separate operating manual of the vacuum sensor!
In order to protect the vacuum sensor against transport damage, it comes
supplied in its original packaging. Prior to commissioning the freeze-dryer,
the sensor must be installed.
1 Vacuum sensor
2 Clamping rings
3 Connection socket

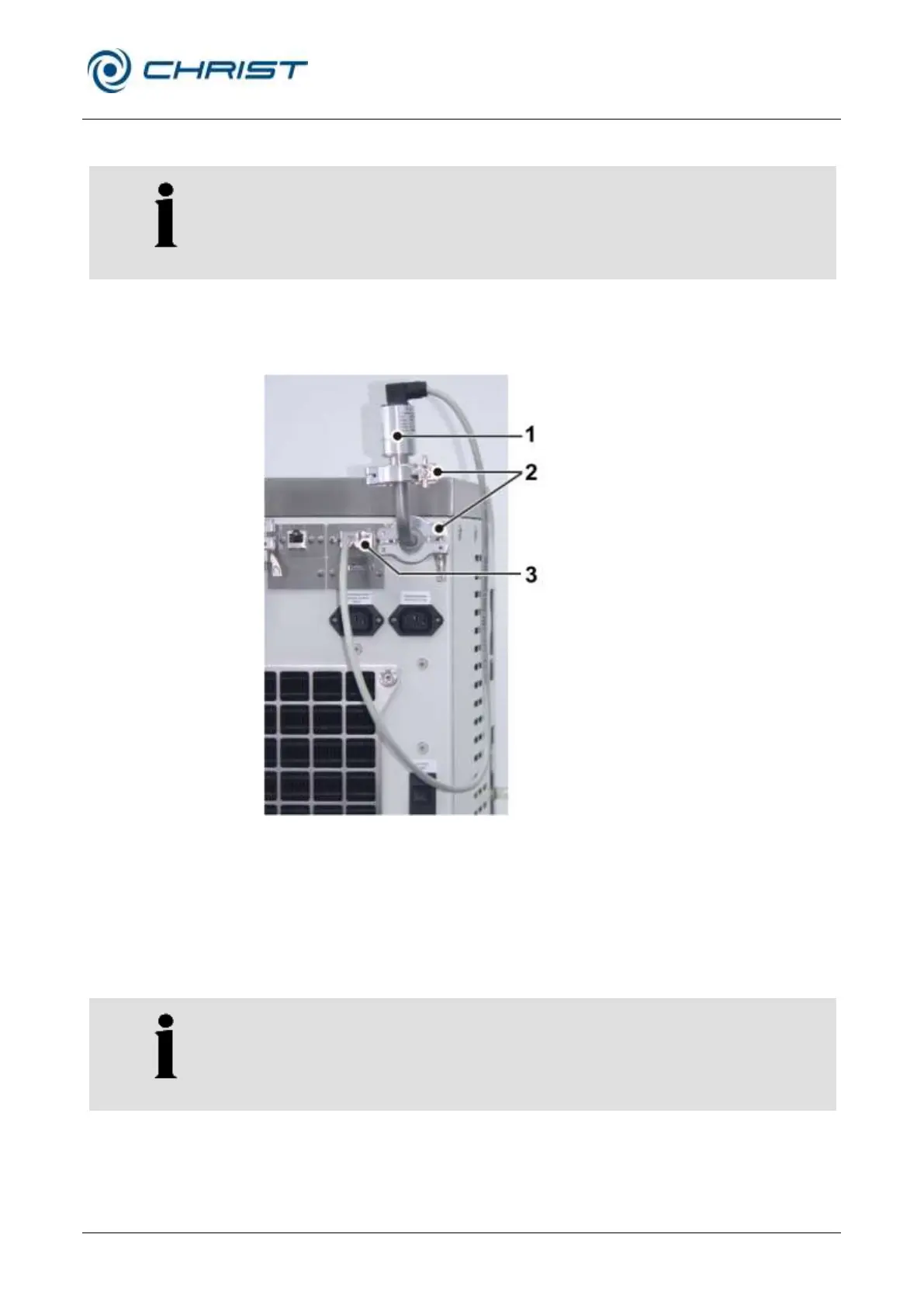

Fig. 14: Position of the vacuum sensor and the connection socket
• Switch the unit off by actuating the mains power switch.
• Take the vacuum sensor out of its original packaging and fasten it to the
connector with a bow-shaped connecting piece, two clamping rings
(DIN16KF) and two centring rings (included in the scope of supply).
• Plug the connector to the connection socket and hand-tighten the
screws on the connector.
It is absolutely essential to comply with the manufacturer’s instructions in
the separate operating manual of the vacuum sensor!
