Christ Alpha 2-4 LSCplus - Brief Operating Instructions

Freeze-dryer Alpha 1-4 LSCplus
Freeze-dryer Alpha 2-4 LSCplus
11 Appendix
Version 01/2011, Rev. 2.3 of 03/07/2017 • sb
97 / 131
Translation of the original operating manual

11.2 Brief operating instructions

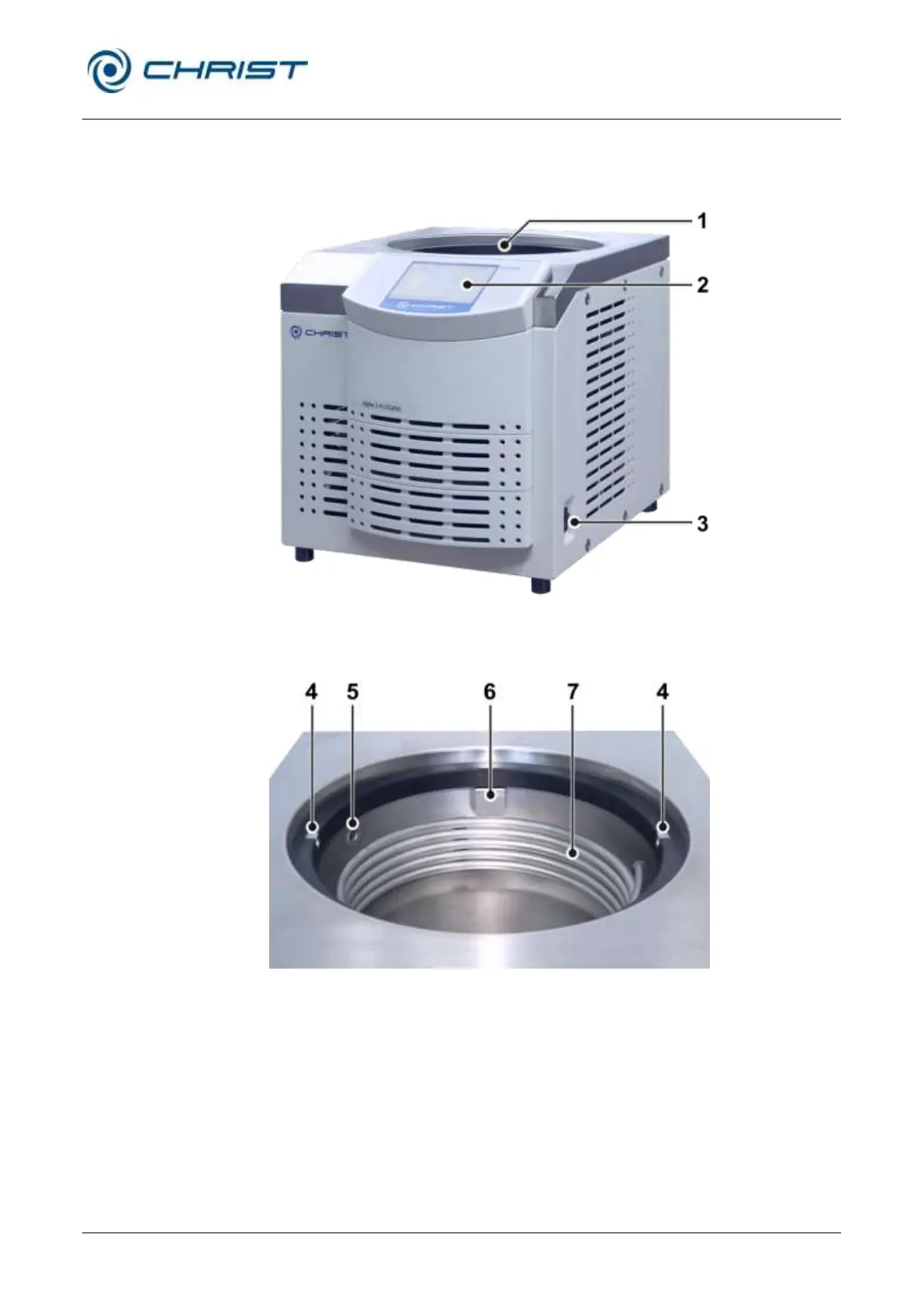

Functional and operating elements
1 Ice condenser
chamber with an
internal ice condenser
2 User interface
3 Mains power switch
Fig. 75: Total view of the freeze-dryer
4 Contact piece
5 Vacuum sensor
6 Pipe connection of the
vacuum pump (behind
the cover plate)
7 Ice condenser
Fig. 76: Ice condenser chamber
