8 Aeration valve
9 Media drain valve

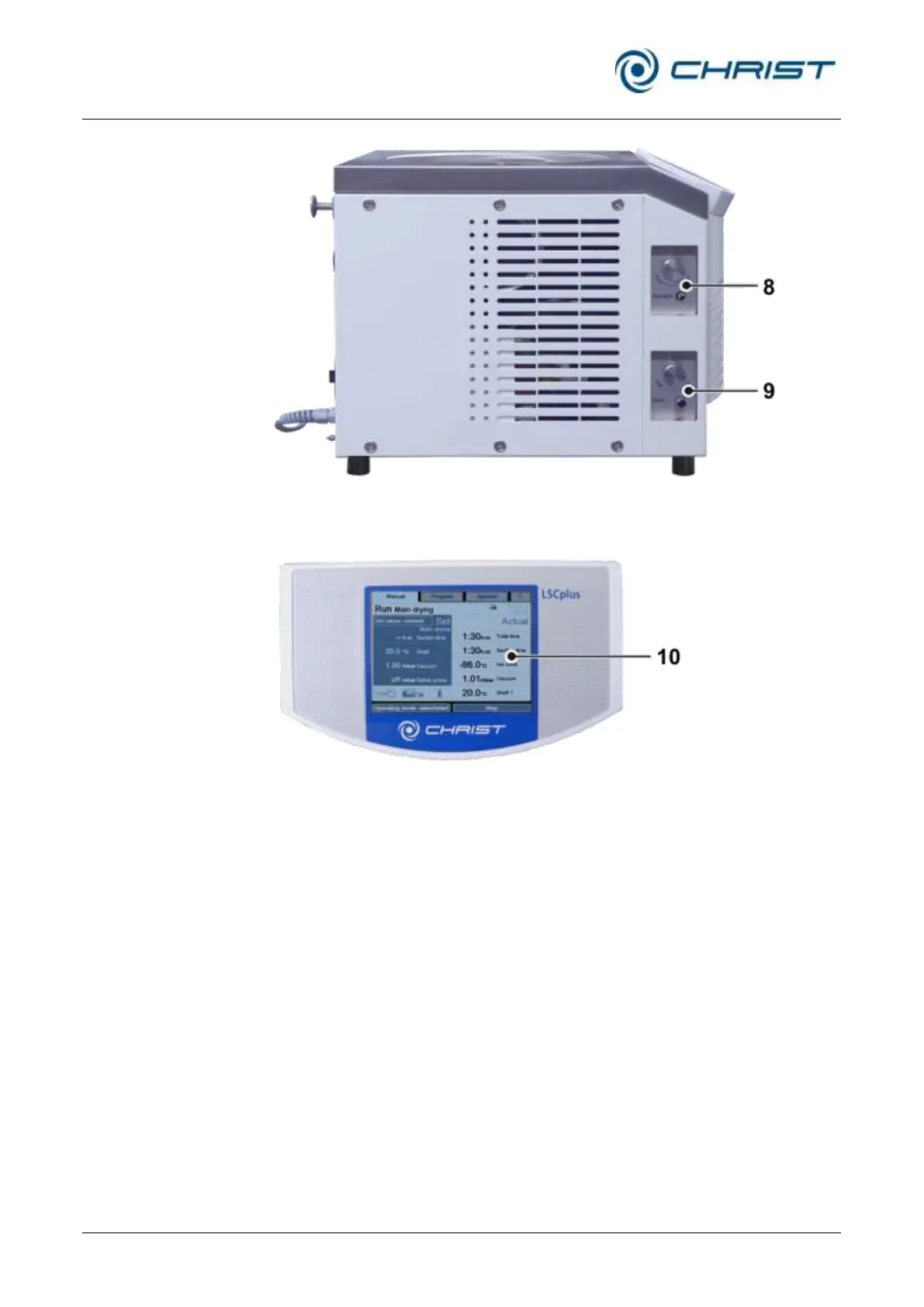

Fig. 77: Left side of the freeze-dryer
10 Touchpanel
Fig. 78: User interface with touchpanel
