Freeze-dryer Beta 1-8 LSCbasic
Freeze-dryer Beta 2-8 LSCbasic
2 Layout and mode of operation
Version 03/2018, Rev. 1.5 of 09/03/2020 • sb-dc
15 / 107
Translation of the original operating manual
10 Heat exchanger of
the refrigeration
unit
11 Name plate (see
chapter 2.1.2 -
"Name plate")
12 Vacuum
connection
13 Serial interface
14 Electrical
connection of the
vacuum sensor
15 Connection of the
vacuum sensor
16 Power supply of
the pressure
control valve
17 Power supply of
the vacuum pump
18 Mains fuse
19 Mains cable
20 Equipotential
bonding screw

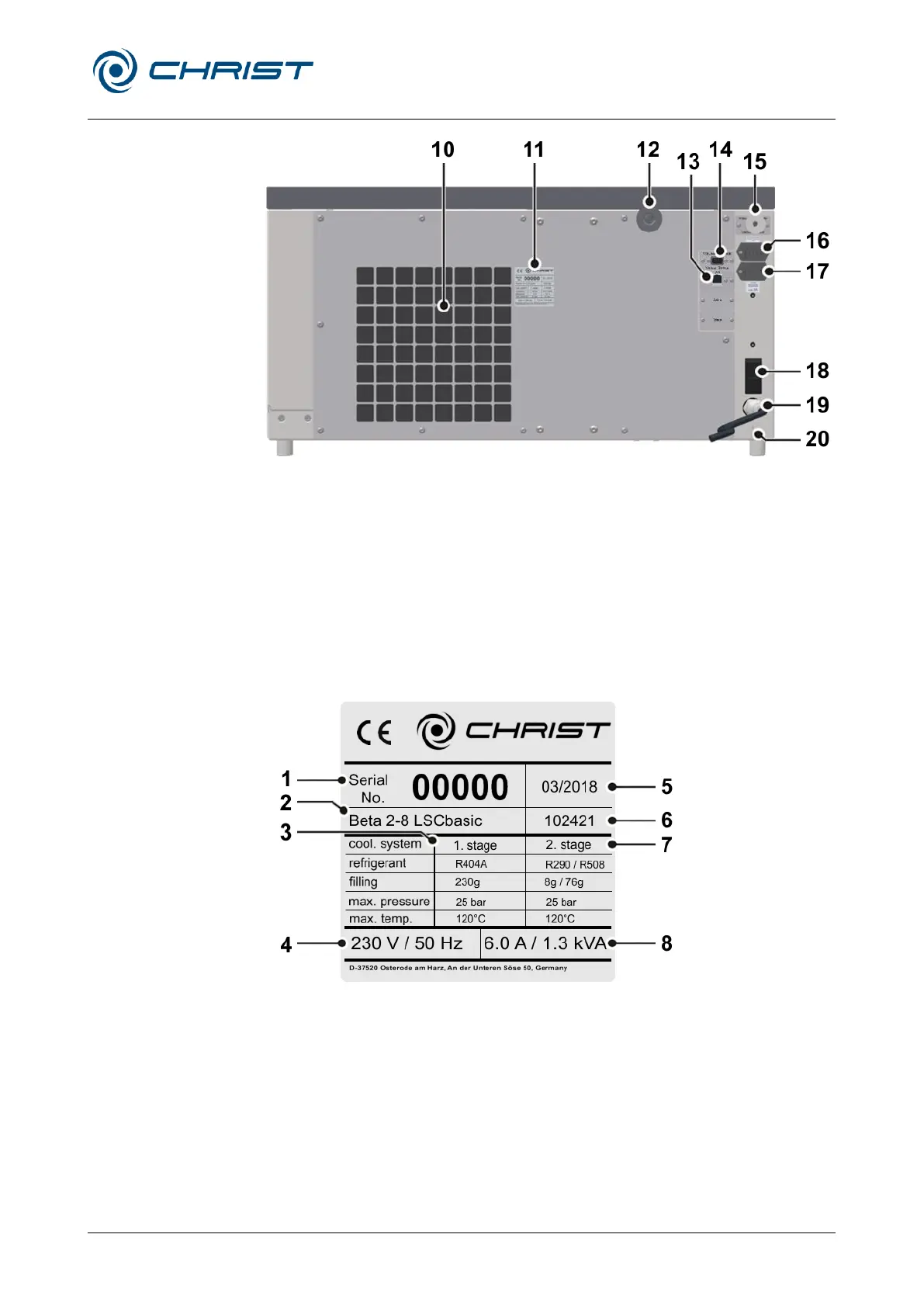

Fig. 5: Rear view of the freeze-dryer
→
2.1.2 Name plate
1 Serial number
2 Type
3 Refrigerant data of
the 1
st
stage
4 Nominal voltage
5 Year of manufacture
(month/year)
6 Part number
7 Refrigerant data of
the 2
nd
stage
8 Rated current /
apparent power
Fig. 6: Example of a name plate
