5.7 Pressure control valve
The pressure control valve is integrated in the suction pipe between the
vacuum pump and ice condenser chamber. During certain, specified
process phases, it interrupts the volume flow to the vacuum pump (see
chapter 2.2.1 - "General information on freeze-drying")
CAUTION
Observe the installation direction of the pressure control valve (see
figure)!
1 Connection to the
vacuum pump
2 Pressure control
valve

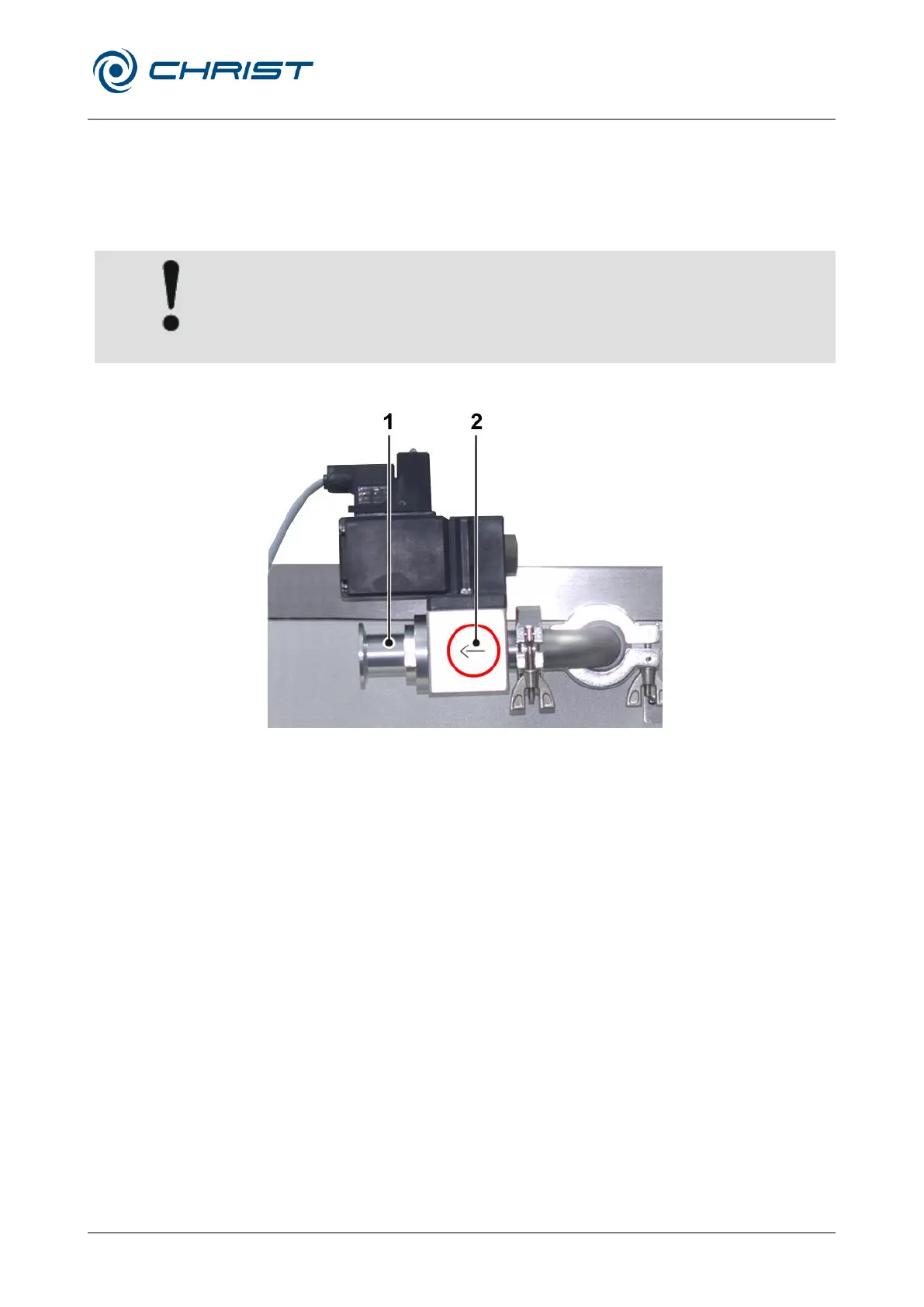

Fig. 14: Installation of the pressure control valve
